Green Grounding

Screw (E)

Headless

screw (D)

Mounting Screw (B)

Wire Nut (C)

Lock Nut (F)

Cross Bar (A)

Bolt Nut (H)

Fixture Grounding Wire

House Grounding Wire

Green Grounding Screw (E)

Wire Nut (C)

Mounting Screw (B)

Headless Screw (D)

Outlet Box

Fixture Wire

Lock Nut (F)

Back Plate

Fixture

LED

Bolt Nut (H)

Rubber Pad (G)

Cross Bar (A)

Rubber Pad (G)

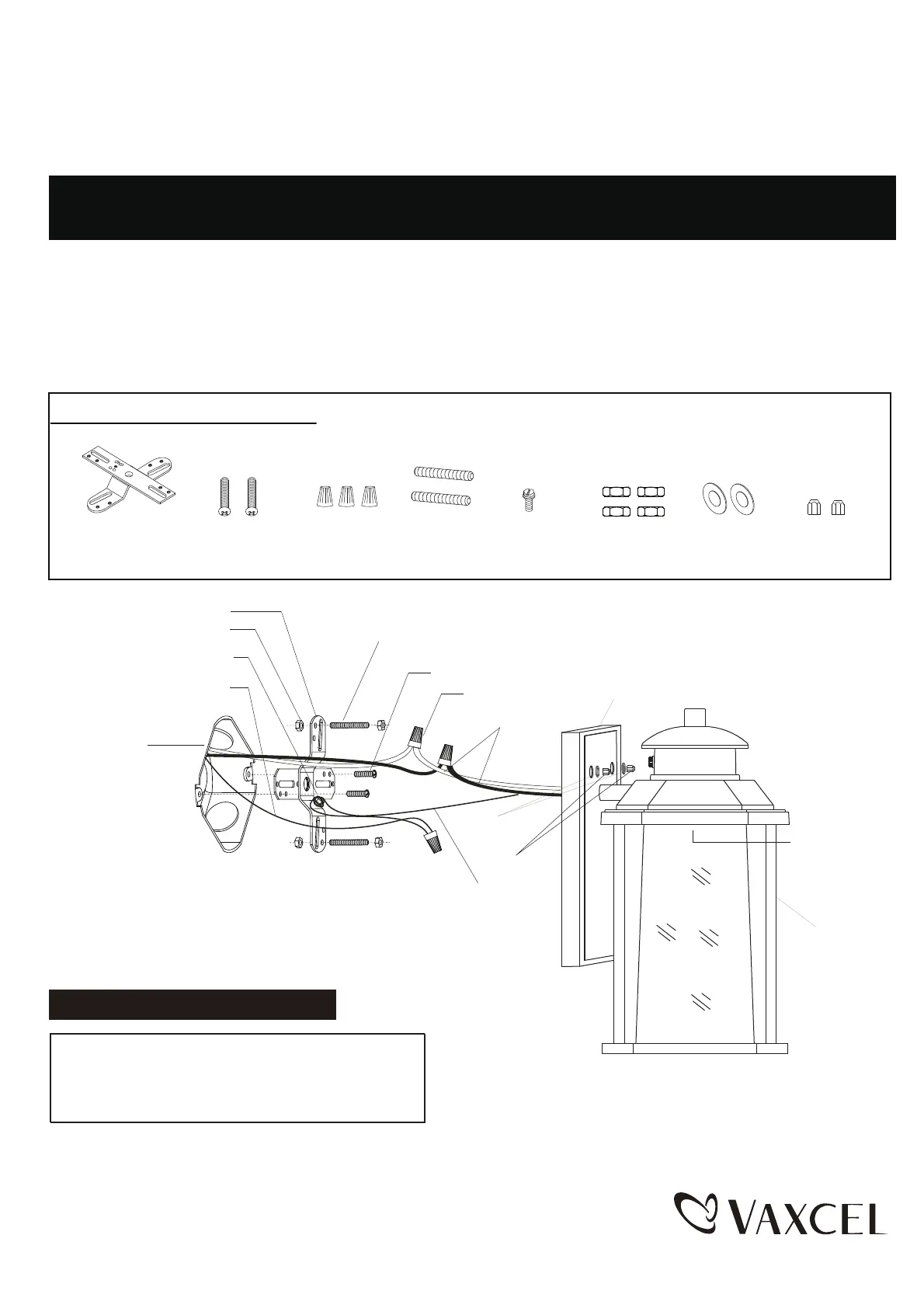

1. Attach the headless screws to the cross bar, then secure it with lock nuts.

2. Attach the cross bar to the outlet box by using two mounting screws.

IMPORTANT:

The sensor has an excellent photocell function

to enable the light to turn on at dusk and off at

dawn automatically.

Hardware Package (included):

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Installation steps

Turn off the power at fuse or circuit box.

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

T0308 / T0309

Warning:LED electronics can be damaged by electro static discharge (ESD)shock. Before

installation, discharge yourself by touching a grounded bare metal surface to remove this

hazard. To avoid damage, do not touch the LED module.
