Mounting Screw
Headless Screw
Fixture Wire
Lock Nut
Cross Bar
House Grounding Wire
Green Grounding Screw
Fixture Grounding Wire
Wire Nut
Outlet Box
Back Plate
Bolt Nut
070625

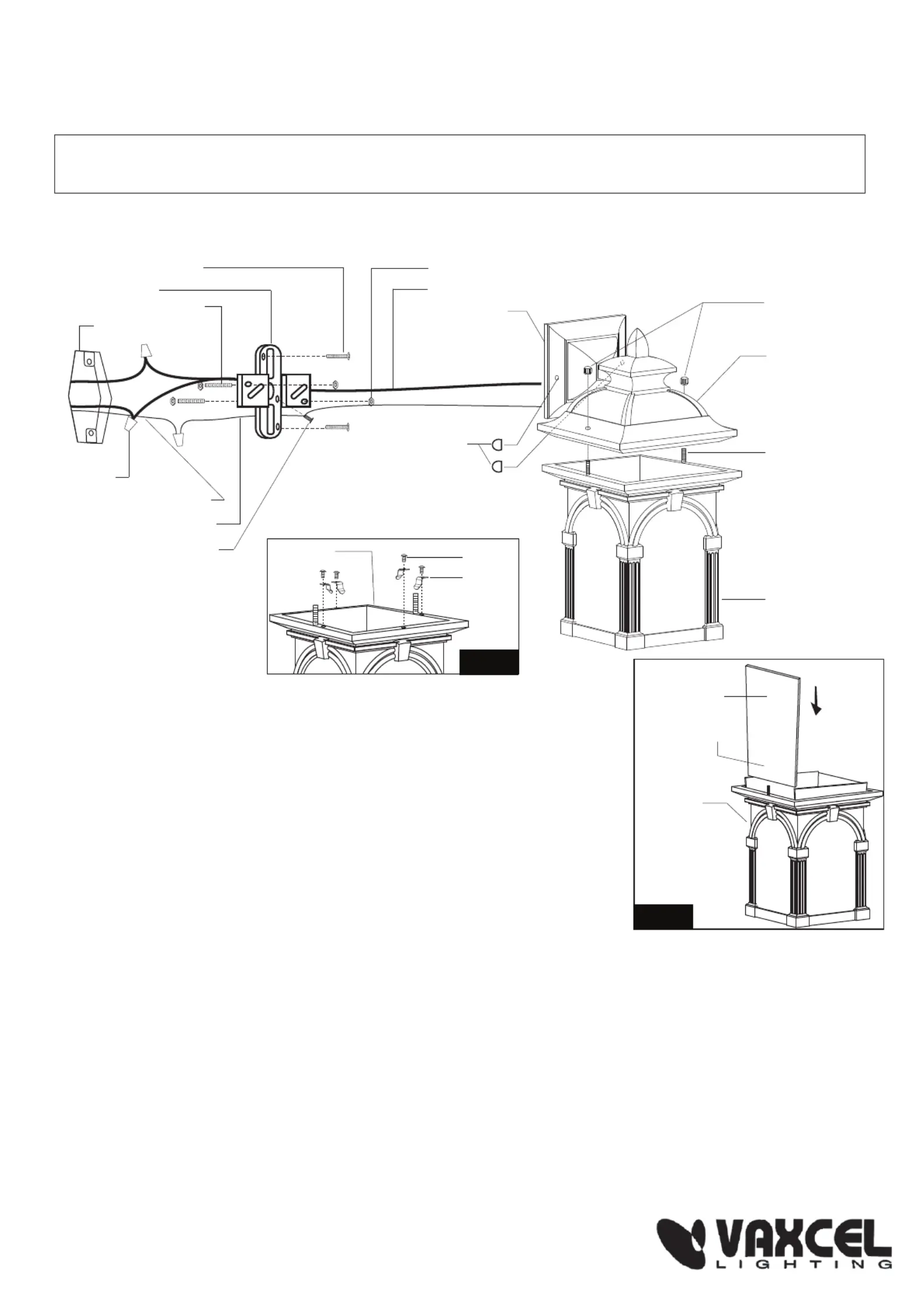

1. Thread two headless screws through the cross bar, then secure
them with four lock nuts (two on each side of the cross bar). Adjust
the length of the headless screws if necessary.
2. Attach the cross bar to the outlet box by using two mounting screws.
3. Unscrew the ball nuts and remove the frame away from the
fixture.
4. Unscrew and remove the screws and clips from the frame. Place
the flat glasses into the frame carefully, and then restore the screws
and clips back to secure the flat glasses. (See Fig.1 and Fig.2)
Note: Slide the narrow side of the flat glass downward into
the notch inside of the frame.
5. Pull out the outlet wires and the house grounding wire from the outlet box. Make wire connections
using the wire nuts:
---Connect the black wire from the fixture to the black wire from the power source.
---Connect the white wire from the fixture to the white wire from the power source.
---Attach the fixture grounding wire to the cross bar with the green grounding screw. Then connect
it to the house grounding wire with a wire nut.
Carefully put the wires back into the outlet box.
6. Attach the back plate to the cross bar by inserting the headless screws, then secure it with two bolt
nuts.
7. Install a bulb (not included). See relamping label at socket area or packaging for maximum allowed
wattage.
8. Restore the frame back to the fixture, and then secure it with ball nuts.
9. Turn on the power at the main fuse or circuit breaker box.
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT
BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.
OW38753 / OW38773
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THIS INSTRUCTION.
Frame
Flat Glass
The Narrow Side
Fig. 2
Clip
Screw
Frame
Fig. 1
Ball Nut
Fixture
Stud
Frame
