ASSEMBLY AND INSTALLATION
INSTRUCTIONS
T0553 / T0600

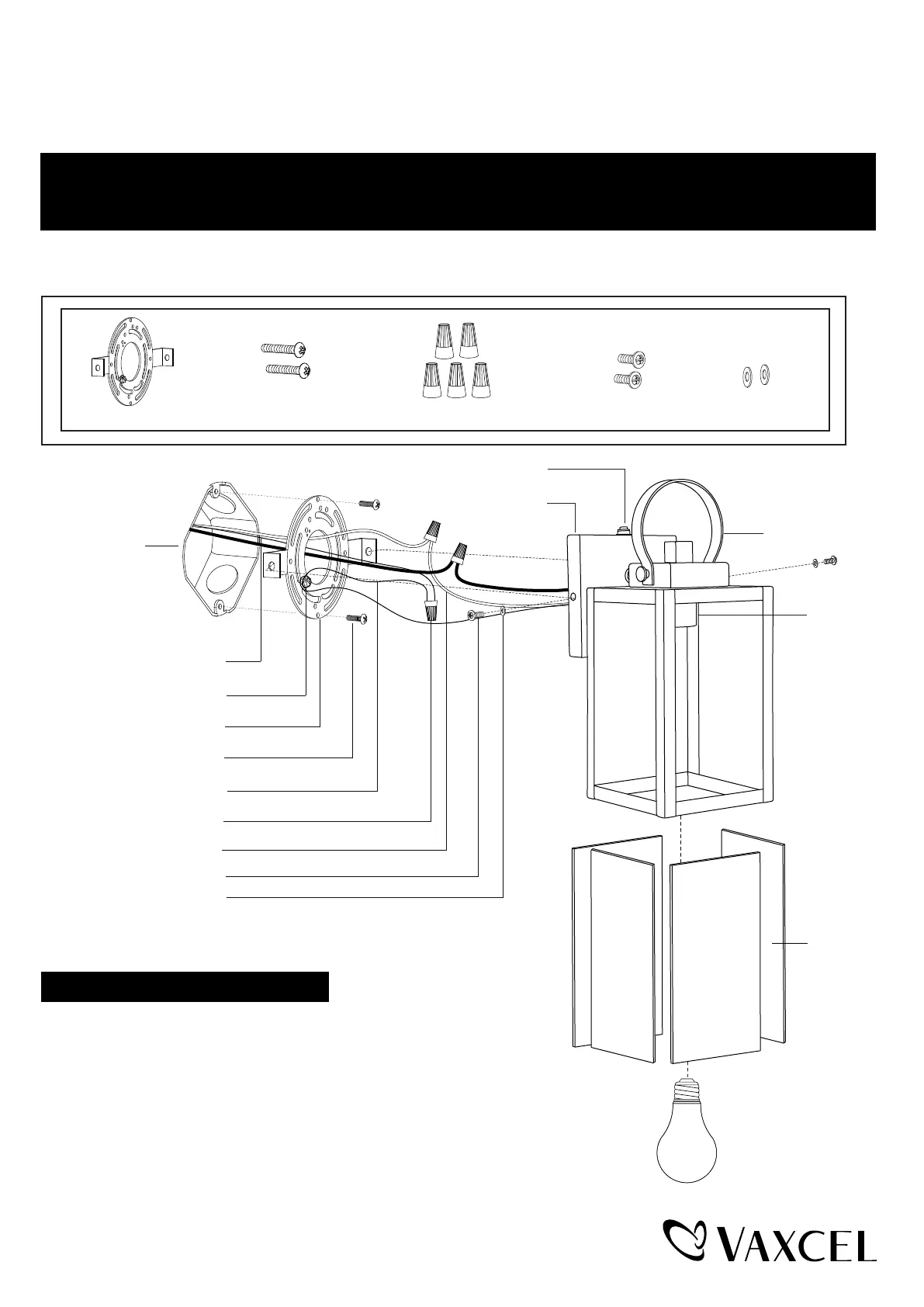

Set screw (D) Mounting Screw (B)Wire Connector (C)Mounting Plate Unit (A)
Rubber Pad (E)
Fixture
Socket
Glass Panel
Photocell
Backplate
Fixture Grounding Wire
Wire Connector (C)
Mounting Plate Unit (A)
House Grounding Wire
Green Grounding Screw
Outlet Box
Fixture Wire
Set Screw (D)
Mounting Screw (B)
Rubber Pad (E)
Max.60W Type A Bulb
(not included)
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
WARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT: Coupez la source d’alimentation principale au panneau
central de disjoncteurs avant d’installer le luminaire.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read
and save these instructions.
Turn off the power at fuse or circuit box
Installation Steps
1. Unscrew the two set screws (D), remove
the two rubber pads (E) and the mounting
plate unit (A) from the backplate.
2. Attach the mounting plate unit (A) to the outlet
box by using two mounting screws (B).
Note: Make sure that two set holes are lined
up horizontally to make the fixture level.
231204
Page 1 / 3
