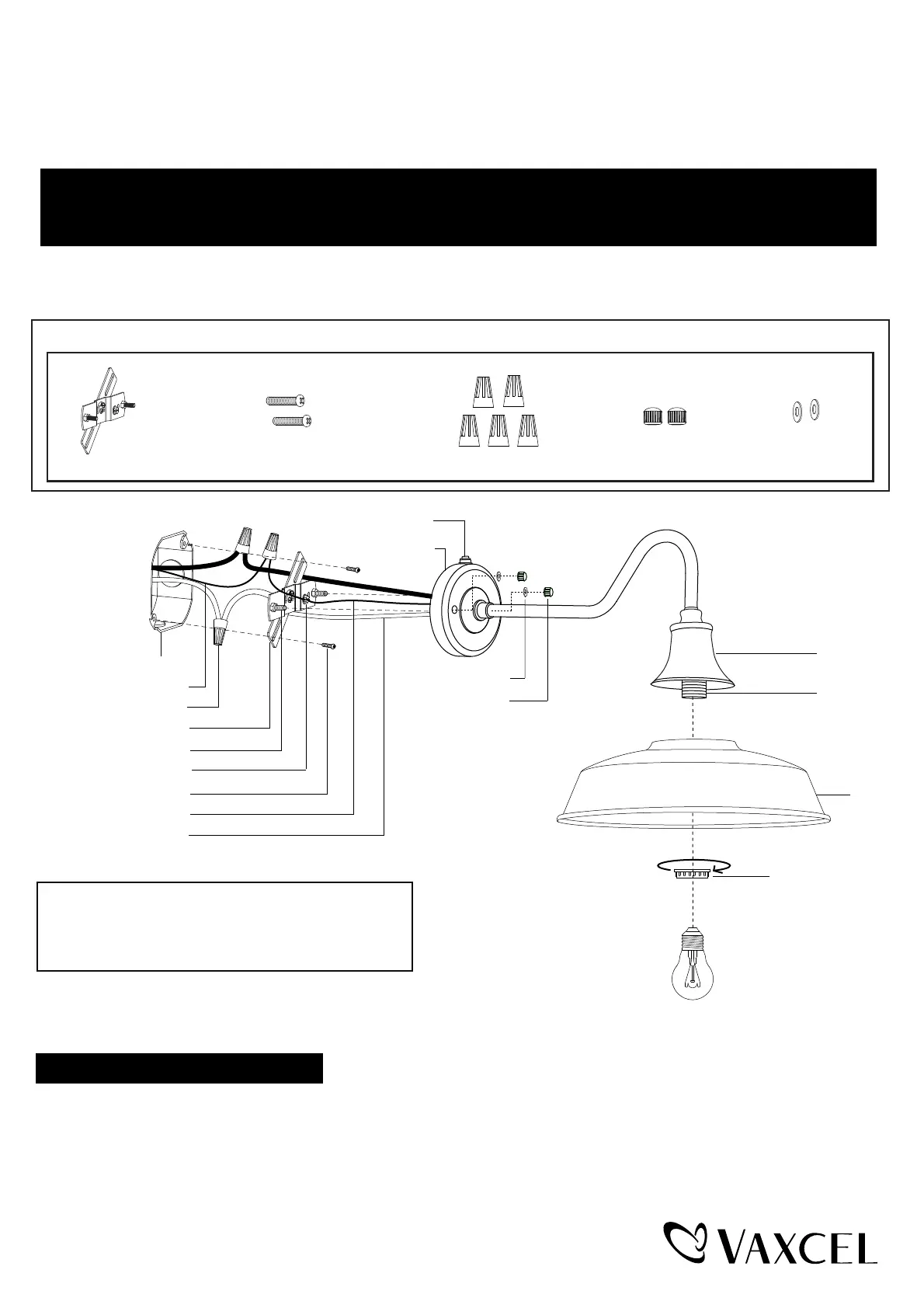

Page 1 / 3

230509

W

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

Hardware Package (included):

Mounting Screw (B)Wire Connector (C)Bolt Nut (D)

Rubber Pad (E)

Crossbar Unit (A)

T0369 / T0372 / T0484 / T0488

WARNING: Turn off the main power at circuit breaker before installing fixture.

AVERTISSEMENT: Coupez la source d’alimentation principale au panneau

central de disjoncteurs avant d’installer le luminaire.

Installation steps

Turn off the power at fuse or circuit box.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read

and save these instructions.

1. Attach the crossbar unit (A) to the outlet box by using two mounting screws (B).

Adjust the length of the preinstalled fixture mounting screws if necessary.

Note: Make sure that the fixture mounting screws are lined up horizontally to make the fixture level.

IMPORTANT:

The sensor has an excellent photocell function

to enable the light to turn on at dusk and off at

dawn automatically.

Wire Connector (C)

House Ground Wire

Outlet Box

Mounting Screw (B)

Green Ground Screw

Fixture Mounting Screw

Crossbar Unit (A)

Fixture Wire

Fixture Ground Wire

Backplate

Photocell

Bolt Nut (D)

Rubber Pad (E)

Max. 60W Type A Bulb

(not included)

Fixture

Socket

Shade

Socket Ring
