House Grounding Wire

Green Grounding Screw (E)

Fixture Grounding Wire

Wire Connector (C)

Back Plate

Ball Nut (G)

Fixture

Tube

Mounting Screw (B)

Mounting Plate (A)

Outlet Box

Fixture Wire

Lock Nut (F)

Headless Screw (D)

Rubber Pad(H)

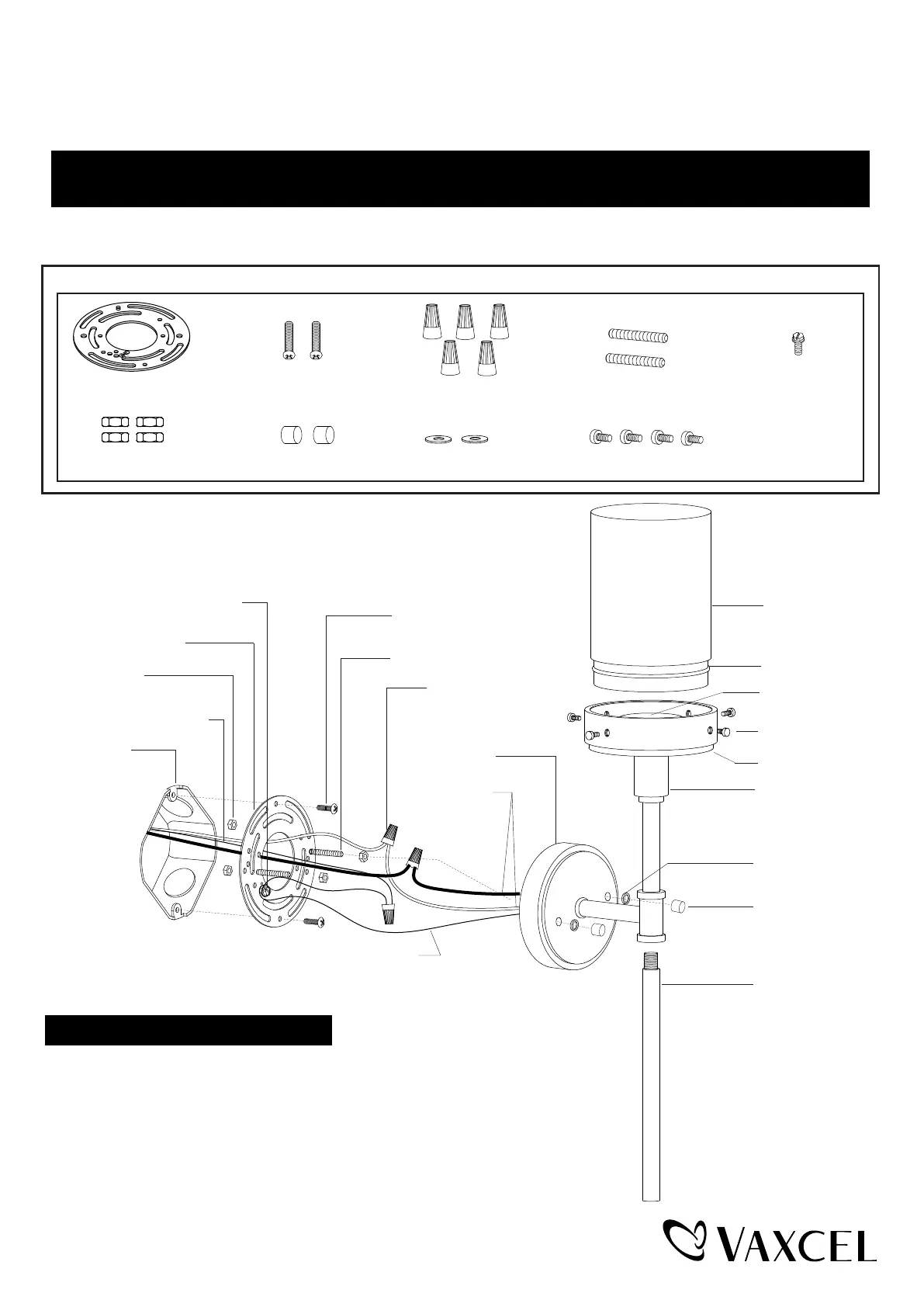

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

T0390 / T0391 /T0392 / T0393

Hardware Package (included):

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

180129

Green Grounding

Screw (E)

Headless screw (D)

Mounting Screw (B)

Wire Connector (C)

Lock Nut (F)

Mounting plate (A)

Ball Nut (G)

LED

Glass Shade

Set Screw (I)

Rubber Pad (H)Set Screw (I)

1. Thread two headless screws through the mounting plate, then secure them with

four lock nuts (two on each side of the mounting plate). Adjust the length of the

headless screws if necessary.

Note: Make sure that the headless screws are lined up horizontally, to ensure that

the fixture will be level.

2. Attach the mounting plate to the outlet box by using two mounting screws.

3. Secure the tube to the fixture.

Turn off the power at fuse or circuit box

Installation Steps

Notch

Glass Bracket
