ASSEMBLY AND INSTALLATION

INSTRUCTIONS

T0638 / T0759

1. Unscrew the two bolt nuts (D), remove the two rubber pads (E) and the mounting plate unit (A) from the backplate.

2. Attach the mounting plate unit (A) to the outlet box by using two mounting screws (B). Adjust the length of the

preinstalled headless screws if necessary.

Note: Make sure that two headless screws are lined up horizontally to make the fixture level.

T

W

WARNING: Turn off the main power at circuit breaker before installing fixture.

AVERTISSEMENT: Coupez la source d’alimentation principale au panneau

central de disjoncteurs avant d’installer le luminaire.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read

and save these instructions.

Hardware Package (included):

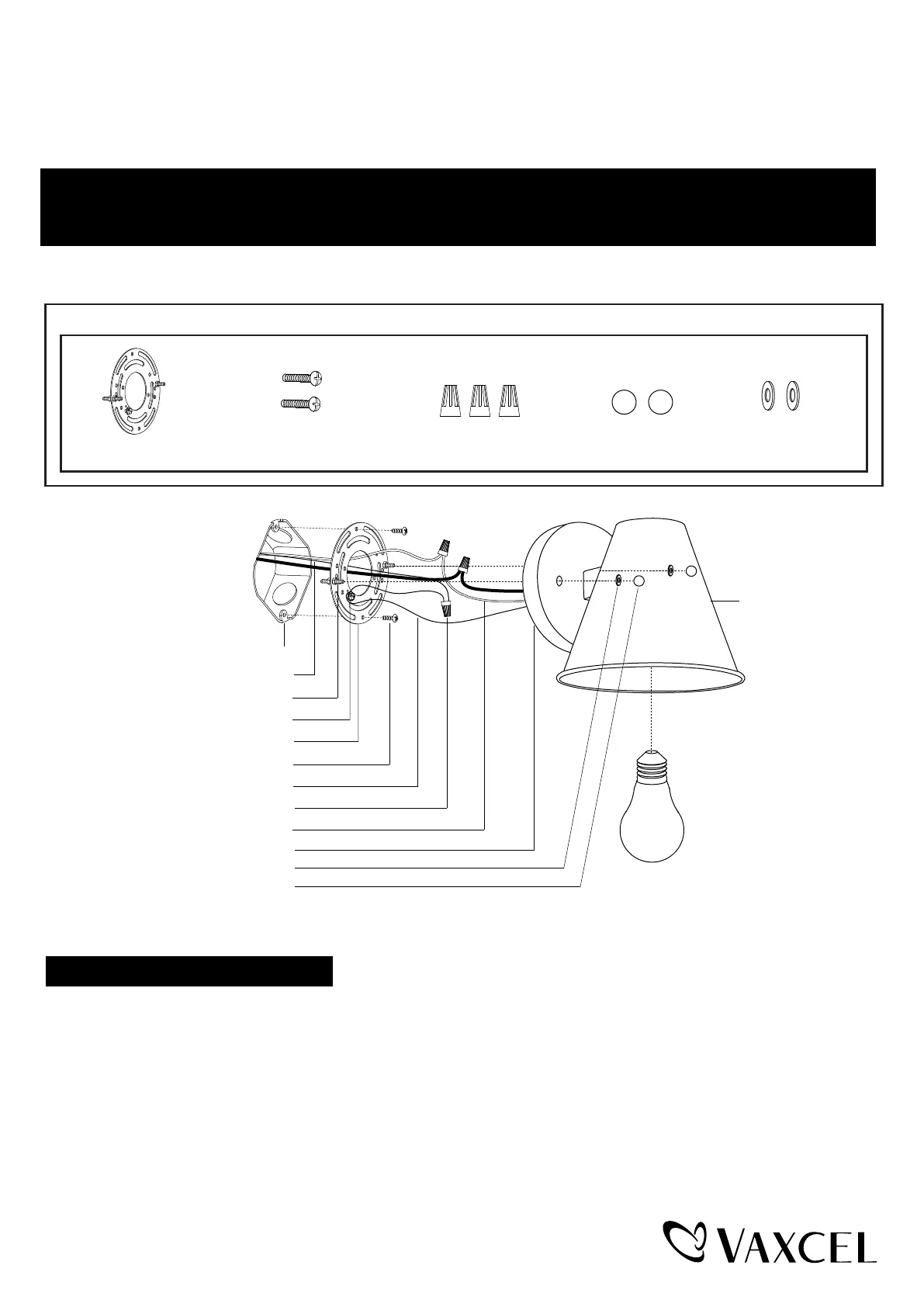

Mounting Screw (B)Wire Connector (C)Bolt Nut (D)Rubber Pad (E)Mounting Plate Unit (A)

Wire Connector (C)

House Ground Wire

Outlet Box

Mounting Screw (B)

Green Ground Screw

Headless Screw

Mounting Plate Unit (A)

Fixture Wire

Backplate

Rubber Pad (E)

Bolt Nut (D)

Fixture Ground Wire

Max. 60W Type A Bulb

Fixture

(not included)

Turn off the power at fuse or circuit box.

Installation Steps

Page 1 / 2

240312
