ASSEMBLY AND INSTALLATION
INSTRUCTIONS
Bolt Nut (D) Mounting Screw (B)Wire Connector (C)Crossbar Unit (A)
Rubber Pad (E)
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
WARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT: Coupez la source d’alimentation principale au panneau
central de disjoncteurs avant d’installer le luminaire.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2.Read
and save these instructions.
Hardware Package (
included
):
Turn off the power at fuse or circuit box
Installation Steps
1.Unscrew the two bolt nuts (D). Remove the two rubber pads (E) and the crossbar unit (A) from the backplate.
2.Attach the crossbar unit (A) to the outlet box by using two mounting screws (B). Adjust the length of the preinstalled
fixture mounting screws if necessary.
Note: Make sure that the fixture mountingscrews are lined up horizontally to make the fixture level.

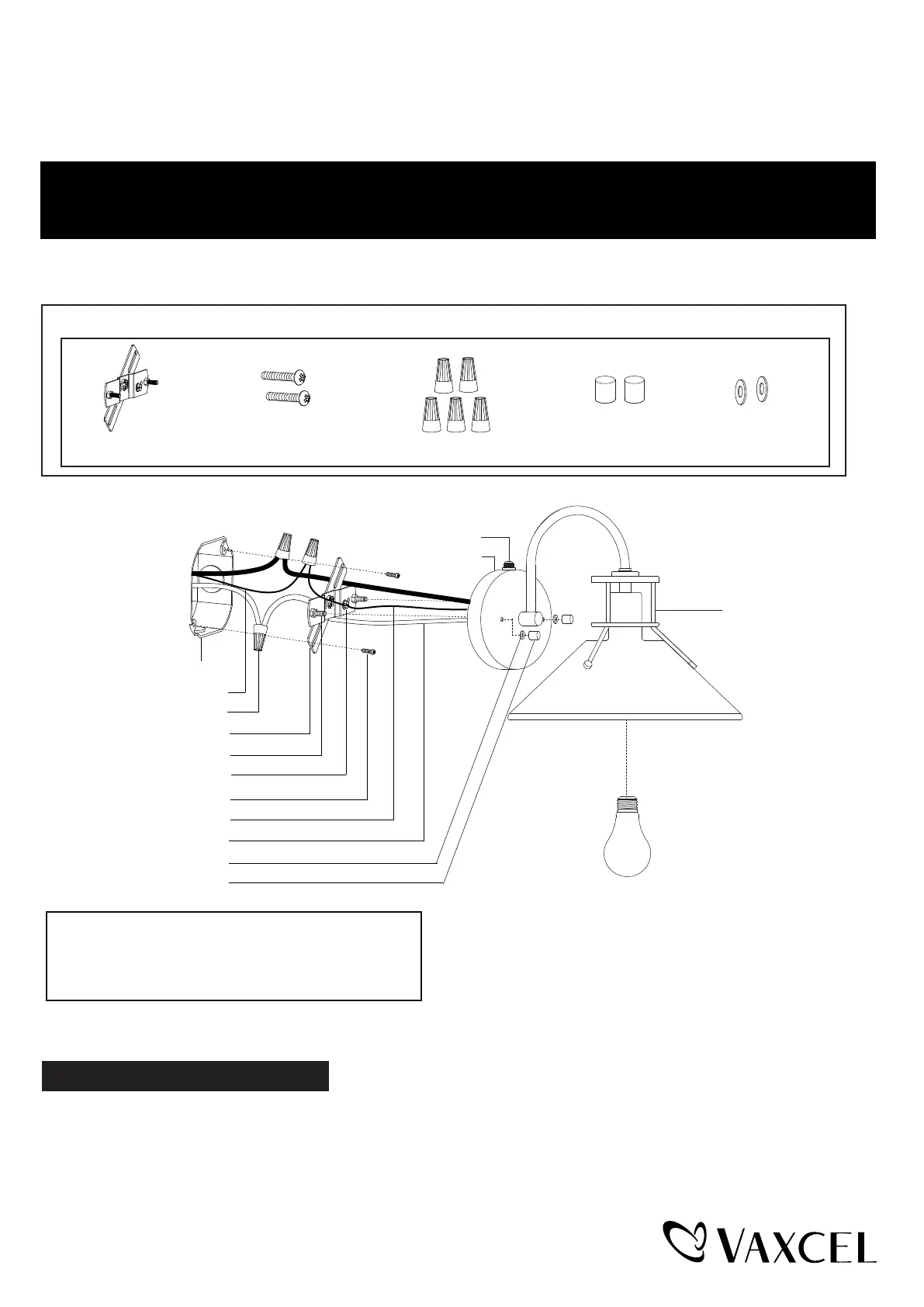

T0748
Wire Connector (C)
House Ground Wire
Outlet Box
Mounting Screw (B)
Fixture Mounting Screw
Green Ground Screw
Crossbar Unit (A)
Fixture Wire
Fixture Ground Wire
Fixture
Rubber Pad (E)
Bolt Nut (D)
Max. 60W Type A Bulb
(not included)
Photocell
Backplate
IMPORTANT:
The sensor has an excellent photocell function
to enable the light to turn on at dusk and off at
dawn automatically.
Page 1 / 3
231124
