ASSEMBLY AND INSTALLATION
INSTRUCTIONS
T0660
T
W
WARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT: Coupez la source d’alimentation principale au panneau
central de disjoncteurs avant d’installer le luminaire.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read
and save these instructions.

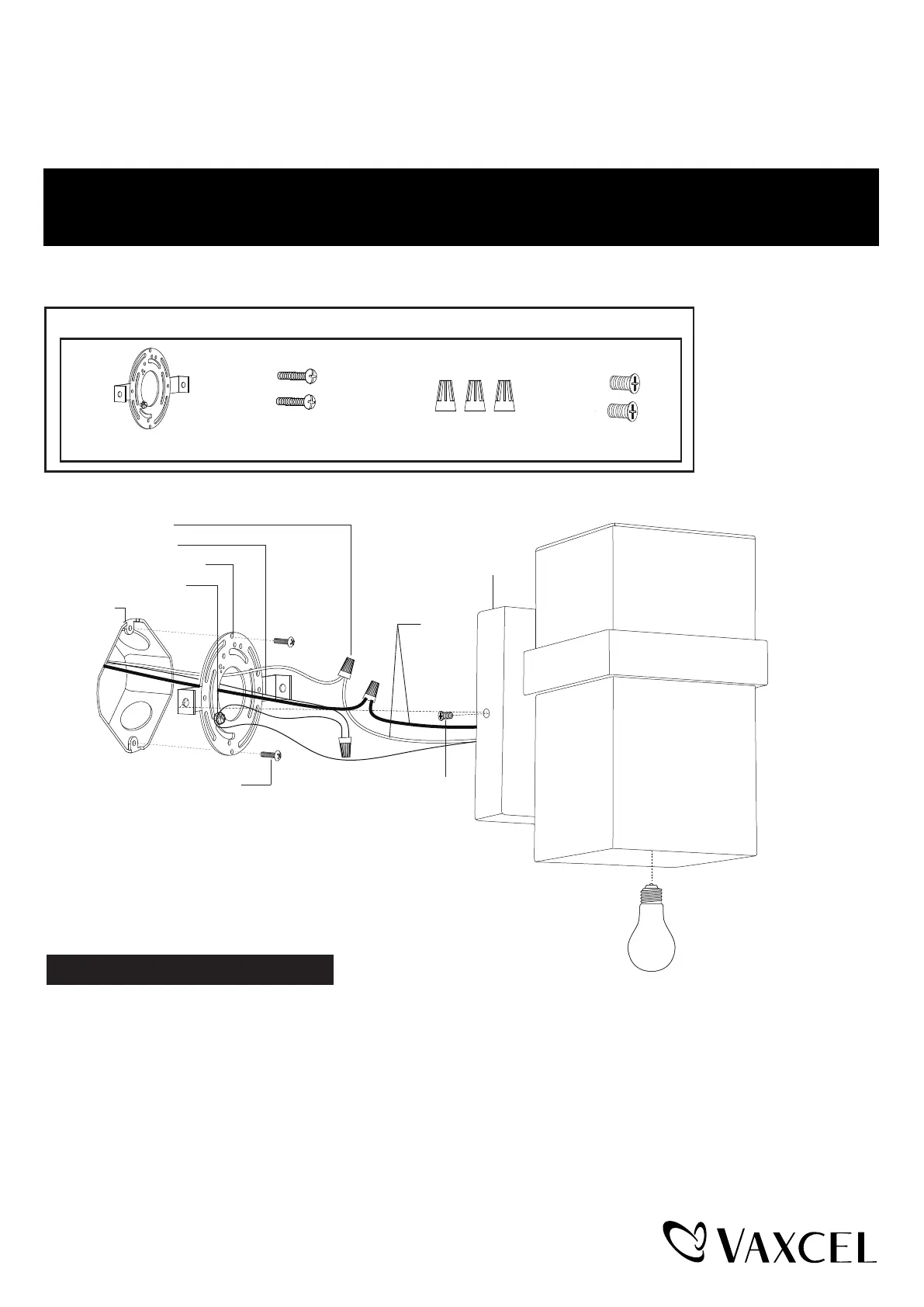

Hardware Package (included):
Set screw (D)
Mounting Screw (B)
Wire Connector (C)
Mounting Plate Unit (A)
Page 1 / 2
House Ground Wire
Green Ground Screw
Wire Connector (C)
Backplate
Mounting Screw (B)
Mounting Plate Unit (A)
Outlet Box
Fixture Wire
Set Screw (D)
Max.60W Type A Bulb
(not included)
Turn off the power at fuse or circuit box
Installation Steps
1. Unscrew the two set screws (D) and remove the mounting plate unit (A) from the backplate.
2. Attach the mounting plate unit (A) to the outlet box by using two mounting screws (B).
Note: Make sure that two set holes are lined up horizontally to make the fixture level.
3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:
• Connect the hot wire (black insulation) from the fixture to the black wire from the power source.
• Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
• Attach the fixture ground wire (bare wire) to the mounting plate unit (A) with the green ground screw，
then depending on local code, connect it to the house ground wire with the wire connector (C).
Carefully put all of the wires back into the outlet box.
