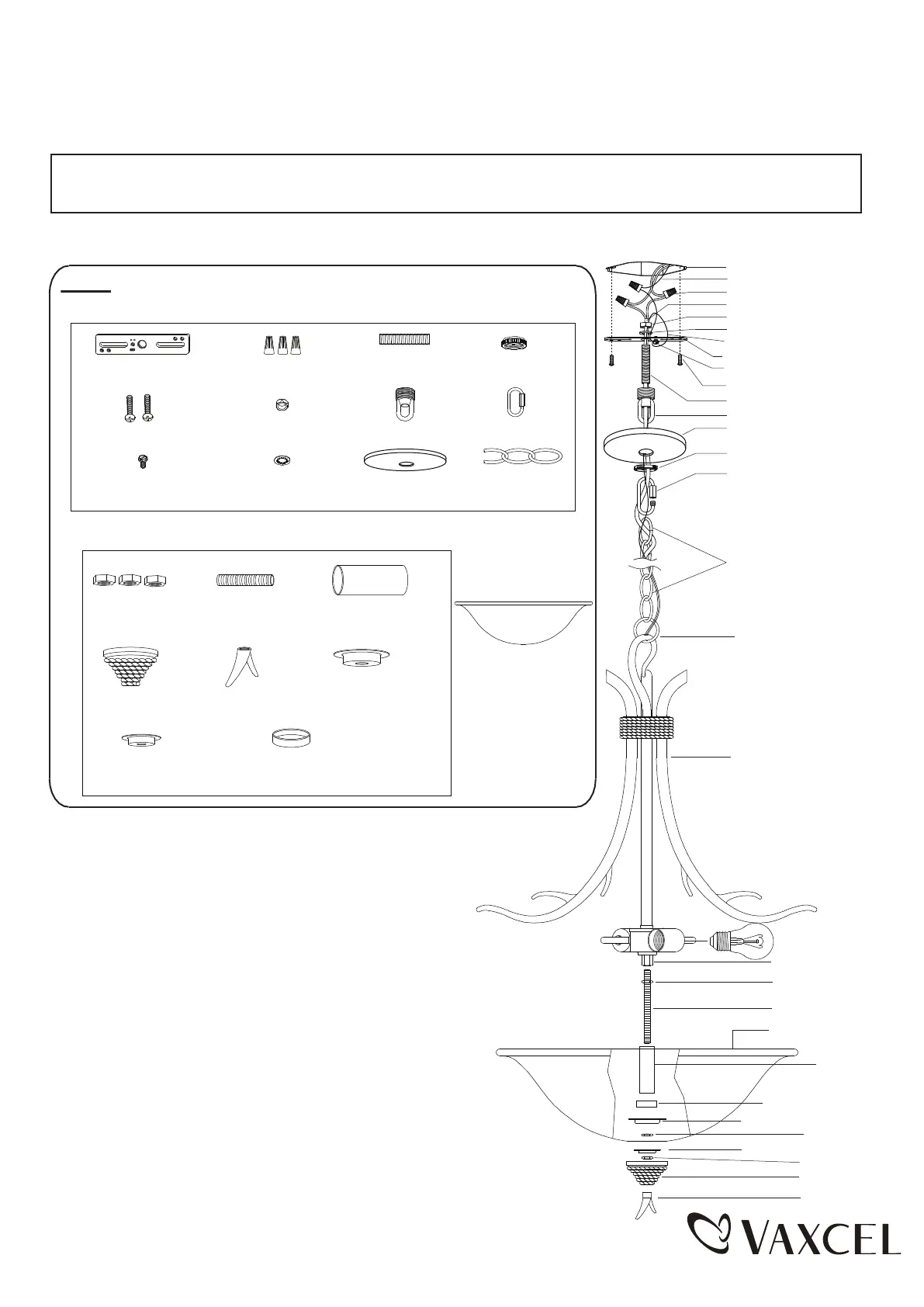

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT

BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTE: 1.

Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

P0064

Loop

Parts:

Bulb Type A Max.60W

(not included)

Parts Number (4774MM)

Mounting Strap (A)

Mounting Screw (B)

Green Grounding

Screw (C)

Wire Nut (D)

Canopy (I)

Loop Lock (K)

Chain (L)

130611

Outlet Box

House Grounding Wire

Wire Nut (D)

Fixture Wire

Fixture Grounding Wire

Mounting Strap (A)

Green Grounding Screw (C)

Mounting Screw (B)

Nipple(G)

Canopy (I)

Top Loop (H)

Hex Nut (E)

Washer (F)

Collar (J)

Loop Lock (K)

Chain (L)

Hex Nut (E)

Washer (F)

Nipple(G)

Top Loop (H)

Collar (J)

1. Attach nipple to the mounting strap, then secure it with a washer

and hex nut.

2. Attach the mounting strap to the outlet box by

using two mounting screws.

3. Adjust the arms of the fixture according to the

drawing of the package.

Important:

a. The arms should be positioned with equal

distances between them.

b. The arms should be fixed securely.

4. Attach loop to the center body.

5. Choose the length of the chain you need, then

weave the fixture wire and the fixture grounding

wire through the chain.

6. Secure the top loop to nipple.

7. Thread the fixture wire and fixture grounding wire

through the collar, canopy, top loop, nipple and

mounting strap.

Center Body

Nipple (-1) (O)

Hex Nut (N)

Small Cap (U)

Tube (P)

Glass Shade (M)

Cover (Q)

Hex Nut (N)

Finial (R)

Parts Number (9461S)

Glass Shade (M)

Coupling

Finial (R)

Cover (Q)

Hex Nut (N)

Nipple (O)

Tube (P)

Metal Cap (Ø55mm) (S)

Parts Number (4779AA)

Metal Cap (Ø48mm) (T)

Small Cap (U)

Metal Cap (Ø55mm) (S)

Hex Nut (N)

Metal Cap (Ø48mm) (T)
