ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
P0200
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box
160128

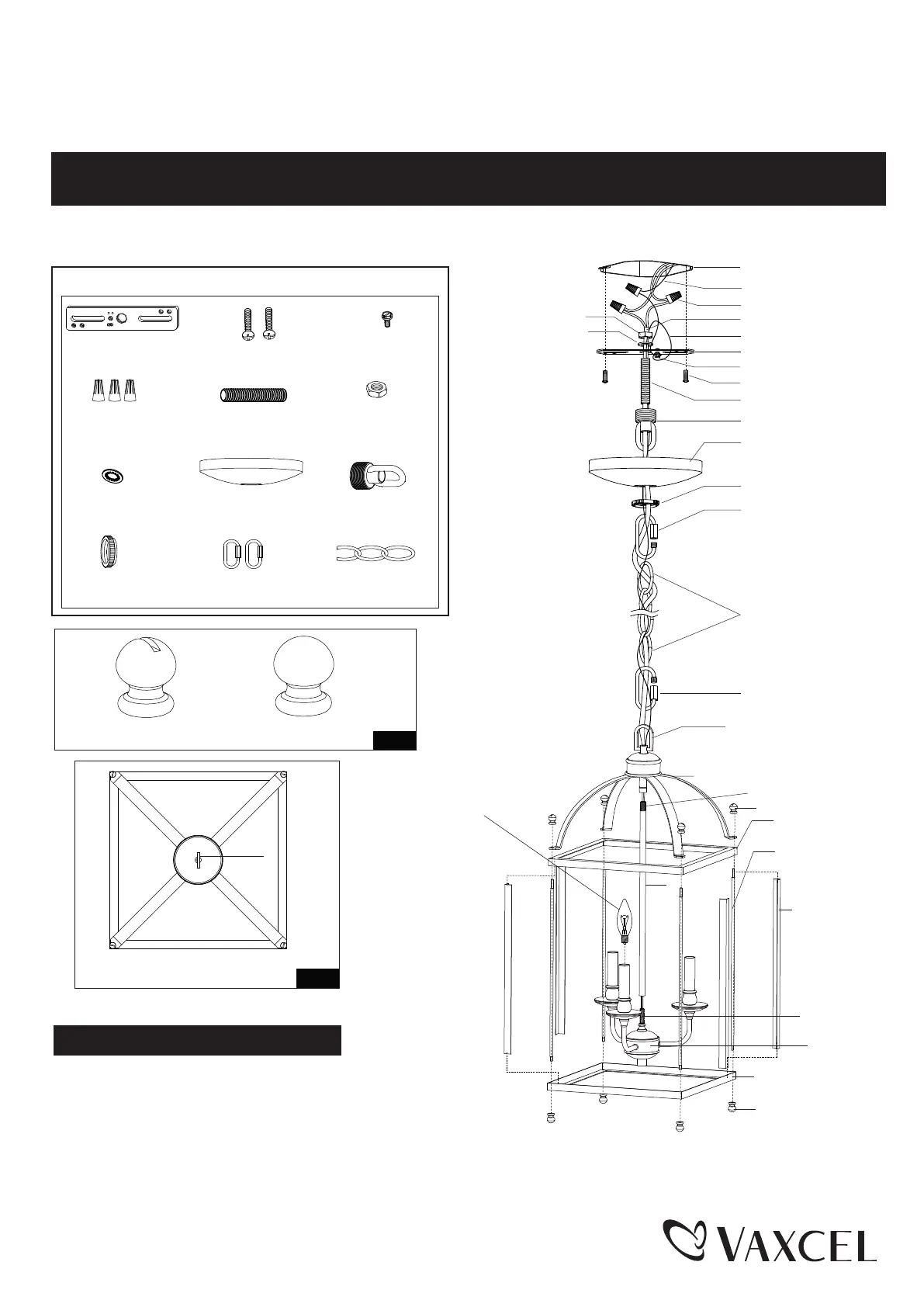

Installation Steps
Hardware Package (included):
Mounting Strap (A)
Mounting Screw (B)
Green Grounding
Screw (C)
Hex Nut (F)
Wire Nut (D)
Canopy (H)
Top Loop (I)
Collar (J)
Threaded Pipe(E)
Washer (G)
Loop Lock (K)
Chain (L)
Outlet Box
House Grounding Wire
Wire Nut(D)
Fixture Wire
Fixture Grounding Wire
Mounting Strap(A)
Green Grounding Screw(C)
Mounting Screw(B)
Threaded Pipe(E)
Canopy(H)
Top Loop(I)
Hex Nut(F)
Washer(G)
Collar(J)
Loop Lock(K)
Loop Lock(K)
Chain(L)
Top Finial
Top Metal Frame
Bottom Metal Frame
Bottom Finial
Pillar
Folded Metal
Plate
Top Finial
Bottom Finial
Loop
Arm Assembly
Tube
Loop
Threaded Pipe-b
Threaded Pipe-a
Fixture
1. Attach the threaded pipe to the mounting strap, and then
secure it with a washer and a hex nut.
2. Attach mounting strap to the outlet box using two mounting
screws.
3. Secure the top loop to the threaded pipe.
Rated: Interior Damp
