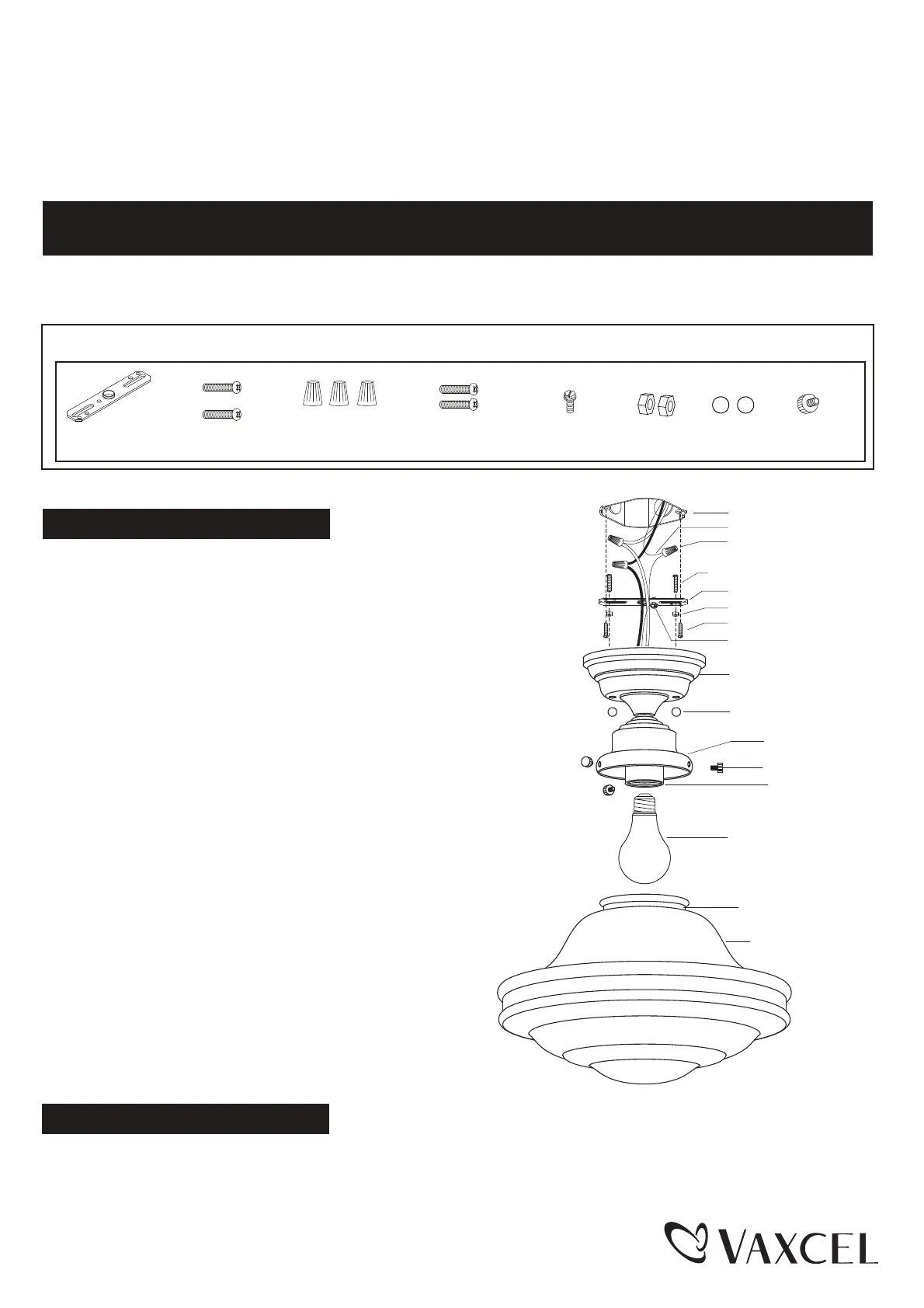

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THIS INSTRUCTION.

Fixture Canopy

Outlet Box

House Ground Wire

Wire Connector (C)

Mounting Strap (A)

Green Ground

Screw (E)

Lock Nut (F)

Mounting Screw (B)

Fixture Mounting Screw(D)

Socket Base

Glass Shade

Set Screw (H)

Bolt Nut (G)

Glass Bracket

Notch

C0176 / C0177 / C0178 / C0197

Hardware Package (included):

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Turn off the power at fuse or circuit box

Mounting Strap (A)

Fixture Mounting

Screw (D)

Wire

Connector

(C)

Installation Steps

Lock Nut (F)

Bolt Nut (G)

Green Ground

Screw (E)

Mounting Screw (B)

1. Thread two fixture mounting screws (D) through the mounting

strap (A) , and then secure with two lock nuts (F). Adjust the

length of the fixture mounting screws (D) if necessary.

2. Attach the mounting strap (A) to the outlet box by using two

mounting screws (B).

3. Pull out the source wires from the outlet box. Make wire

connections using wire connectors (C) as follows:

---Connect the hot wire (black insulation) from the fixture to

the black wire from the power source.

---Connect the neutral wire (white insulation) from the fixture

to the white wire from the power source.

---Attach the fixture ground wire (bare wire) to the mounting

strap (A) with the green ground screw (E). Then connect it

to the house ground wire with the wire connector (C).

Carefully put the wires back into the outlet box.

4. Attach the fixture canopy to the mounting strap (A) by inserting

the fixture mounting screws (D), and then secure it with two bolt

nuts (G).

5. Install 1 x 60W Max medium base bulb (not included) to the

socket. See relamping label at socket area or packaging for

maximum wattage allowed.

6. Attach the glass shade to the glass bracket by threading

set screws onto the glass notches. (Do not over tighten.)

Turn on the power at fuse or circuit box

Max. 60W Medium Base bulb

(not included)

Page 1 / 2

Set Screw (H)

230403
