ASSEMBLY AND INSTALLATION
INSTRUCTIONS
1. Attach threaded pipe (E) to the mounting
strap (A), then secure it with a washer (G)
and hex nut (F).
2. Attach the mounting strap (A) to the outlet box by
using two mounting screws (B).
3. Secure the top loop (I) to threaded pipe (E).
4. Take a glass panel and gently slide the narrow
side of the glass panel down into the metal frame
in place, secure it by pressing the clips from both
top and bottom sides. (See Fig.1 & Fig.2) Repeat
with other panels.
Turn off the power at fuse or circuit
box.
Installation Steps
Glass Panel

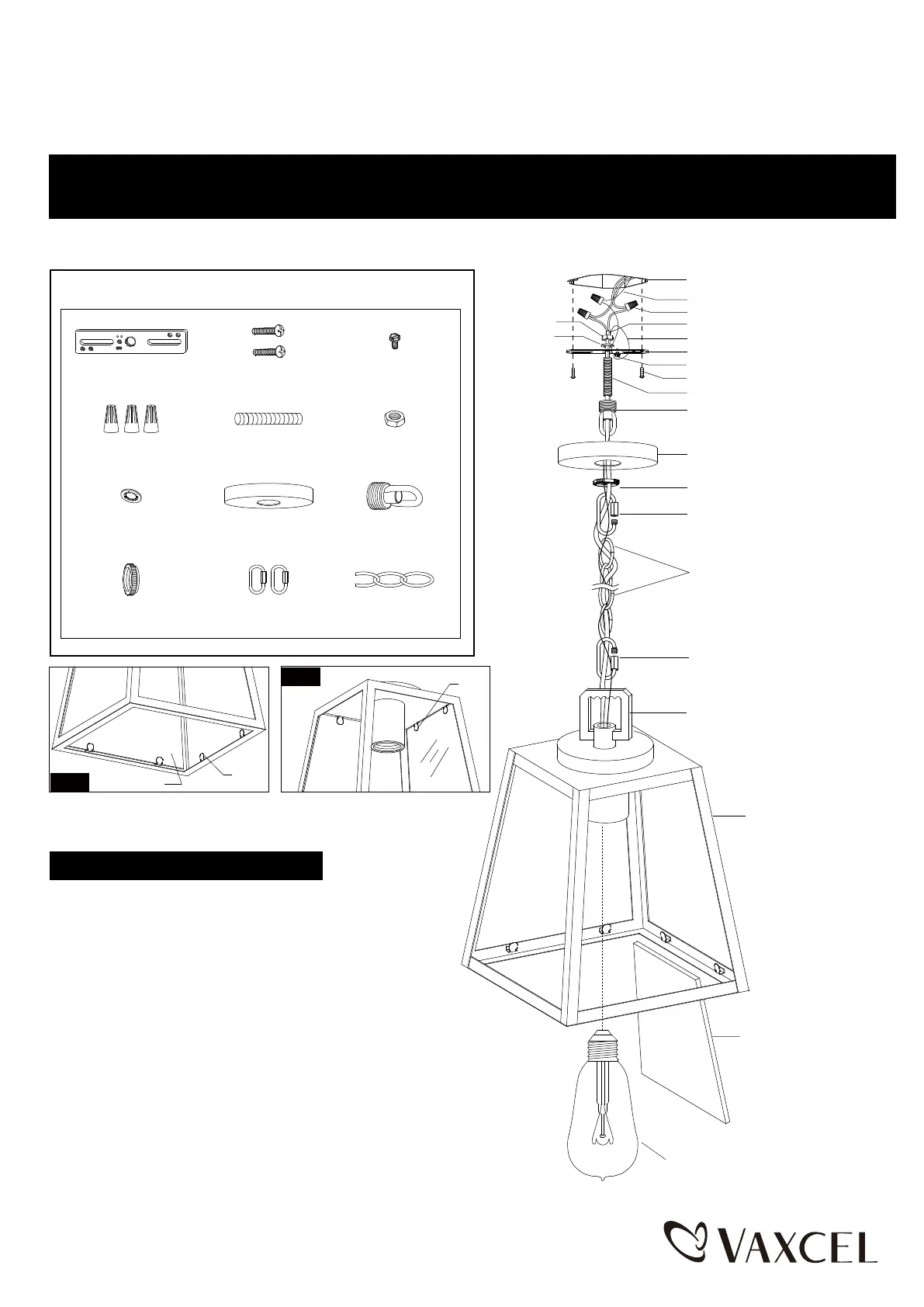

Fig.1
Clip
Fig.2
Clip
Page 1 / 2
240513
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
P0346
Mounting Strap (A)
Wire Connector (D)
Collar (J)
Washer (G)
Mounting Screw (B)Green Ground
Screw (C)
Hex Nut (F)
Canopy (H) Top Loop (I)
Threaded Pipe (E)
Loop Lock (K)
Chain (L)
Hardware Package(inculded):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Outlet Box
Housing Ground Wire
Wire Connector (D)
Fixture Wire
Fixture Ground Wire
Mounting Strap (A)
Green Ground Screw (C)
Mounting Screw (B)
Threaded Pipe (E)
Hex Nut (F)
Washer (G)
Top Loop (I)
Main Fixture
Canopy (H)
Loop
Loop Lock (K)
Loop Lock (K)
Collar (J)
Chain (L)
Medium Base Bulb Max.40W
(not included)
Glass Panel (M)
