ASSEMBLY AND INSTALLATION
INSTRUCTIONS
191120
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
C0233

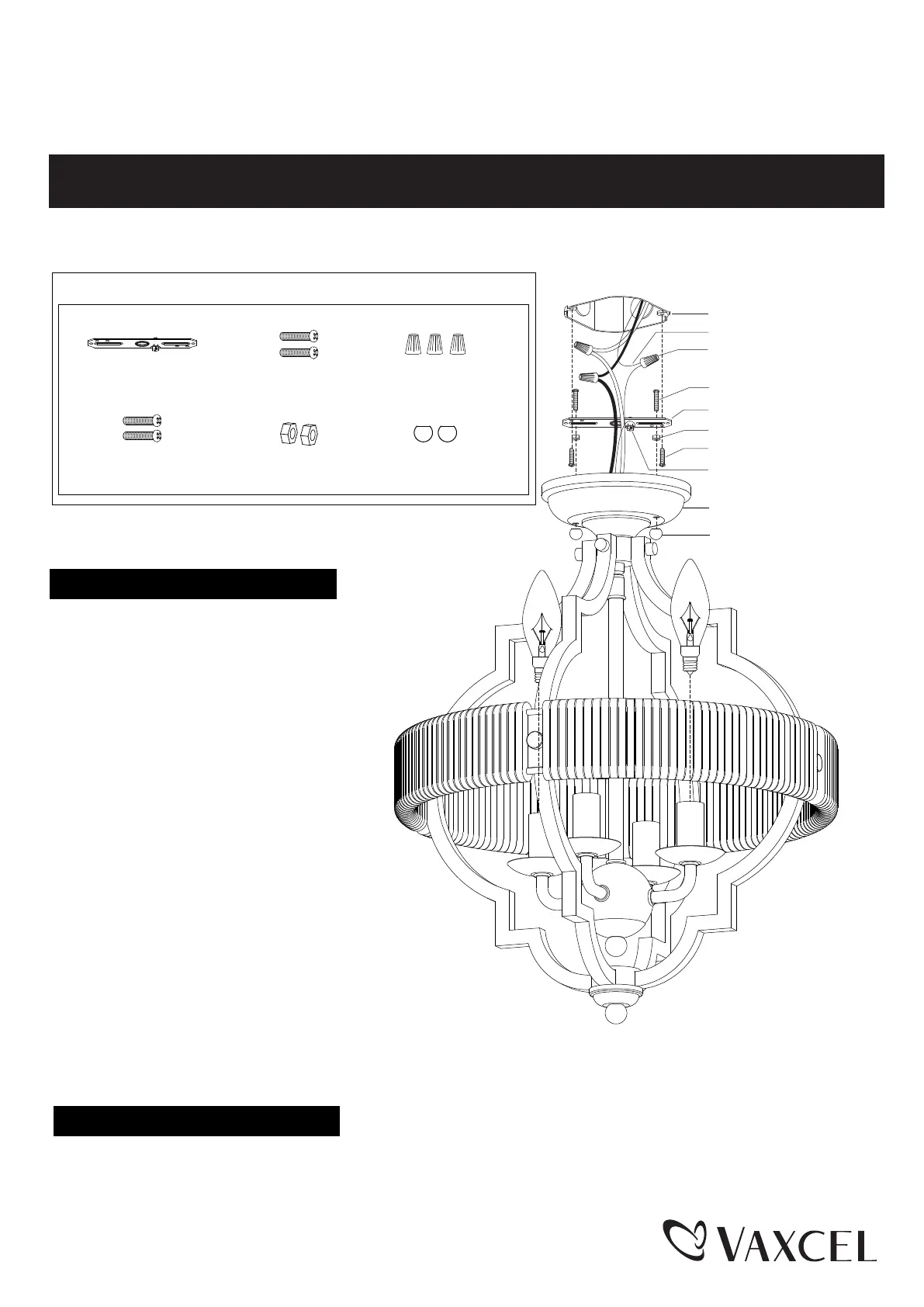

Hardware Package (included):
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Mounting Strap (A)
Fixture Mounting Screw (D)
Mounting Screw (B)Wire Connector (C)
Lock Nut (E)Ball Nut (F)
Outlet Box
House Ground Wire
Wire Connector (C)
Fixture Mounting Screw (D)
Mounting Strap (A)
Green Ground Screw
Canopy
Ball Nut (F)
Lock Nut (E)
Mounting Screw (B)
1. Attach two fixture mounting screws
(D) to the
mounting strap (A), then secure it with two
lock nuts (E). Adjust the length of the fixture
mounting screws (D) if necessary.
2. Attach the mounting strap (A) to the outlet box
using two mounting screws (B).
3. Pull out the source wires from the outlet box.
Make wire connections using wire
connector (C) as follows:
---Connect the black wire from the fixture to
the black wire from the power source.
---Connect the white wire from the fixture to
the white wire from the power source.
---Attach the fixture ground wire to the
mounting strap (A) with the green ground
screw, then connect it to the house ground
wire with a wire connector (C).
Carefully put the wires back into the outlet box.
4. Install the bulbs (not included).
Check relamping label at socket area or packaging for maximum wattage allowed .
5. Attach the canopy onto the outlet and tighten it with two ball nuts (F).
Turn on the power at fuse or circuit box
Turn off the power at fuse or circuit box
Installation Steps
CandelabraBulb Max.60W
