Pagina 1/12
ISO-2
USER GUIDE
Index
Overview
Features
Audio Connection
Various System Connection
Eliminating Hum and Buzz and the
Ground Loop
Specications
Measurement
6F, No.168, Xin-Hu 2nd Rd.
Nei-Hu District, Taipei City. 11494.
Taiwan, R
.
O.C.
+886 2 27933017
+886 2 27928264
info@unikapro.com
Unika Electronic Co., Ltd.
w w w . u n i k a p r o . c o m
Stage Series
Made in Taiwan
UNiKA ISO-2
User Guide
1
OVERVIEW
FEATURES
The ISO-2 is a passive audio isolator designed to be inserted into the signal
chain to block hum and buzz caused by ground loops. The ISO-2 accepts
unbalanced or balanced signals and is equally suitable for consumer
electronics and professional line-level devices.
The ISO-2 can be operated as a dual input and outputs, and since the circuit
is passive, no power is required. Whether an unbalanced or balanced signal
is connected, the ISO-2 will automatically convert the signal depending on
the type of cable and connector plugged in.
info@unikapro.com
If you still need further clarification, please send email to us and we will
do our very best to reply you in short order.
The ISO-2 is a simple passive device, designed to electronically-isolate
connected line-level audio equipment without degrading the audio quality.
On the ISO-2 there are 2 inputs and 2 outputs which block DC voltage and
prevent buzz and hum from ground loops. Both outputs feature individual
ground lift switches to help further reduce ground loop noise.
2
UNiKA ISO-2
User Guide

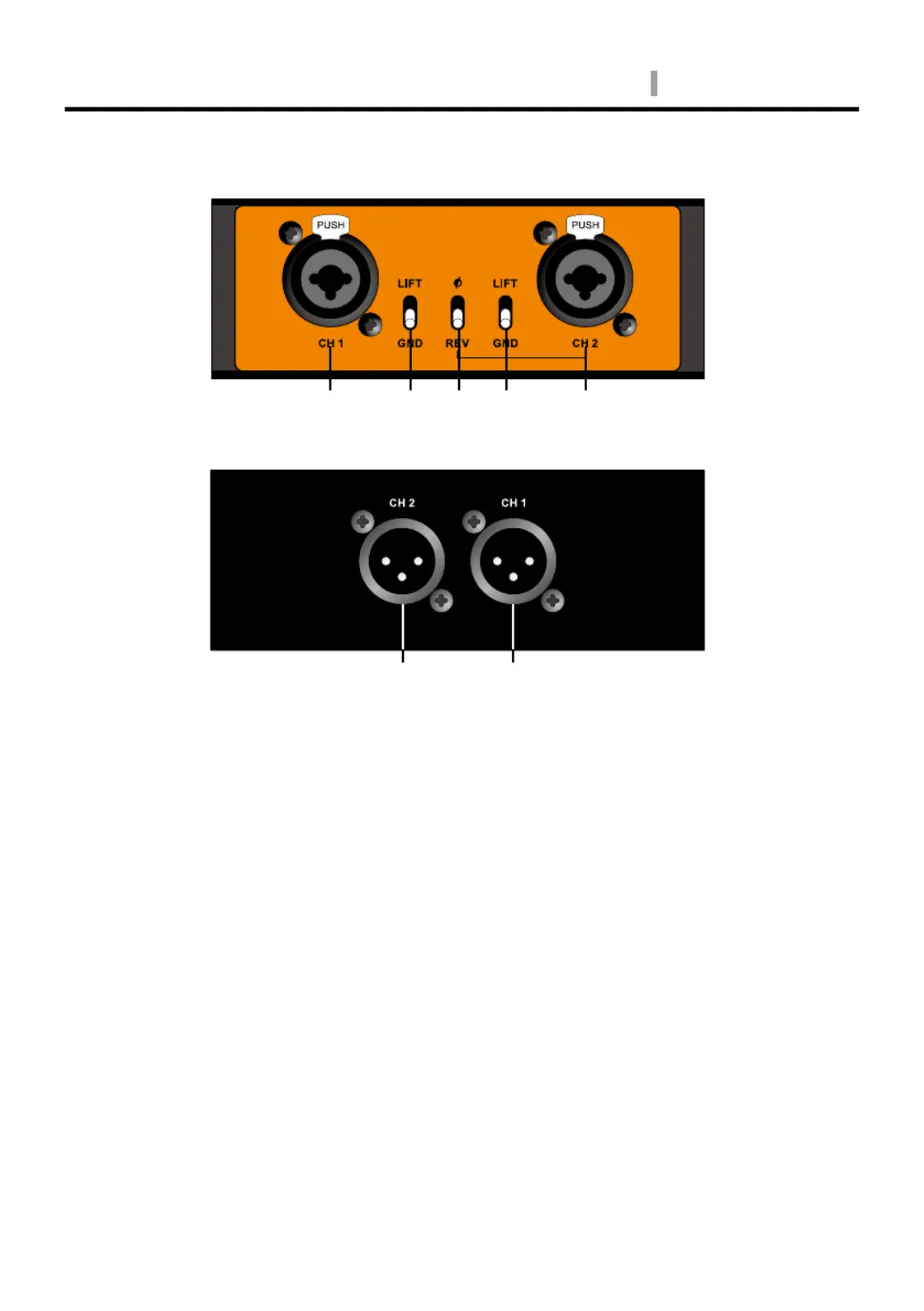

①
Ch-1 input: transformer balanced XLR-1/4” TRS Combo Connector.
②
Ground Lift switch for Ch-1: disconnects pin-1 on output-1 XLR connector.
③
Phase reverse switch: Swaps pin-2 and pin-3 on Ch-2 when REV is selected.
④
Ground Lift switch for Ch-2: disconnects pin-1 on output-2 XLR connector.
⑤
Ch-2 input: transformer balanced XLR-1/4” TRS Combo Connector.
⑥
Output-2: transformer balanced XLR output.
⑦
Output-1: transformer balanced XLR output.
① ② ③ ④ ⑤
⑥ ⑦
