UNiKA SDI-1
User Guide
1
OVERVIEW
FEATURES

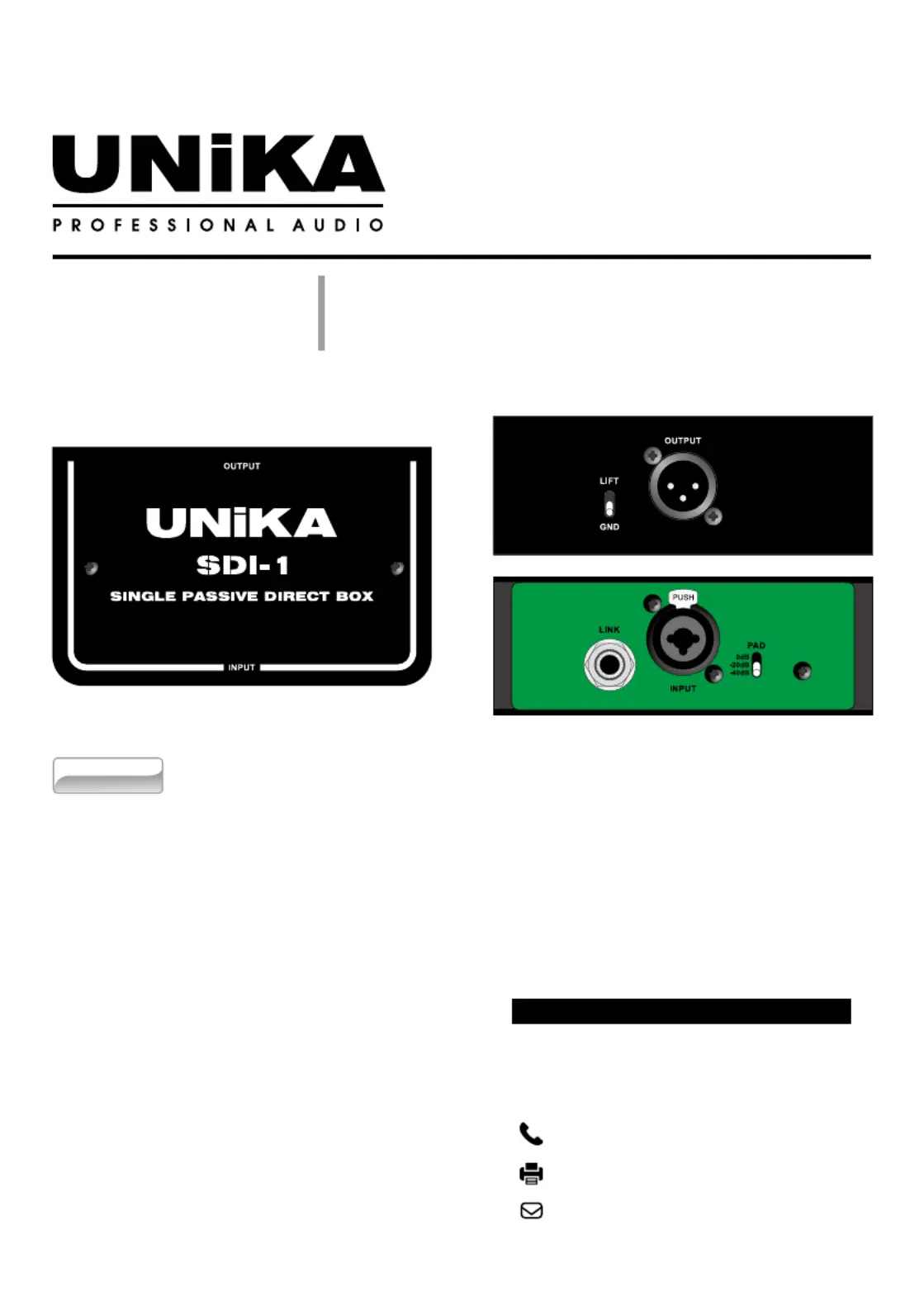

The UNiKA SDI-1 is an easy-to-use, single-channel, passive direct box for
musical instrument and audio system applications. In addition to a high-
quality audio transformer, the SDI-1 has some very useful built-in features.
So please take a few minutes to go through this user guide to ensure you
take full advantage of the facilities on offer and get the best possible result.
info@unikapro.com
If you need further information, please email us and we will do our very
best to help.
• Single-channel, high-impedance, direct input for an electronic musical
instrument or line-level audio source from a music player or computer.
• ¼“ TS LINK socket. A parallel-wired connector which feeds the direct input
signaltoanotherdestinationsuchasinstrumentamplier.
• Selectable, 3-step attenuator acting on the high-impedance (hi-Z) direct
input signal.
• Single-channel XLR. A transformer-isolated, balanced, low-impedance
(low-Z) output.
• Ground lift switch acting on pin-1 of the balanced output.
2
UNiKA SDI-1
User Guide
①

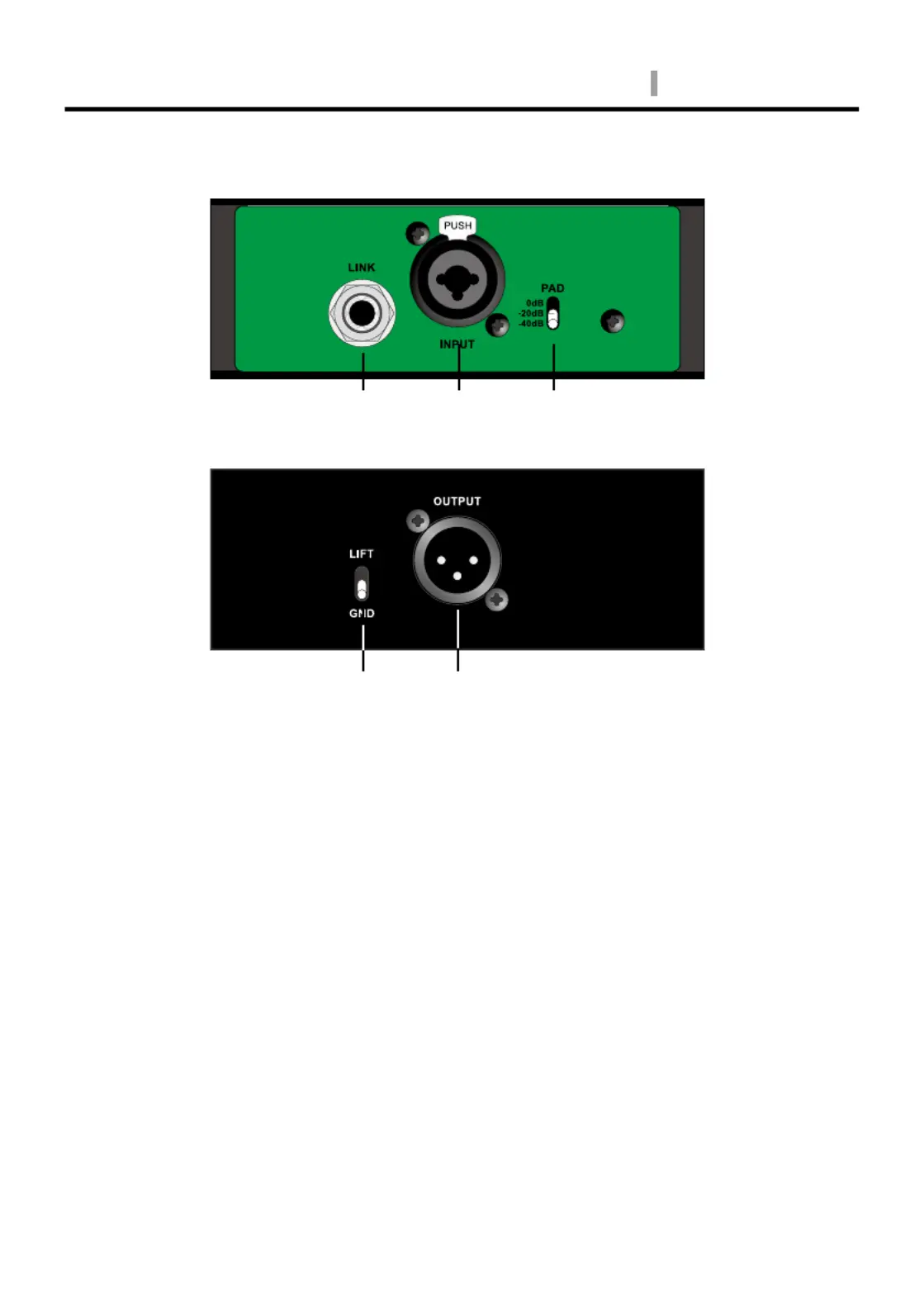

¼“ TS LINK socket: a parallel-wired direct feed from the input. It can be
linkedtoinstrumentamplier.
②
High-impedance direct input with Combo jack: connect to output of electronic
musical instrument or audio device using XLR or TRS, TS jack plugs.
③
Input PAD: 0dB, -20dB & -40dB selectable 3-step attenuator reduces the
input sensitivity to prevent overload.
④
GGround lift switch: lifts the pin-1 on the XLR output connector to help
eliminate hum and buzz caused by ground loops.
⑤
Balanced XLR output: low-impedance output with isolation transformer.
①②③
④ ⑤
