1

SELEKTA 170 top3

1700130

SELEKTA 174 top3

1740130

SELEKTA 170 top3 12–24V

1704130

307304 04

21.03.2025

Astro Time Switch

EN

1. General information

•

The device is designed for installation on DIN rails (in

accordance with EN 60715)

•

Power reserve (10 years) is reduced if memory card is

inserted (using battery power)

•

Corresponds to type 1.B.S.T.U nach IEC/EN 60730-2-7

2. Safety

Assembly and installation should only be carried

out by a qualied electrician, somebody who has

completed appropriate professional training and

has the knowledge and experience necessary to be

able to recognise and avoid the potential dangers

posed by electricity.

Before installation/disassembly, disconnect the

power supply and ensure that the parts are no

longer live.

Prior to commissioning and using the product, read

the entire manual and follow the instructions.

3. Proper use

•

The astronomic time switch is used, for instance, for

lighting equipment (roads, external staircases, display

windows, entrances etc.)

•

Interface for Bluetooth OBELISK top3 (app)

•

Only for use in closed, dry rooms

!

Do not use on safety devices, e.g. escape route doors, re

safety equipment etc.

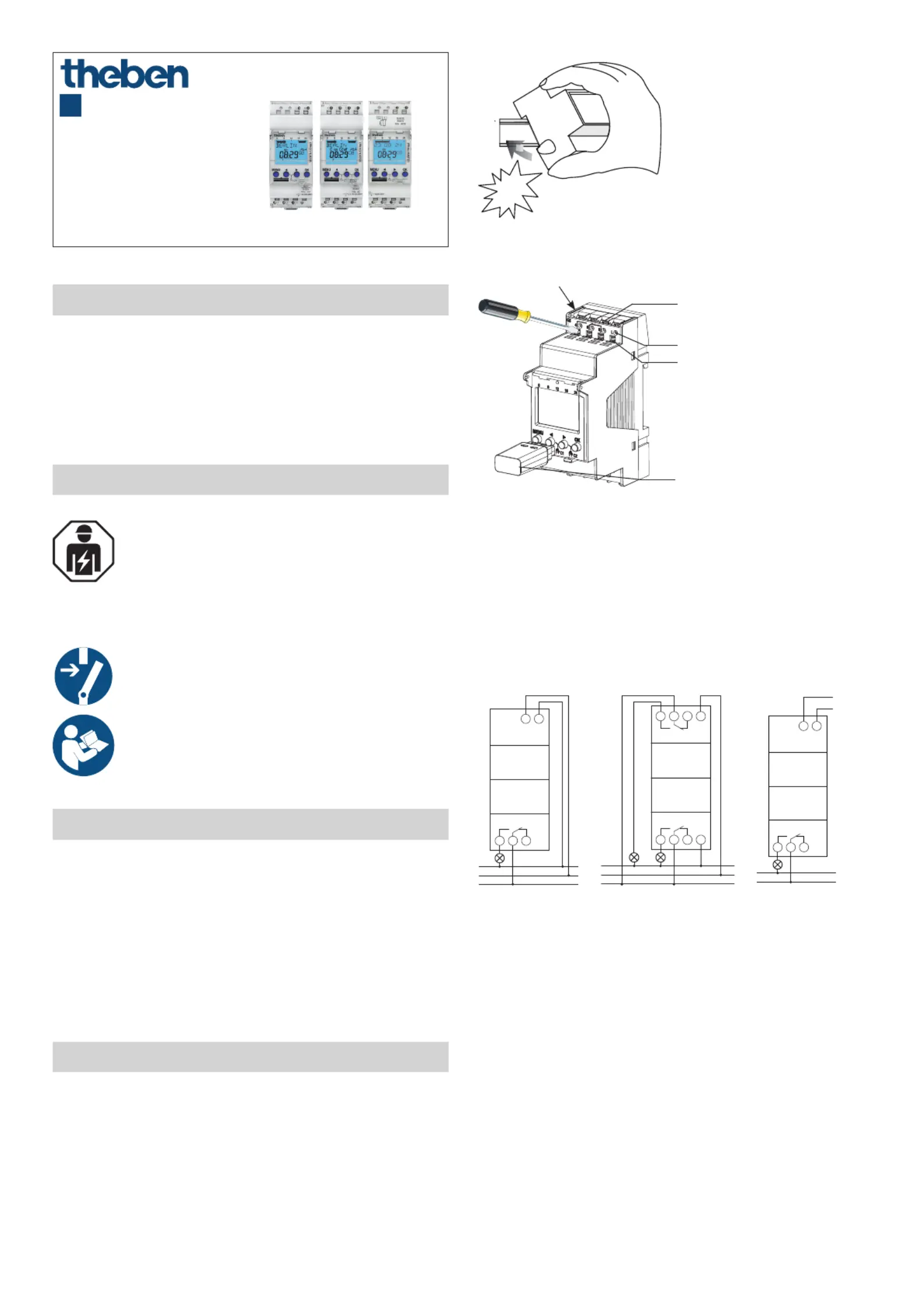

4. Installation and connection

Mounting the time switch

Mount on DIN rail.

TH 35-7,5

(DIN EN 60715)

click

Test connection

45° cable

Spring plug-

in terminal

opener

Bluetooth OBELISK top3

(9070130)

DuoFix spring

plug-in terminal

!

Check the depth of the control cabinet when OBELISK

top3 is connected. The depth must be > 94 mm.

Connecting the time switch

!

Correct connection required for smooth zero-cross

switching operation.

SELEKTA 170 top3SELEKTA 174 top3SELEKTA 170 top3 12–24V

C1

123

N

L

L

LN

C2

C1

123

456L

N

L

L

N

C1

123

+

~

–

~

12–24 V

+

~

–

~

N

L

Connecting the cable

Strip cable to 8 mm (max. 9).

Insert cable in the open DuoFix plug-in terminal at 45°.

L2 cables per terminal position possible.

To open the DuoFix plug-in terminal, press screwdriver

downwards.

Disconnecting the cable

Use the screwdriver to push the spring plug-in terminal

downwards.
