MC3487 Quadruple Differential Line Driver

1 Features

•Meets or exceeds requirements of ANSI TIA/

EIA-422-B and ITU recommendation V.11

•3-state, TTL-compatible outputs

•Fast transition times

•High-impedance inputs

•Single 5V supply

•Power-up and power-down protection

2 Applications

•Factory automation

•ATM and cash counters

•Smart grid

•AC and servo motor drives

3 Description

The MC3487 offers four independent differential line

drivers designed to meet the specifications of ANSI

TIA/EIA-422-B and ITU Recommendation V.11. Each

driver has a TTL compatible input buffered to reduce

current and minimize loading.

The driver outputs uses 3-state circuitry to provide

high-impedance states at any pair of differential

outputs when the appropriate output enable is at a

low logic level. Internal circuitry is provided a high-

impedance state at the differential outputs during

power-up and power-down transition times, provided

the output enable is low.

The MC3487 is designed for best performance when

used with the MC3486 quadruple line receiver. The

device is available in a 16-pin dual-in-line package

and operates from a single 5V supply.

Package Information

PART NUMBERPACKAGE

(1)

PACKAGE SIZE

(2)

MC3486

D (SOIC, 16)19.3mm × 9.4mm

N (PDIP, 16)19.3mm × 9.4mm

NS (SOP, 16)10.2mm × 7.8mm

(1)For more information, see Section 10.

(2)The package size (length × width) is a nominal value and

includes pins, where applicable.

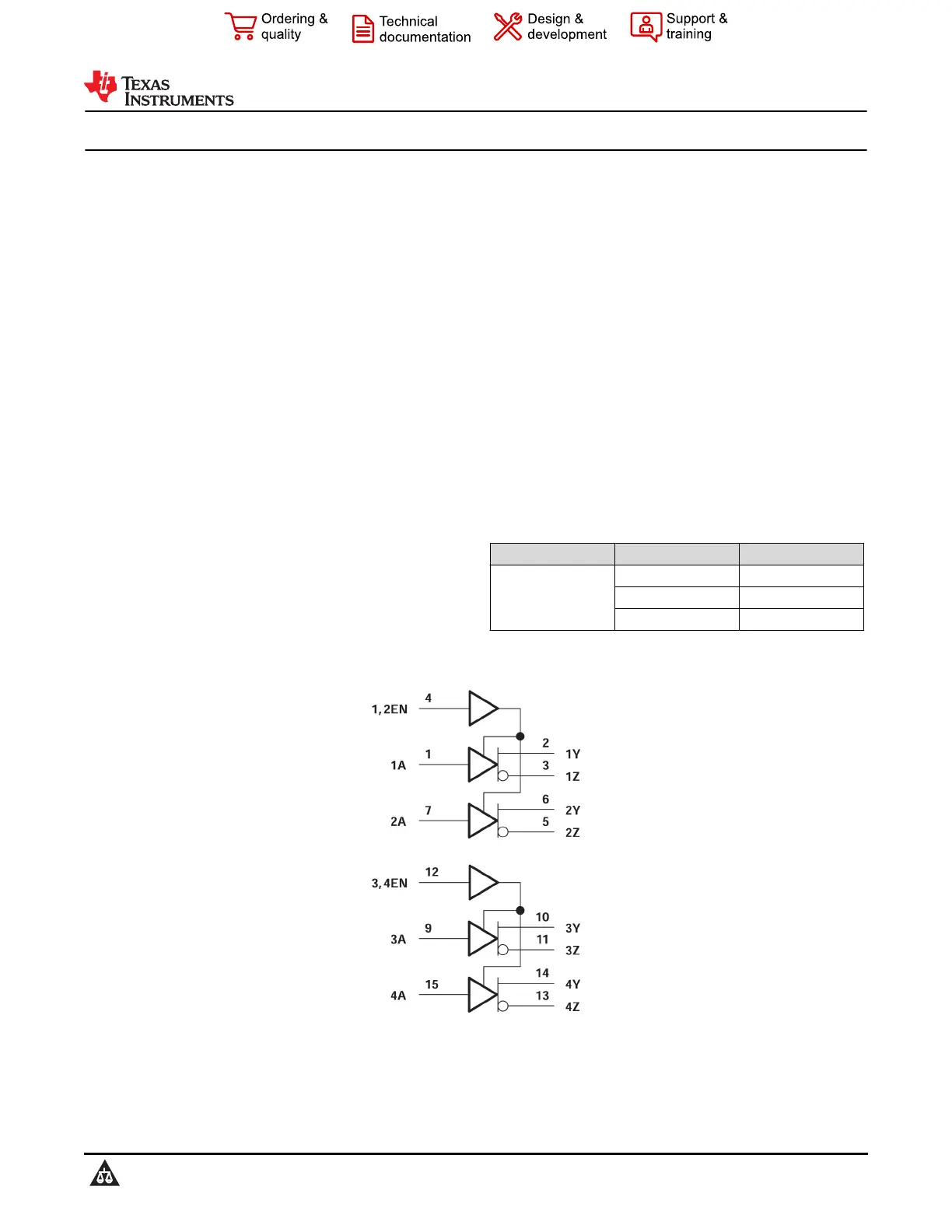

Logic Diagram (Positive Logic)

MC3487

SLLS098D – MAY 1980 – REVISED MARCH 2024

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
