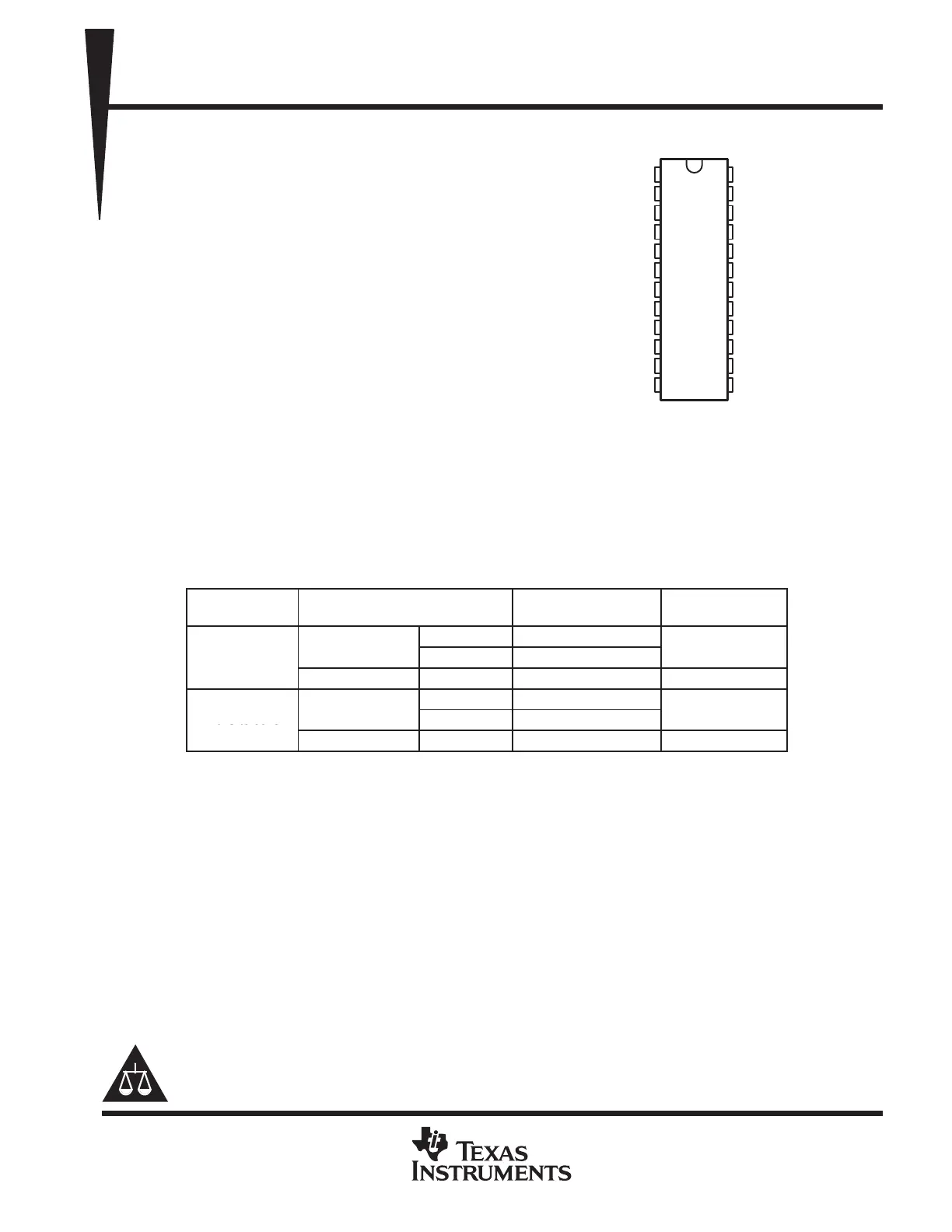

SLLS592B − OCTOBER 2003 − REVISED JANUARY 2004

1

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

DESD Protection for RS-232 I/O Pins

− ±15 kV − Human-Body Model

DMeets or Exceeds the Requirements of

TIA/EIA-232-F and ITU v.28 Standards

DOperates at 5-V V

CC

Supply

DOperates Up To 120 kbit/s

DExternal Capacitors...4 × 0.1 µF

DLatch-Up Performance Exceeds 100 mA Per

JESD 78, Class II

DApplications

− Battery-Powered Systems, PDAs,

Notebooks, Laptops, Palmtop PCs, and

Hand-Held Equipment

description/ordering information

The MAX207 consists of five line drivers, three line receivers, and a dual charge-pump circuit with ±15-kV ESD

protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of

TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and

the serial-port connector. The charge pump and four small external capacitors allow operation from a single 5-V

supply. The devices operate at data signaling rates up to 120 kbit/s and a maximum of 30-V/µs driver output

slew rate.

ORDERING INFORMATION

T

A

PACKAGE

†

ORDERABLE

PART NUMBER

TOP-SIDE

MARKING

SOIC (DW)

Tube of 25MAX207CDW

MAX207C

0°C to 70°C

SOIC (DW)

Reel of 2000MAX207CDWR

MAX207C

0C to 70C

SSOP (DB)Reel of 2000MAX207CDBRMA207C

SOIC (DW)

Tube of 25MAX207IDW

MAX207I

−40°C to 85°C

SOIC (DW)

Reel of 2000MAX207IDWR

MAX207I

−40C to 85C

SSOP (DB)Reel of 2000MAX207IDBRMB207I

†

Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are

available at www.ti.com/sc/package.

Copyright  2004, Texas Instruments Incorporated

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of

TexasInstruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

DB OR DW PACKAGE

(TOP VIEW)

DOUT3

DOUT1

DOUT2

RIN1

ROUT1

DIN2

DIN1

GND

V

CC

C1+

V+

C1−

DOUT4

RIN2

ROUT2

DIN5

DOUT5

DIN4

DIN3

ROUT3

RIN3

V−

C2−

C2+

1

2

3

4

5

6

7

8

9

10

11

12

24

23

22

21

20

19

18

17

16

15

14

13

  !"#$ % &'!!($ #%  )'*+&#$ ,#$(-

!,'&$% &!" $ %)(&&#$% )(! $.( $(!"%  (/#% %$!'"($%

%$#,#!, 0#!!#$1- !,'&$ )!&(%%2 ,(% $ (&(%%#!+1 &+',(

$(%$2  #++ )#!#"($(!%-
