LMV3xx-N/-Q1 Single, Dual, and Quad General Purpose, Low-Voltage, Rail-to-Rail

Output Operational Amplifiers

1 Features

•For V

+

= 5 V and V

−

= 0 V, unless otherwise

specified

•LMV321-N, LMV358-N, and LMV324-N are

available in automotive AEC-Q100 grade 1 and

grade 3 versions

•Ensured 2.7-V and 5-V performance

•No crossover distortion

•Industrial temperature range −40°C to +125°C

•Gain-bandwidth product 1 MHz

•Low supply current

•LMV321-N 130 μA

•LMV358-N 210 μA

•LMV324-N 410 μA

•Rail-to-rail output swing at 10 kΩ V

+

− 10 mV and

V

−

+ 65 mV

•V

CM

range −0.2 V to V

+

− 0.8 V

2 Applications

•Active filters

•General purpose low voltage applications

•General purpose portable devices

3 Description

The LMV358-N and LMV324-N are low-voltage (2.7 V

to 5.5 V) versions of the dual and quad commodity op

amps LM358 and LM324 (5 V to 30 V). The LMV321-

N is the single channel version. The LMV321-N,

LMV358-N, and LMV324-N are the most cost-

effective solutions for applications where low-voltage

operation, space efficiency, and low price are

important. They offer specifications that meet or

exceed the familiar LM358 and LM324. The LMV321-

N, LMV358-N, and LMV324-N have rail-to-rail output

swing capability and the input common-mode voltage

range includes ground. They all exhibit excellent

speed to power ratio, achieving 1 MHz of bandwidth

and 1-V/µs slew rate with low supply current.

Device Information

PART NUMBER

(1)

PACKAGEBODY SIZE (NOM)

LMV321-N

SOT-23 (5)2.90 mm × 1.60 mm

SC70 (5)2.00 mm × 1.25 mm

LMV321-N-Q1SOT-23 (5)2.90 mm × 1.60 mm

LMV324-N

SOIC (14)8.65 mm × 3.91 mm

TSSOP (14)5.00 mm × 4.40 mm

LMV324-N-Q1

SOIC (14)8.65 mm × 3.91 mm

TSSOP (14)5.00 mm × 4.40 mm

LMV358-N

SOIC (8)4.90 mm × 3.91 mm

VSSOP (8)3.00 mm × 3.00 mm

LMV358-N-Q1

SOIC (8)4.90 mm × 3.91 mm

VSSOP (8)3.00 mm × 3.00 mm

(1)For all available packages, see the orderable addendum at

the end of the data sheet.

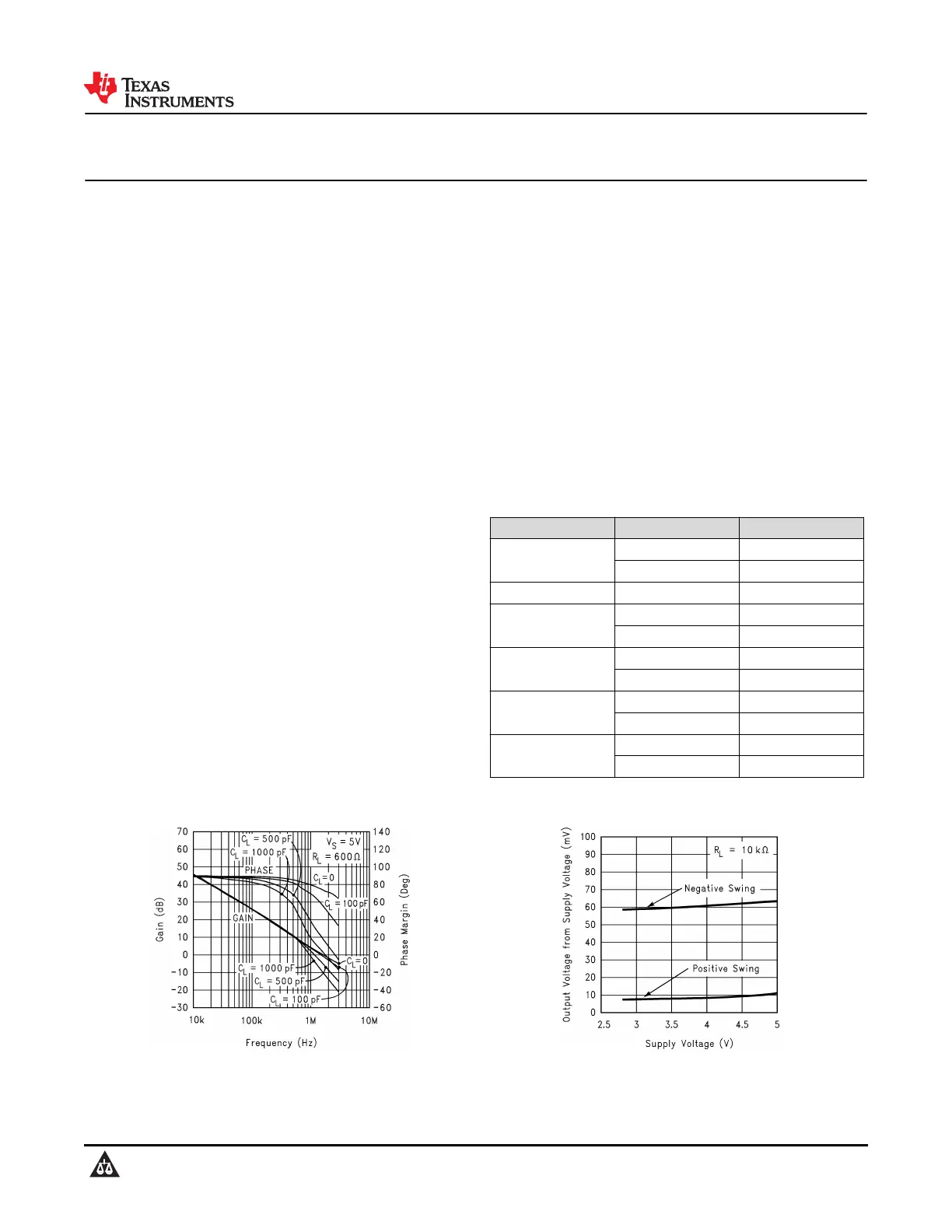

Gain and Phase vs Capacitive Load

Output Voltage Swing vs Supply Voltage

www.ti.com

LMV321-N, LMV321-N-Q1, LMV358-N

LMV358-N-Q1, LMV324-N, LMV324-N-Q1

SNOS012K – AUGUST 2000 – REVISED AUGUST 2020

Copyright ©2020 Texas Instruments Incorporated

Submit Document Feedback

1

Product Folder Links: LMV321-NLMV321-N-Q1LMV358-NLMV358-N-Q1LMV324-NLMV324-N-Q1

LMV321-N, LMV321-N-Q1, LMV358-N

LMV358-N-Q1, LMV324-N, LMV324-N-Q1

SNOS012K – AUGUST 2000 – REVISED AUGUST 2020

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
