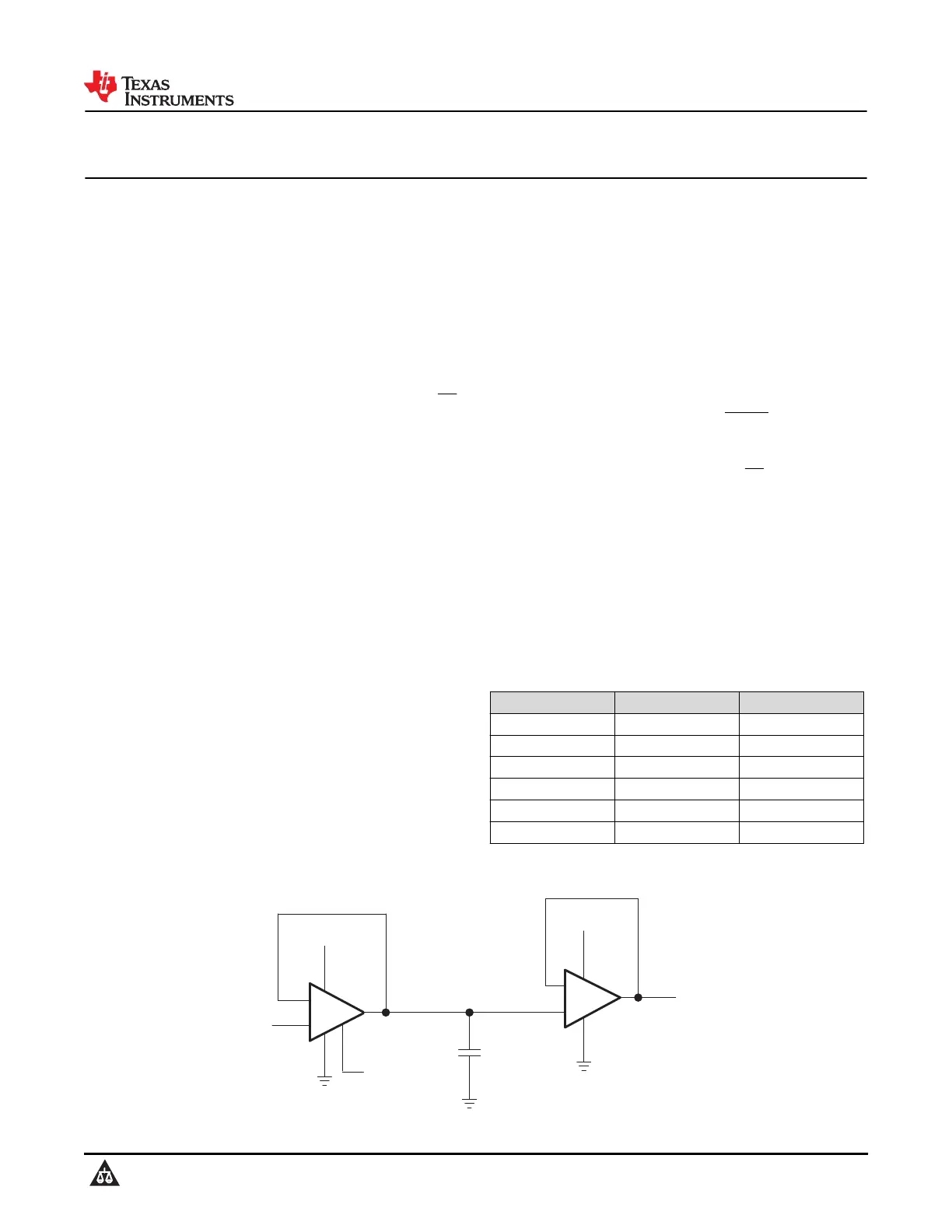

LMV34x Rail-to-Rail Output CMOS Operational Amplifiers

With Shutdown

1 Features

•2.7V and 5V performance

•Rail-to-rail output swing

•Input bias current:1pA (typical)

•Input offset voltage: 0.25mV (typical)

•Low supply current: 100μA (typical)

•Low shutdown current: 45pA (typical)

•Gain bandwidth of 1MHz (typical)

•Slew rate: 1V/μs (typical)

•Turn-on time from shutdown: 5μs (typical)

•Input referred voltage noise (at 10kHz): 20nV/√ Hz

•ESD protection exceeds JESD 22:

–2000V Human-Body Model (HBM)

–750V Charged-device model (CDM)

2 Applications

•Cordless and cellular phones

•Consumer electronics (laptops, PDAs)

•Audio preamplifiers for voice

•Portable, battery-powered electronic equipment

•Supply-current monitoring

•Battery monitoring

•Buffers

•Filters

•Drivers

3 Description

The LMV34x devices are single, dual, and quad

CMOS operational amplifiers, respectively, with low

voltage, low power, and rail-to-rail output swing

capabilities. The PMOS input stage offers an ultra-

low input bias current of 1pA (typical) and an

offset voltage of 0.25mV (typical). The single-supply

amplifier is designed specifically for low-voltage

(2.7V to 5V) operation, with a wide common-mode

input voltage range that typically extends from –0.2V

to 0.8V from the positive supply rail. The LMV341

(single) also offers a shutdown ( SHDN) pin that can

be used to disable the device. In shutdown mode, the

supply current is reduced to 33nA (typical). Additional

features of the family are a 20nV/√ Hz voltage noise

at 10kHz, 1MHz unity-gain bandwidth, 1V/μs slew

rate, and 100μA current consumption per channel.

Offered in both the SOT-23 and smaller SC70

packages, the LMV341 is suitable for the most space-

constraint applications. The LMV342 dual device is

offered in the standard SOIC and VSSOP packages.

An extended industrial temperature range from –40°C

to 125°C makes these devices suitable in a wide

variety of commercial and industrial environments.

Package Information

PART NUMBER

(1)

PACKAGEBODY SIZE (NOM)

LMV341IDCKDCK (SC70, 6)2.00mm × 1.25mm

LMV341IDBVDBV (SOT-23, 6)2.90mm ×1.60mm

LMV342IDD (SOIC, 8)4.90mm × 3.91mm

LMV342IDGKDGK (VSSOP, 8)3.00mm × 3.00mm

LMV344IDD (SOIC, 14)8.65mm × 3.91mm

LMV344IPWPW (TSSOP, 14)5.00mm × 4.40mm

(1)For all available packages, see the orderable addendum at

the end of the data sheet.

V

+

V

O

−

+

V

I

−

+

C = 200 pF

V

+

Sample

Clock

Sample-and-Hold Circuit

LMV341, LMV342, LMV344

SLOS447J – SEPTEMBER 2004 – REVISED JUNE 2025

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
