LSF0102 2 Channel Auto-Bidirectional Multi-Voltage Level Translator

for Open-Drain and Push-Pull Applications

1 Features

•Provides bidirectional voltage translation with no

direction pin

•Supports up to 100MHz up translation and greater

than 100MHz down translation at

≤ 30pF capacitive load and up To 40MHz up or

down translation at 50pF capacitive load

•Allows bidirectional voltage-level translation

between

–0.95V ↔ 1.8/2.5/3.3/5V

–1.2V ↔ 1.8/2.5/3.3/5V

–1.8V ↔ 2.5/3.3/5V

–2.5V ↔ 3.3/5V

–3.3V ↔ 5V

•Low standby current

•5V tolerance I/O port to support TTL

•Low R

ON

provides less signal distortion

•High-impedance I/O pins for EN = Low

•Flow-through pinout for easy PCB trace routing

•Latch-up performance >100mA per JESD 17

•–40°C to 125°C operating temperature range

2 Applications

•GPIO, MDIO, PMBus, SMBus, SDIO, UART, I

2

C,

and other interfaces in telecom infrastructure

•Enterprise systems

•Communications equipment

•Personal electronics

•Industrial applications

3 Description

The LSF family of devices supports bidirectional

voltage translation without the need for DIR pin which

minimizes system effort (for PMBus, I

2

C, SMBus, and

so forth). The LSF family of devices supports up

to 100MHz up translation and greater than 100MHz

down translation at ≤ 30pF capacitive load and up

to 40MHz up or down translation at 50pF capacitive

load which allows the LSF family to support more

consumer or telecom interfaces (MDIO or SDIO).

LSF family supports 5V tolerance on I/O port which

makes it compatible with TTL levels in industrial and

telecom applications. The LSF family is able to set up

different voltage translation levels which makes it very

flexible.

Package Information

PART NUMBERPACKAGE

(1)

PACKAGE SIZE

(2)

LSF0102

DQE (X2SON, 8)1.4mm × 1mm

YZT (DSBGA, 8)1.98mm × 0.98mm

DCT (SM8, 8)2.95mm × 4mm

DCU (VSSOP, 8)2mm × 3.1mm

DDF (SOT-23, 8)2.9mm × 2.8mm

DTM (X2SON, 8)1.35mm x 0.80mm

(1)For more information, see Section 10.

(2)The package size (length × width) is a nominal value and

includes pins, where applicable.

V

REFA

27

V

REFB

SW

EN8

B1

SW

A1

B2A2

3

4

6

5

GND

1

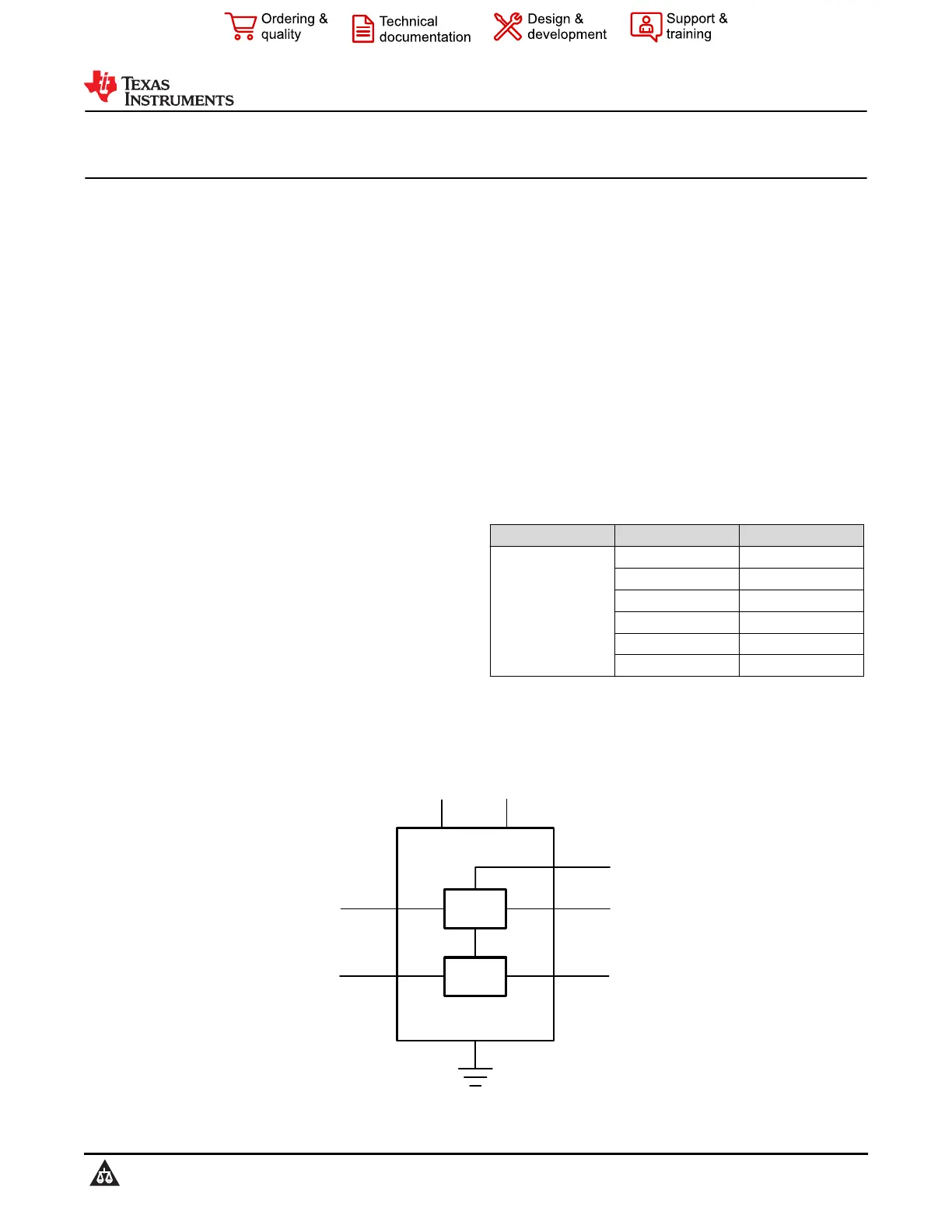

Functional Block Diagram

LSF0102

SDLS972B – APRIL 2023 – REVISED APRIL 2024

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
