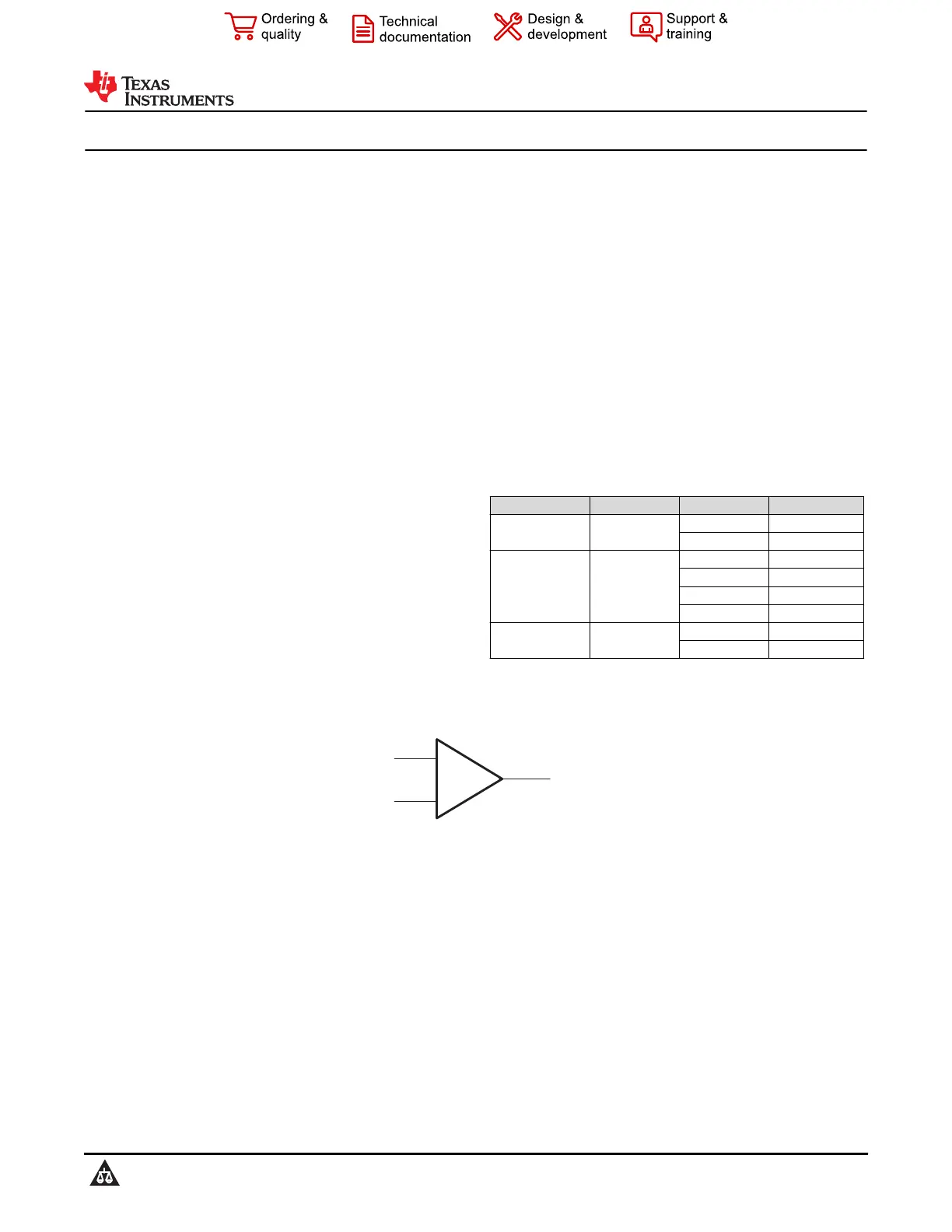

LMV3xx Low-Voltage Rail-to-Rail Output Operational Amplifier
1 Features
•For an upgraded version - refer to LMV321A,
LMV358A, and LMV324A
•2.7-V and 5-V performance
•–40°C to +125°C operation
•No crossover distortion
•Low supply current
–LMV321: 130 μA (typical)
–LMV358: 210 μA (typical)
–LMV324: 410 μA (typical)
•Rail-to-rail output swing
•ESD protection exceeds JESD 22
–2000-V human-body model
–1000-V charged-device model
2 Applications
•Desktop PCs
•HVAC: heating, ventilating, and air conditioning
•Motor control: AC induction
•Net-books
•Portable media players
•Power: telecom DC/DC module: digital
•Professional audio mixers
•Refrigerators
•Washing machines: high-end and low-end
3 Description
For an upgraded version with enhanced performance,
please refer to LMV321A, LMV358A, and LMV324A.
The LMV321, LMV358, and LMV324 devices are
single, dual, and quad low-voltage (2.7 V to 5.5 V)
operational amplifiers with rail-to-rail output swing.
These devices are the most cost-effective solutions
for applications where low-voltage operation, space
saving, and low cost are needed. These amplifiers
are designed specifically for low-voltage (2.7 V to 5
V) operation, with performance specifications meeting
or exceeding the LM358 and LM324 devices that
operate from 5 V to 30 V. With package sizes down to
one-half the size of the DBV (SOT-23) package, these
devices can be used for a variety of applications.
Device Information
PART NUMBERCHANNEL COUNTPACKAGE
(1)
PACKAGE SIZE
(2)
LMV321Single
DBV (SOT-23, 5)2.90 mm × 2.80 mm
DCK (SC-70, 5)2.00 mm × 2.10 mm
LMV358Dual
D (SOIC, 8)4.90 mm × 6.00 mm
DDU (VSSOP, 8)2.00 mm × 3.10 mm
DGK (VSSOP, 8)3.00 mm × 4.90 mm
PW (TSSOP, 8)3.00 mm × 6.40 mm
LMV324Quad
D (SOIC, 14)8.65 mm × 6.00 mm
PW (TSSOP, 14)5.00 mm × 6.40 mm
(1)For all available packages, see the orderable addendum at
the end of the data sheet.
(2)The package size (length × width) is a nominal value and
includes pins, where applicable.
+
–
IN–
IN+
OUT
Simplified Schematic
LMV358, LMV321, LMV324, LMV324S
SLOS263Y – AUGUST 1999 – REVISED AUGUST 2023
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
