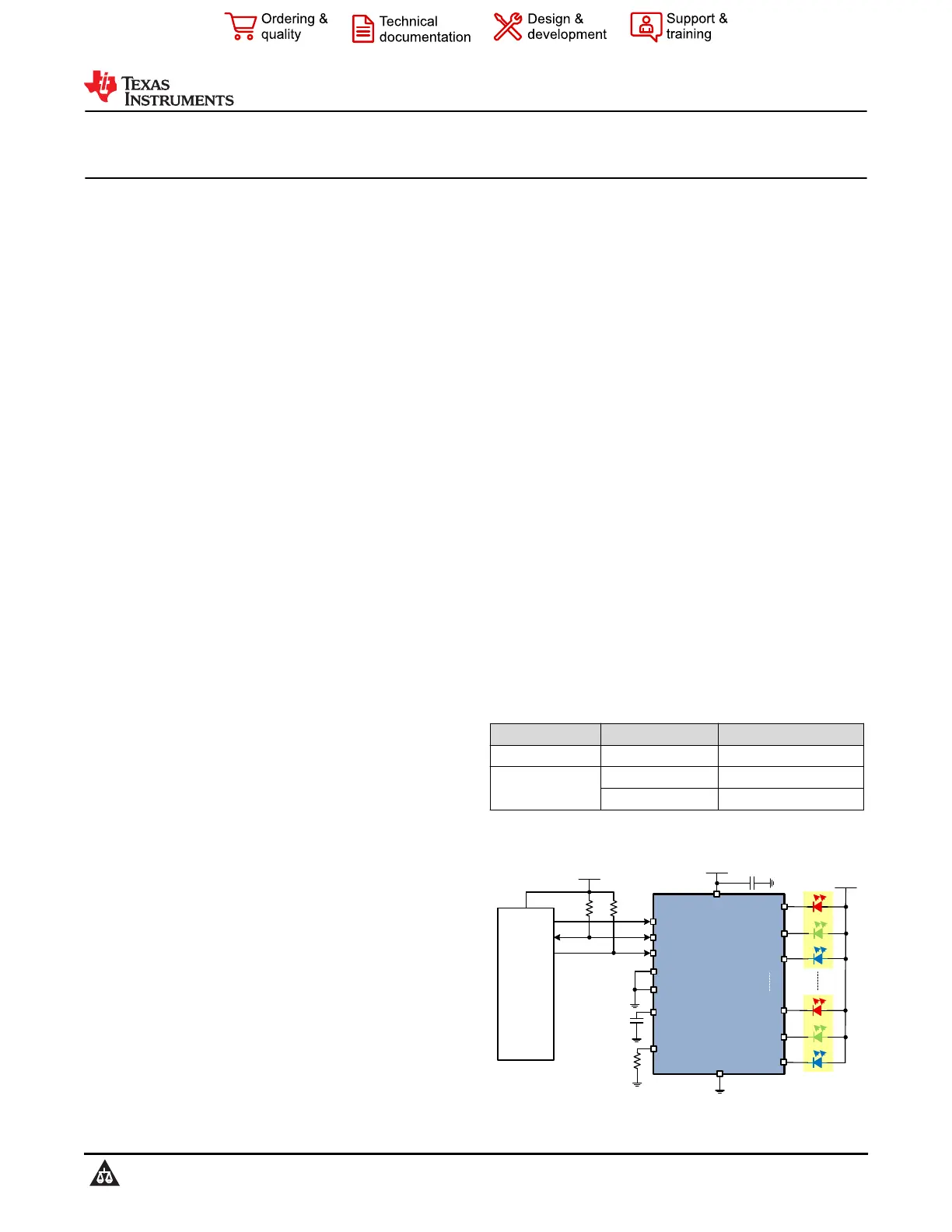

LP50xx 18-, 24-Channel, 12-Bit, PWM Ultralow-Quiescent-Current, I

2

C RGB LED

Drivers

1 Features

•Operating voltage range:

–V

CC

range: 2.7V to 5.5V

–EN, SDA, and SCL pins compatible with

1.8V, 3.3V, and 5V power rails

–Output maximum voltage: 6V

•24 constant-current sinks with high precision

–25.5mA maximum per channel with V

CC

in full

range

–35mA maximum per channel when V

CC

≥ 3.3V

–Device-to-device error: ±7%; channel-to-

channel error: ±7%

•Ultralow quiescent current:

–Shutdown mode: 1µA (maximum) with EN low

–Power saving mode: 10µA (typical) with EN

high and all LEDs off for > 30ms

•Integrated 12-bit, 29kHz PWM generator for each

channel:

–Independent color-mixing register per channel

–Independent brightness-control register per

RGB LED module

–Optional logarithmic- or linear-scale brightness

control

–Integrated 3-phase PWM-shifting scheme

•3 programmable banks (R, G, B) for easy software

control of each color

•2 external hardware address pins allow connecting

up to 4 devices

•Broadcast slave address allows configuring

multiple devices simultaneously

•Auto-increment allows writing or reading

consecutive registers within one transmission

•Up to 400kHz fast-mode I

2

C speed

2 Applications

LED lighting, indicator lights, and fun lights for:

•Smart speaker (with voice assistant)

•Smart home appliances

•Video doorbell

•Electronic smart lock

•Smoke and heat detector

•STB and DVR

•Smart router

•Handheld device

3 Description

In smart homes and other applications that use

human-machine-interaction, high-performance RGB

LED drivers are required. LED animation effects

such as flashing, breathing, and chasing greatly

improve user experience, and minimal system noise

is essential.

The LP50xx device is an 18- or 24-channel constant

current sink LED driver. The LP50xx device includes

integrated color mixing and brightness control,

and pre-configuration simplifies the software coding

process. Integrated 12-bit, 29kHz PWM generators for

each channel enable smooth, vivid color for LEDs,

and eliminate audible noise.

Device Information

(1)

PART NUMBERPACKAGEBODY SIZE (NOM)

LP5024VQFN (32)4.00mm × 4.00mm

LP5018

VQFN (32)4.00mm × 4.00mm

VSSOP (28)7.30mm × 3.00mm

(1)For all available packages, see the orderable addendum at

the end of the data sheet.

EN

SDA

SCL

OUT0

OUT1

OUT23

MCU

VCC

GND

LP5024

ADDR0

OUT2

VLED

IREF

OUT22

OUT21

VCAP

ADDR1

CVCAP

RIREF

VMCU

VCC

CVCC

Simplified Schematic

LP5018, LP5024

SLVSEB8C – OCTOBER 2018 – REVISED JULY 2024

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
