BZX884Cx-Q1 Automotive Zener Voltage Regulator Diodes in DFN1006

1 Features

•Total power dissipation: 250mW (max)

•Tolerance: ±5%

•Temperature range: -55°C to +150°C

•AEC-Q101 qualified

•Leaded package used for automatic optical

inspection (AOI)

2 Applications

•Voltage regulation

•Over-voltage protection

3 Description

The BZX884Cx-Q1 is a family of voltage regulating

diodes in a DFN1006 package. The diodes are

available in Zener voltages ranging from 5.6V to 39V.

Package Information

PART NUMBERPACKAGE

(1)

PACKAGE SIZE

(2)

BZX884Cx-Q1DPY (DFN1006, 2)1.0mm × 0.6mm

(1)For more information, see Section 8.

(2)The package size (length × width) is a nominal value and

includes pins, where applicable.

Anode

Cathode

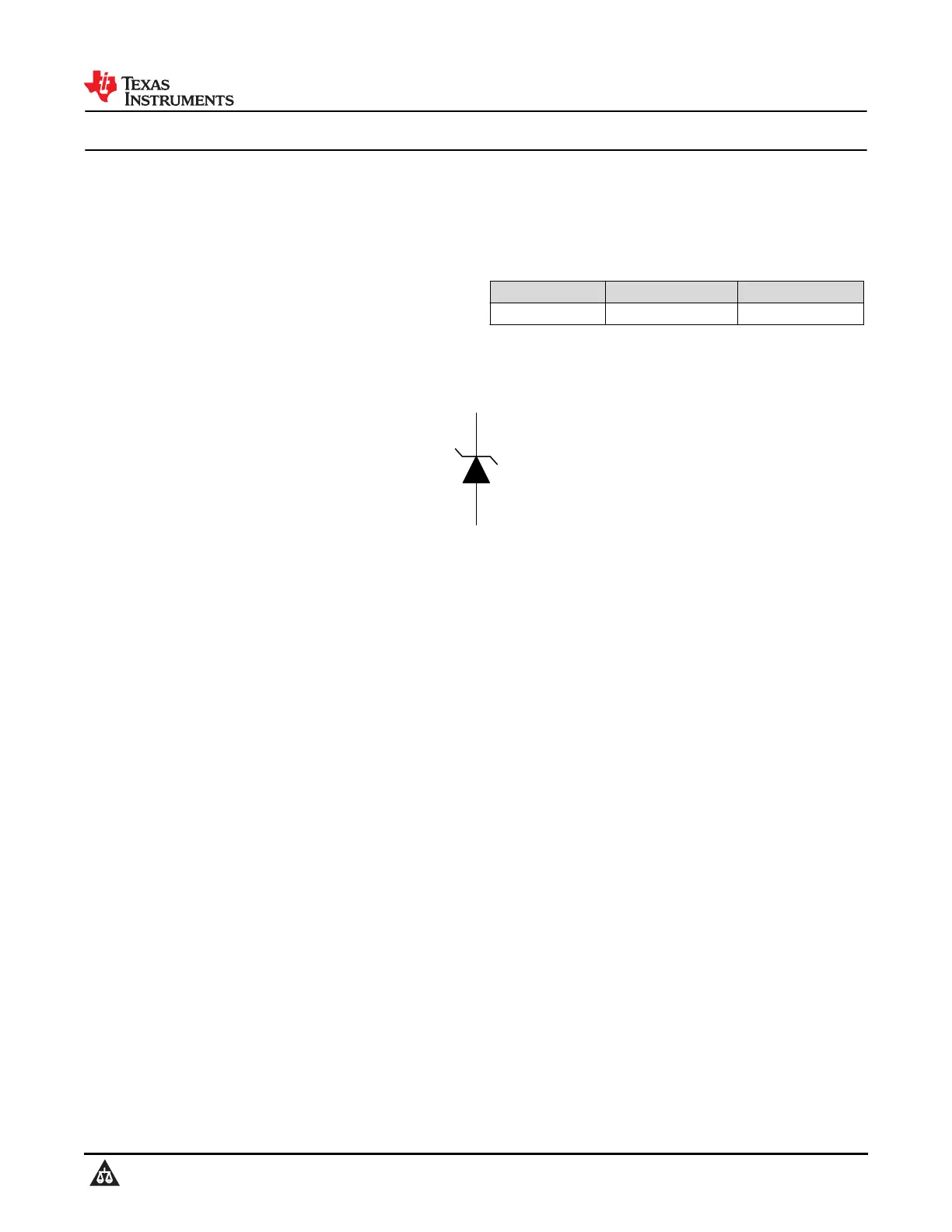

Functional Block Diagram

BZX884C5V6-Q1, BZX884C6V8-Q1, BZX884C9V1-Q1, BZX884C15V-Q1, BZX884C16V-Q1, BZX884C18V-

Q1, BZX884C27V-Q1, BZX884C39V-Q1, BZX884C8V2-Q1

SLVSJ28 – DECEMBER 2025

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
