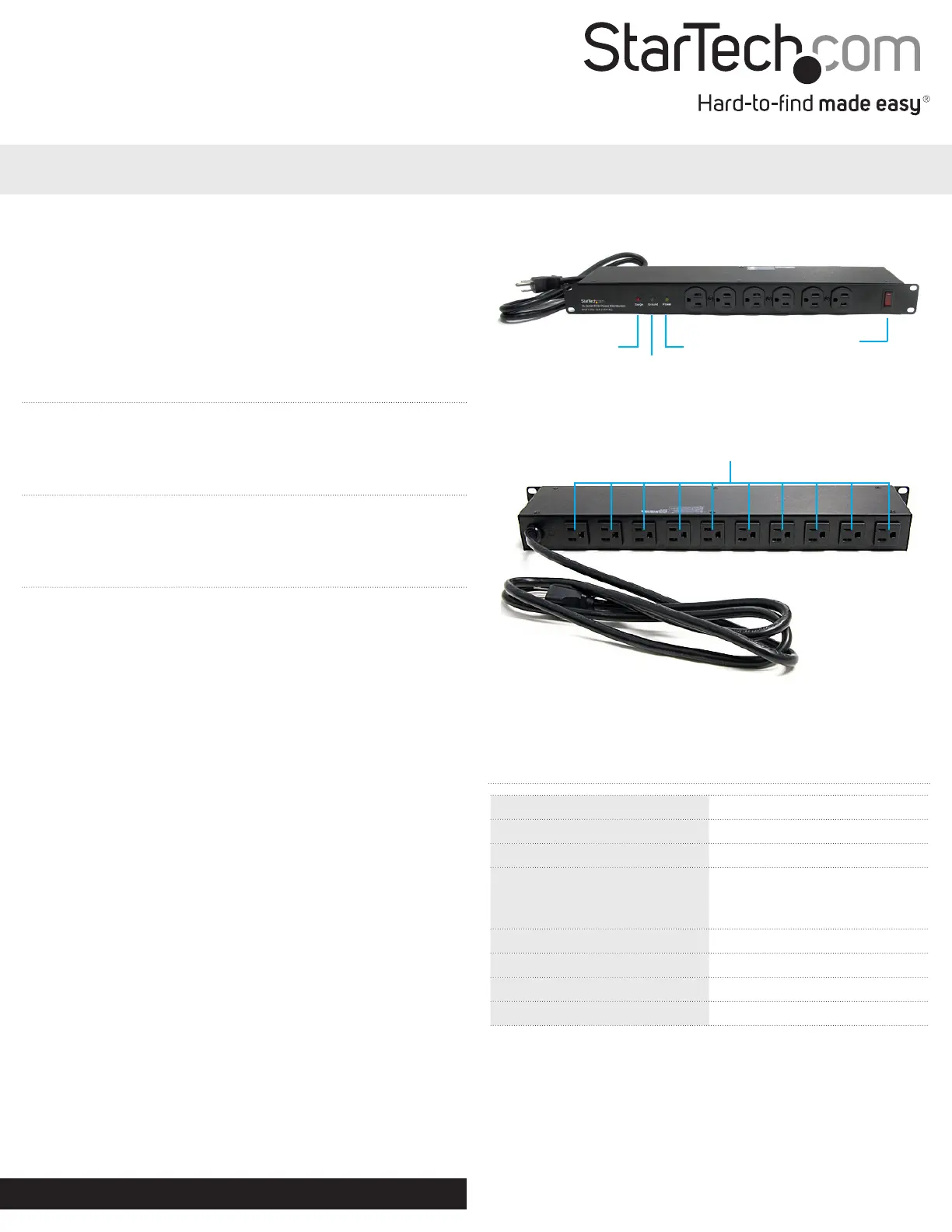

Instruction Manual
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Manual Revision: 08/13/2020
For the most up-to-date information, please visit: www.startech.com
Packaging Contents
• RKPW161915 Power Distribution Unit
• Installation Guide
System Requirements
• 19” front/rear mounting rack/cabinet (EIA 310-D compliant)
• 125VAC power source
RKPW161915
16 Outlet PDU Power Distribution Unit 125V 15A (12A UL)
*actual product may vary from photos
Installation
1. The power distribution unit takes up 1U of rack space, so locate an
appropriate location on the rack and mount it against the front or
rear mounting posts.
2. Using the mounting hardware (screws, nuts, etc.) provided with
your rack or from your rack manufacturer, secure the unit to the
posts.
3. Connect the power cable from the distribution unit to a 125VAC
power source.
Note: It is recommended that the unit be connected directly to a
main source and not another distribution unit.
4. Toggle the “Reset” switch on the front of the unit to the ‘on’
position to energize the unit.
5. The “Power” and “Surge” LEDs should light up to indicate surge
protection is active. The “Ground” LED should light up to indicate
proper grounding is present.
Note: If the “SURGE” LED indicator is o, the surge protection circuit
is compromised. Power cycle the power strip by toggling the power
switch to the “OFF” position and back to the “ON” position. If a
power cycle does not remedy the issue, it is likely the power strip has
absorbed a power surge. Please contact your authorized
StarTech.com reseller to purchase a replacement, or StarTech.com if
you require additional support.
6. You may now attach your 125VAC compatible devices to the
distribution unit.
Note: Combined power draw from all devices should not exceed
15A, otherwise the built-in circuit breaker will trip.
7. In the event of an overload scenario, the built-in circuit breaker
will be tripped and power to all outlets will be stopped.
8. Disconnect the problem device or all devices from the distribution
unit and toggle the “Reset” switch to turn the ports back on.
NEMA 5-15 outlets
Reset switch
Ground LED
Surge LED
Power LED
Front View
Rear View
Specications
Number of Power Outlets16
Connectors16 x NEMA 5-15 female
Electrical Rating125VAC / 15A
LEDs
1 x Ground (green)
1 x Surge (red)
1 x Power (yellow)
Operating Temperature-5
o
C to 45
o
C (23
o
F to 113
o
F)
Storage Temperature-25
o
C to 65
o
C (-13
o
F to 149
o
F)
Dimensions482.6mm x 95.5mm x 42.7mm
Weight2360g
Product specificaties
| Merk: | StarTech.com |
| Categorie: | Niet gecategoriseerd |
| Model: | RKPW161915 |
| Kleur van het product: | Zwart |
| Gewicht: | 2360 g |
| Breedte: | 95.5 mm |
| Diepte: | 483 mm |
| Hoogte: | 43 mm |
| Snoerlengte: | 1.8 m |
| Gewicht verpakking: | 2200 g |
| Breedte verpakking: | 204 mm |
| Diepte verpakking: | 550 mm |
| Hoogte verpakking: | 82 mm |
| Gebruikershandleiding: | Ja |
| Materiaal behuizing: | Staal |
| LED-indicatoren: | Ja |
| Aan/uitschakelaar: | Ja |
| Duurzaamheidscertificaten: | CE, RoHS |
| Temperatuur bij opslag: | -25 - 65 °C |
| Spanning: | 125 V |
| Montage: | Horizontaal |
| Stekker: | NEMA 5–15 |
| (Buitenste) hoofdverpakking hoogte: | 250 mm |
| (Buitenste) hoofdverpakking breedte: | 530 mm |
| (Buitenste) hoofdverpakking lengte: | 534 mm |
| Hoeveelheid per (buitenste) hoofdverpakking: | 6 stuk(s) |
| Rackcapaciteit: | 1U |
| Bedrijfstemperatuur (T-T): | -5 - 45 °C |
| Surge energy rating: | 1800 J |
| Aantal AC uitgangen: | 16 AC-uitgang(en) |
| Nominale input voltage: | 120 V |
| Stopcontacttypes: | NEMA 5–15 |
| PDU types: | Basis |
| Netspanning, in bedrijf: | 120 V |
| Spanningsbeveiliging: | Ja |
| Laad-capaciteit: | 1800 VA |
| Maximale ingang stroom per fase: | 15 A |
| Maximum totaalstroomverbruik per fase: | 15 A |
