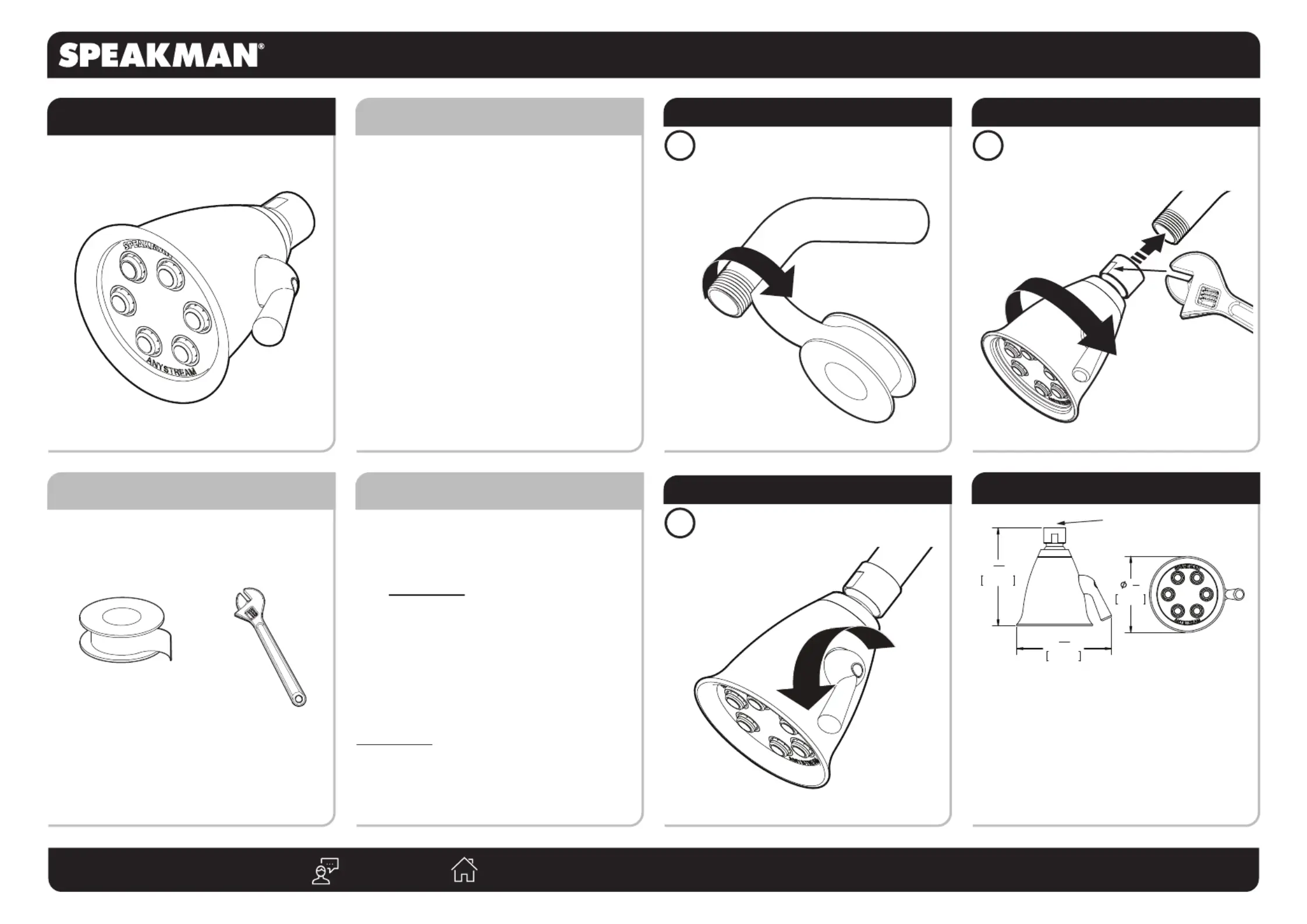

SR-2256 SERIES

INSTALLATION INSTRUCTIONS

Icon Shower Head

TOOLS & SUPPLIES NEEDED

Thread Seal Tape

(INCLUDED)

Adjustable

Wrench

IMPORTANT

MAINTENANCE

SAFETY TIPS:

Be sure to read and understand all instructions

before beginning installation.

Inspect all connections after installation.

Cover the drain to avoid loss of parts.

Be sure to wear proper eye protection.

Do NOT over tighten any connections or damage

may occur.

Shut OFF water supplies before beginning

installation.

Observe all local plumbing and building codes.

Periodic cleaning using a mild soap and warm

water will help keep your shower’s appearance in

its original condition.

For best results, dry immediately with a soft, clean

cloth. DO NOT USE harsh and/or abrasive

cleaners.

To help restore the finish, occasionally apply a

non-abrasive wax to your shower (follow

manufacturers’ instructions).

On CHROME PLATED SHOWERS, a two (2) part

white vinegar, one (1) part water solution can be

used to break down excessive mineral deposits on

the sprays. Let the showerhead soak in the solution

for about ½ hour then rinse thoroughly. Brush off

any remaining mineral deposits if necessary.

DO NOT USE the vinegar/water treatment on any

finish other than Chrome.

To reduce mineral build-up, turn the handle to

FLOOD position to let the water drain out after

every use.

APPLY THREAD SEAL TAPE

1

Apply the included Thread Seal Tape to the

outlet side of shower arm in a clockwise

direction.

INSTALL SHOWER HEAD

2

Thread Shower Head onto shower arm by

turning it in a clockwise direction. Tighten with

Adjustable Wrench. Turn water supply on and

check for leaks.

ADJUST SPRAY PATTERN

3

Adjust spray pattern by rotating side handle

to preferred Anystream

®

position.

Inlet: 1/2” NPT FEMALE

Model: -E175SR-2256

Max. Flow Rate: 1.75 gpm (6.6 L/min)

Min. Flow Rate: 1.5 gpm (5.7 L/min) @ 45psi

FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED AT

5.7 L/MIN (1.50 GPM) OR LESS.

Model: SR-2256-E2

Max. Flow Rate: 2.0 gpm (7.6 L/min)

Min. Flow Rate: 1.75 gpm (6.6 L/min) @ 45psi

FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED AT

6.6 L/MIN (1.75 GPM) OR LESS.

4

3

16

"

106mm

4

1

16

"

103mm

3

1

4

"

82mm

ROUGH IN DIAGRAM
