INSTRUCTIONS FOR MODELS

92-CPT-8401-P-02

For additional assistance or service please contact:

SPEAKMAN

®

800-537-2107

customerser[email protected]

www.speakman.com

CPT-8401-P

TOOLS AND SUPPLIES

Phillips

Screwdriver

Measuring

Tape

Warranty information can be found at:

www.speakman.com

WARRANTY

MAINTENANCE

Cover your drain to prevent loss of parts.

SAFETY TIPS

IMPORTANT

• Be sure to read instructions thoroughly before

beginning installation.

• Do not over-tighten any connections or damage

may occur.

• Be sure to have properly adjusted the Temperature

Limiting Stop (TLS) as per the Valve Installation

Instructions before installing Valve Trim.

Your new Speakman Product is designed for years of

trouble-free performance. Keep it looking new by

cleaning it periodically with a soft cloth. The use of harsh

chemicals and abrasives on any of the Speakman custom

finish products may damage the finish and void the

product warranty. Please be sure to only use approved

cleaners. Please contact Speakman for any clarification

of acceptable cleaners.

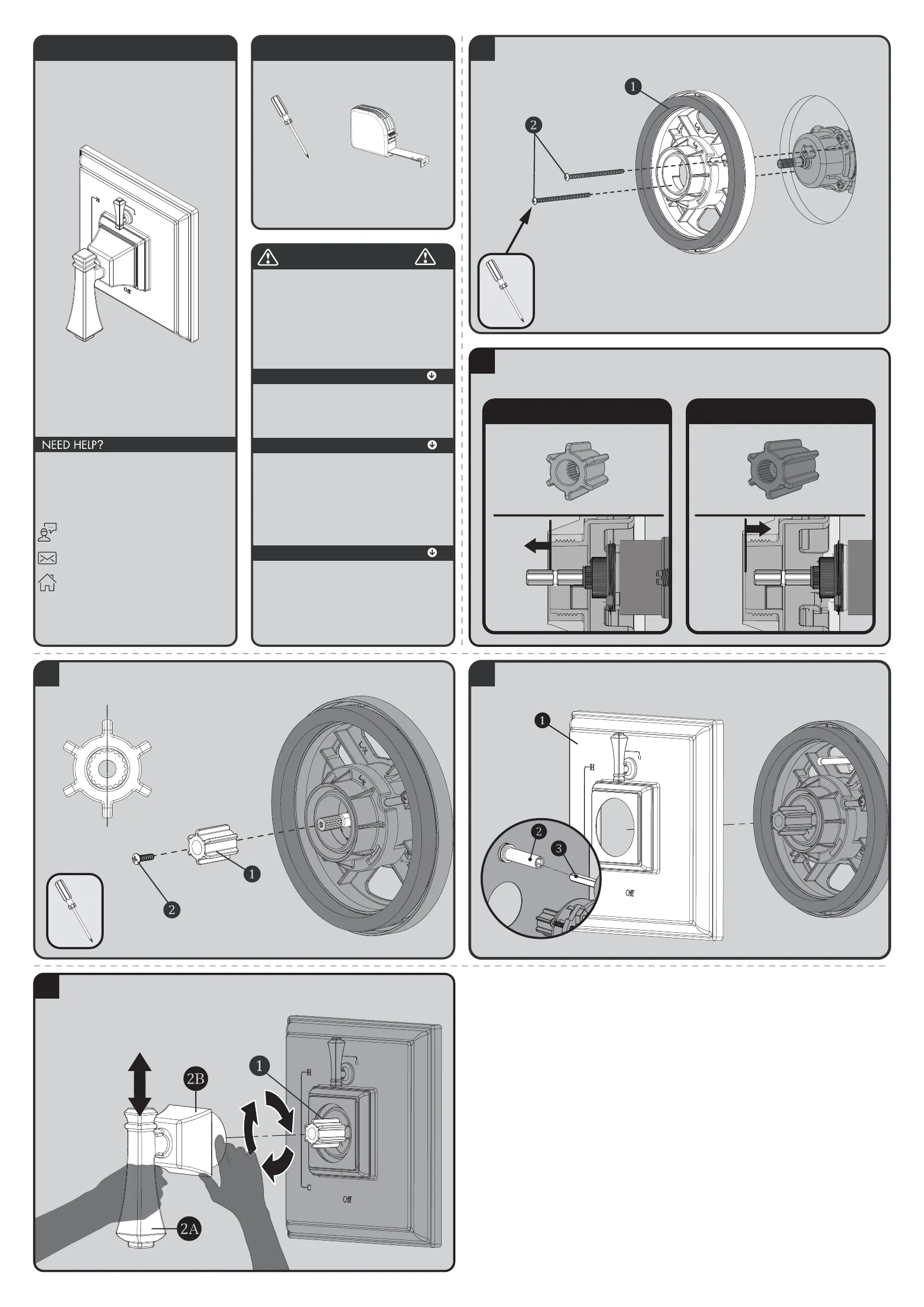

1

Clean wall surface. Place Mounting Base (1) onto the valve, align mounting holes, and secure with

supplied screws (2).

2

Verify the position of the Spindle within the Mounting Plate as shown below. If the end of the Spindle

extends beyond the inside lip of the Mounting Plate, then use the Shallow Mount Adapter. If the end

of the Spindle is flush to, or is within the Mounting Plate, then use the Deep Mount Adapter.

FOR SHALLOW MOUNT APPLICATION

FOR DEEP MOUNT APPLICATION

3

Confirm that Valve is in the “Off” position. Place appropriate Connector (1) on to the Spindle of the

Valve, making sure to orient the Connector so that one set of Splines are in a perfectly vertical

position. Secure Connector with 8-32 screw provided (2).

Splines in Vertical Position

4

Place Wall Plate (1) on Mounting Base. Take care to orient the Wall Plate as shown below. Verify the

Diverter Valve Stem is in the OFF (vertical) position. Align the Diverter Drive Tube (2) on the Wall

Plate to the Stem (3) of the Diverter Valve.

* VIEW FROM BACK OF WALL PLATE

5

Align Handle Assembly with Connector (1) and Escutcheon. Keep Handle (2A) in a stationary

vertical position as you thread Handle Hub (2B) onto the Mounting Base. Tighten until snug.
