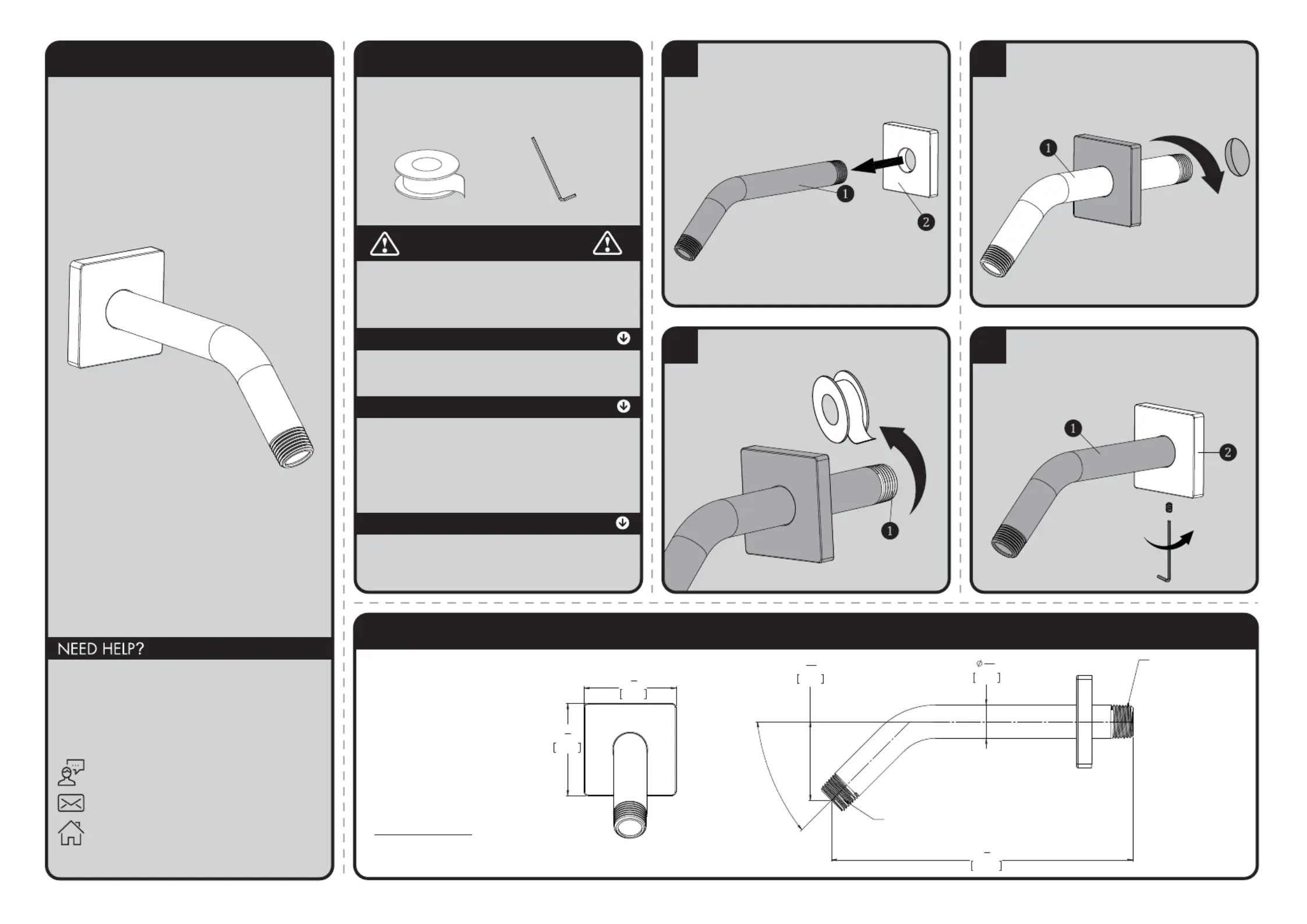

INSTRUCTIONS FOR MODELS
92-CDS2501-01
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
customerser[email protected]
www.speakman.com
CDS2501
TOOLS AND SUPPLIES
IMPORTANT
SAFETY TIPS
Cover your drain to prevent loss of parts.
MAINTENANCE
WARRANTY
Additional warranty information can be found at:
www.speakman.com
Thread Seal
Tape
Allen Wrench
(Included)
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur.
Your new Shower Arm is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. Avoid
abrasive cleaners, steel wool and harsh chemicals
as these will dull the finish and void your warranty.
1
Slide Escutcheon Plate (2) over the long
end of the Shower Arm (1).
2
Apply Thread Seal Tape to inlet side of
Shower Arm (1).
3
Thread Shower Arm (1) into Female Pipe
Fitting within the wall. Firmly tighten, and
make sure Shower Arm (1) Outlet is
pointing in a downward position.
4
Position Escutcheon Plate (2) flat against
wall. Secure Escutcheon Plate (2) to Shower
Arm (1) by tightening set screw with Allen
Wrench (Hex: 2.0mm) provided.
ROUGH IN DIMENSIONS
Specifications:
Supply Inlet: 1/2" NPT
Outlet: 1/2" NPT
2
1
4
"
57mm
2
1
4
"
57mm
7
3
8
"
187mm
1
15
16
"
49mm
45°
13
16
"
21mm
1/2-14 NPT
THREADED
INLET
1/2-14 NPT
THREADED
OUTLET
