Inner slide

Middle slide

Front bracket

Rear bracket

Switch down/up

Front bracket

Rear bracket

Inner slide

Inner slide

Switch down/up

RMS09-20

20" Ball bearing sliding rail kit for rackmount chaasis

www.silverstonetek.com

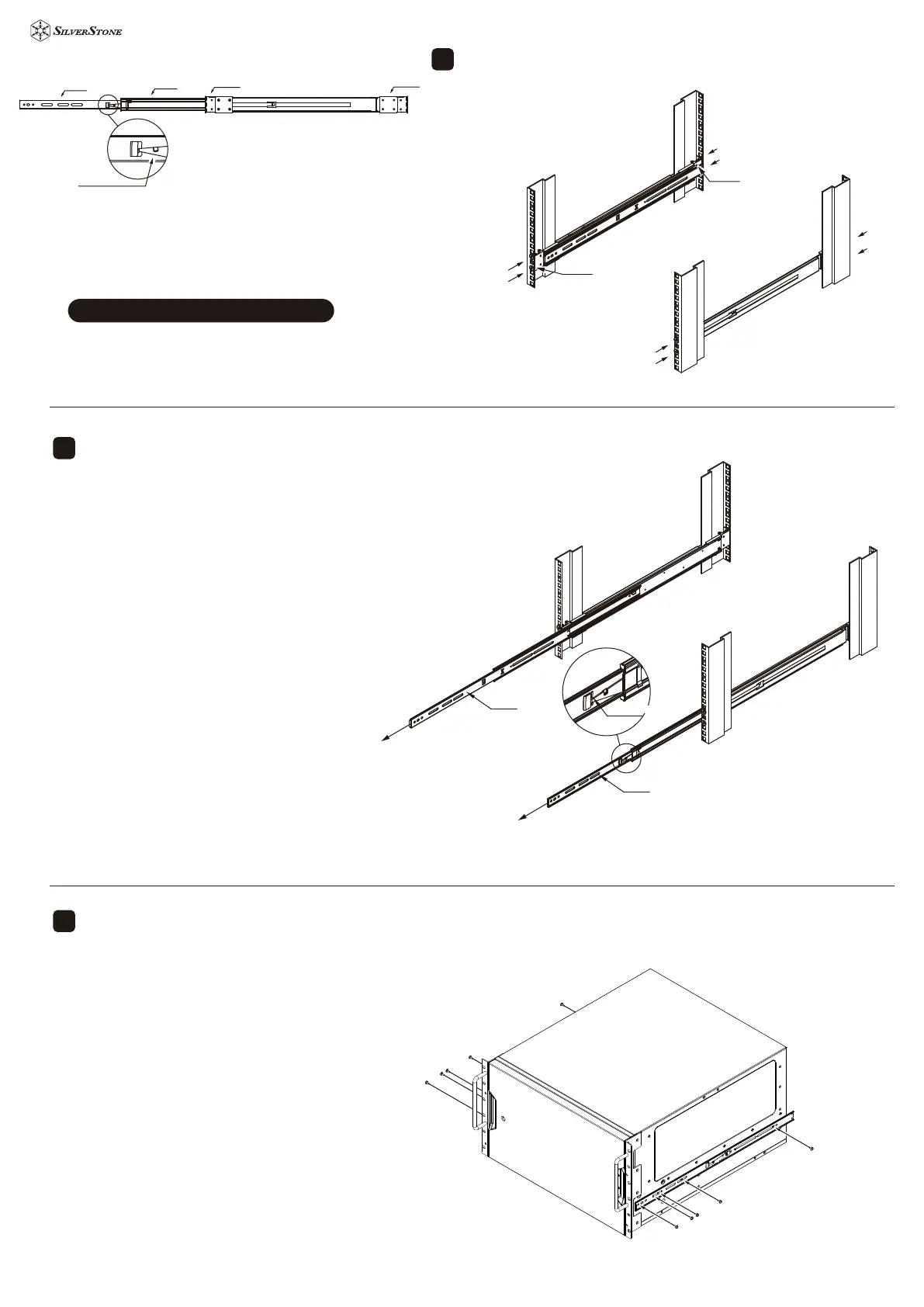

Please lift the slide and align the screw holes at theshort (front) bracket end of the slide rail with

the inner side of the front installation column of the cabinet, ensuring that the bolt withstep limit

is fixed in the positive 1U square hole and installed in place

Please use hand to exert force and stretch the slide along the expansion direction until it

is in place. After hearing two clicking sounds, use fingertip to push the spring tab in the up

and down direction of the slide as shown in the figure, which will unlock the inner slide.

Then, use hand to synchronize and pull out the inner slide along the expansion direction

of the slide completing the disassembly action.

Please align inner slide installation holes with the corresponding screw holes

on both sides of the chassis, and tighten the bolts in place to ensure safety

and reliability.

1

2

3
