User manual

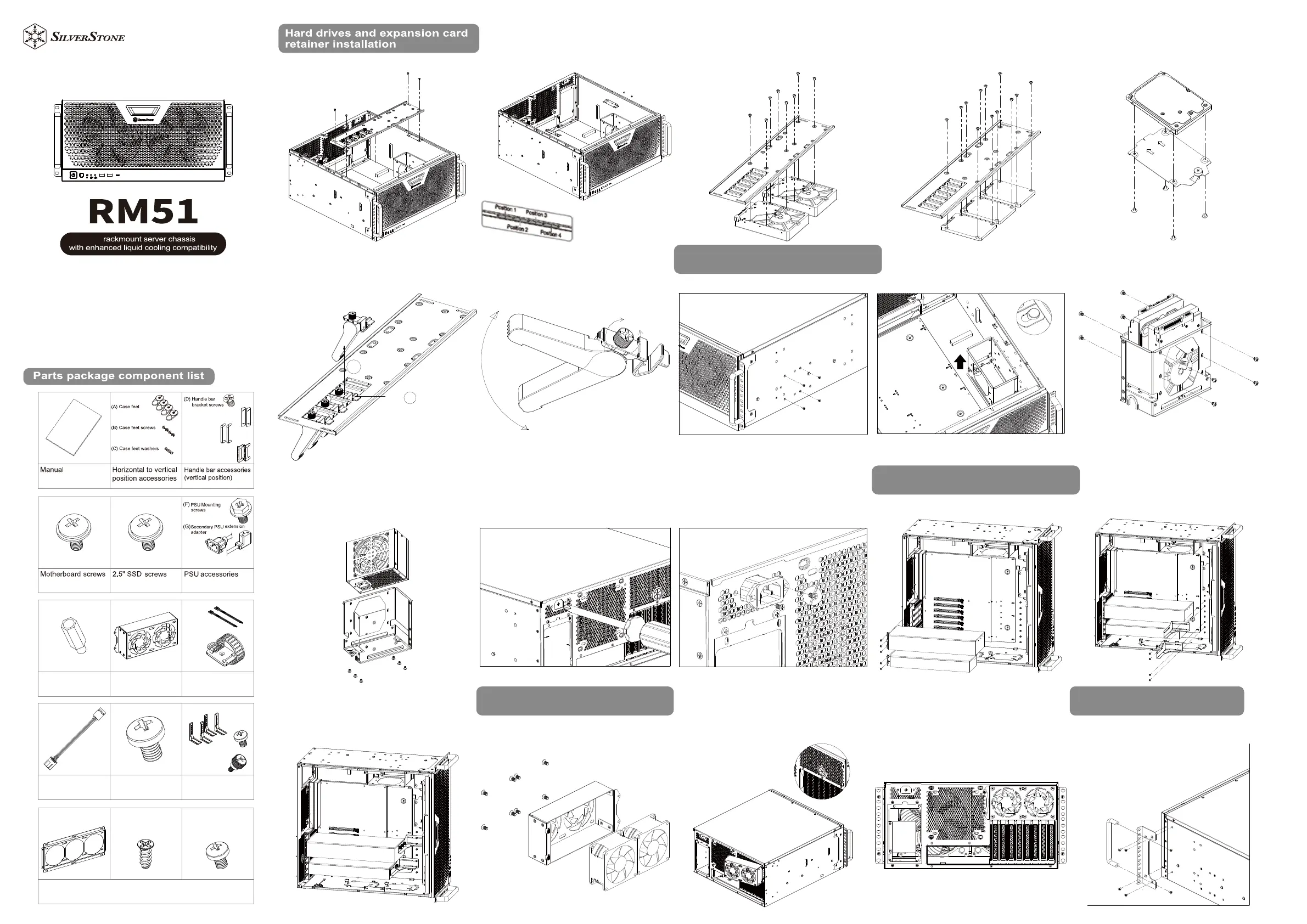

1. Remove 4 screws from expansion card retainer2. Expansion card retainer position shift3. Install 2 x 3.5" HDD on the expansion card retainer4. Install 3 x 2.5" SSD on the expansion card retainer5. Install 2.5" SSD on to 2.5" SSD trays

6. Remove expansion card buckle

2. Shift the cage off the buckle then remove the cage3. Insert 3.5” HDD into the cage, then secure with screws

7. Adjust position of the expansion card retainer according to the

required height of the expansion card, then tighten the screws

1. Remove the side mounting screws

4. Insert SFX PSU into the cage, then secure with screws

(Note: To install both primary and secondary PSUs, it’s

recommended to purchase PP10 cables to operate both PSUs

on a single motherboard)

5. To install the SFX PSU, first remove the plate that sits on

the PSU extension adapter pass-through hole with a Phillips

screwdriver

6. Insert the extension adapter cable through the rear of the

pass-through hole, then fasten the screws

1. Install Nvidia 30 series graphics card2. Install Nvidia 30 series graphics card bracket (slightly tighten

the screws, and reserve space for the bracket to slide left and right

3. Once the graphics card bracket is pushed into position, tighten

the thumb screw then the graphics card screw

Note: Nvidia 30 series graphics card bracket supports graphics

card length of 285mm~344mm (the total length of the graphics

card must exceed the edge of the motherboard)

1. Install 80mm fans into the cage then secure with screws

SFX PSU or 3.5” HDD installation guide

80mm external fan cage installation

Nvidia 30 series graphics car brackets

installation

Clip

1

2

loosen

tighten

A

2. Mount the external fan cage to the rear of the chassis

(Please run the cable through the pass-through hole first)

3. Secure with screws1. Assemble the handle bars with the L-shaped bracket, then

secure the assembly on both sides of the chassis

Vertical orientation installation

X2

Motherboard standoff

Fan extension cable3.5” HDD screws

Nvidia 30 series graphics

card accessories

(H) Cable ties

( I ) Cable management buckle

( I )

(H)

(J) Bracket

(K) Screws

(L) Captive thumbscrew

Radiator adapter bracket accessories

M) Radiator adapter bracket N) Radiator adapter bracket

mounting screws

O) Radiator adapter bracket /

80mm external fan cage

mounting screws

80mm external fan

cage

(P) Handle bars

(Q) L-shaped brackets

(E) Handle brackets
