Pagina 1/24

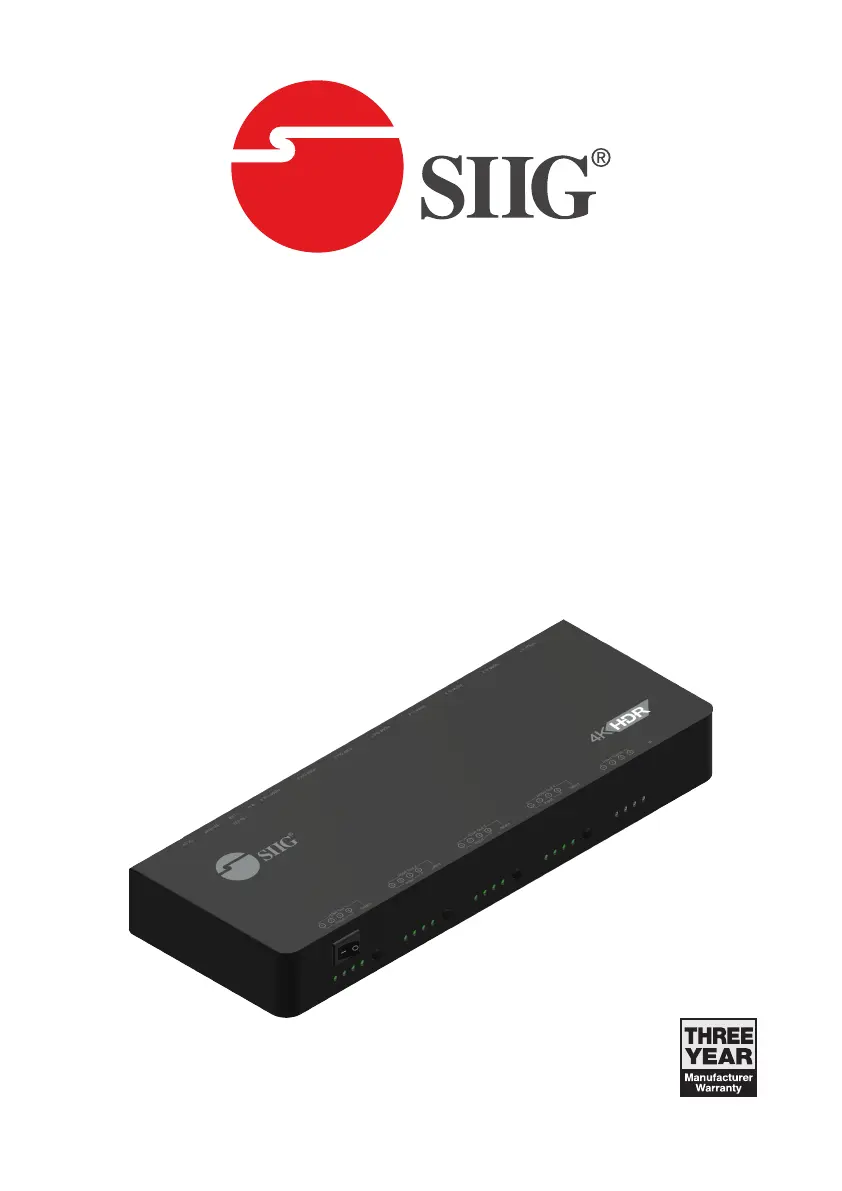

4x4 HDMI 2.0 4K HDR

Matrix Switch

with Cloud Control

User Manual

04-1197A P/N: CE-H24W11-S1

Safety and Notice

The 4x4 HDMI 2.0 4K HDR Matrix Switch has been tested for

conformance to safety regulations and requirements, and has been

certified for international use. However, like all electronic equipment,

the 4x4 HDMI 2.0 4K HDR Matrix Switch should be used with care.

Please read and follow the safety instructions to protect yourself from

possible injury and to minimize the risk of damage to the unit.

• Follow all instructions and warnings marked on this unit.

• Do not attempt to service this unit yourself, except where

explained in this manual.

• Provide proper ventilation and air circulation and do not use near water.

• Keep objects that might damage the device and assure that the

placement of this unit is on a stable surface.

• Use only the power adapter and power cords and connection

cables designed for this unit.

• Do not use liquid or aerosol cleaners to clean this unit.

• Always unplug the power to the device before cleaning.

Package contents

• 4x4 HDMI 2.0 4K HDR Matrix Switch

• Power adapter DC 5V / 4A

• IR Receiver

• IR Remote control

• Rack-mounting ear set

• User Manual

Features

• HDMI2.0a compliant

• Supports 4K2K@60 4:4:4 8bits

• Supports HDR*, which is 4K2K@60 4:2:0 10bits

• Supports resolution downscaling from 4K2K to 1080P

• HDCP1.4 & HDCP 2.2 compliant

• Single-link 594MHz [18Gbps]

• Human body model — ±15kV [air-gap discharge] &

±8kV [contact discharge]

• Allows any source to be displayed on multiple displays

at the same time

• Allows any HDMI display to view any HDMI source at any time

• Supports 7.1 channel digital audio

• Supports default HDMI EDID and learns the EDID of

displays to matrix switcher

• The matrix switcher can switch every output channels

from any HDMI inputs by Push button, IR remote

control, RS-232, IP control, cloud & Echo control.

• Easy installation with rack-mounting

• Fast response time – 2~3 seconds for channel switch

Thank You

for your purchase!

1. NOT supports

(1) Resolution downscaling from 4K2K@60 4:2:2 to 1080P

(2) Frame rate conversion

(3) 4K2K@60 4:2:2 to 4K2K@60 4:2:0

2 . Sp li t te r can by pas s 4 K HD R da t a c on te n t, b u t

can NOT process it and make HDR content 100%

t into 1080p

Product specificaties

Merk:	SIIG
Categorie:	Schakelaar
Model:	CE-H24W11-S1
Ingebouwd display:	Nee
Gewicht:	1170 g
Breedte:	355 mm
Diepte:	108 mm
Hoogte:	42 mm
Gebruikershandleiding:	Ja
Materiaal behuizing:	Metaal
LED-indicatoren:	Status
USB-connectortype:	Micro-USB
Inclusief AC-adapter:	Ja
Kleur behuizing:	Zwart
Aantal HDMI-poorten:	8
Aantal Ethernet LAN (RJ-45)-poorten:	1
Vermogensverbruik (max):	12 W
Aantal USB-aansluitingen:	1
Certificering:	FCC, CE, TAA
HDCP:	Ja
HDR-ondersteuning:	Ja
Aansluiting voor netstroomadapter:	Ja
RS-232 port:	1
HDMI versie:	2.0a
Aantal HDMI-invoerpoorten:	4
Duurzaamheidscertificaten:	RoHS
Aantal per verpakking:	1 stuk(s)
Temperatuur bij opslag:	-20 - 60 °C
Output current:	4000 mA
Spanning:	5 V
HDMI in:	4
HDCP versie:	2.2
Aantal HDMI-uitgangen:	4
RJ-45 invoer ports:	1
Aantal HDMI-uitvoerpoorten:	4
Aansluiting video:	HDMI
Afstandsbediening inbegrepen:	Ja
Overdrachtssnelheid:	18 Gbit/s
AC-ingangsspanning:	100 - 240 V
AC-ingangsfrequentie:	50 - 60 Hz
Bedrijfstemperatuur (T-T):	0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V):	20 - 90 procent
Type product:	AV-matrixschakelaar
Vermogenstoevoer locatie:	Extern
Rekbevestigingspakket:	Ja
Extended display identification data (EDID):	Ja
Inclusief IR-ontvanger:	Ja
