Tools Needed:

Herramientas necesarias:

Outils nécessaires:

Included Items:

Accesorios incluidos:

Éléments inclus :

Rear wheel strap x 1

Front wheel block x 1

Tray rear position cover x 1

Tray cover and block screws x 4

Truss attachment bolt x 4

Add on security screw x 4

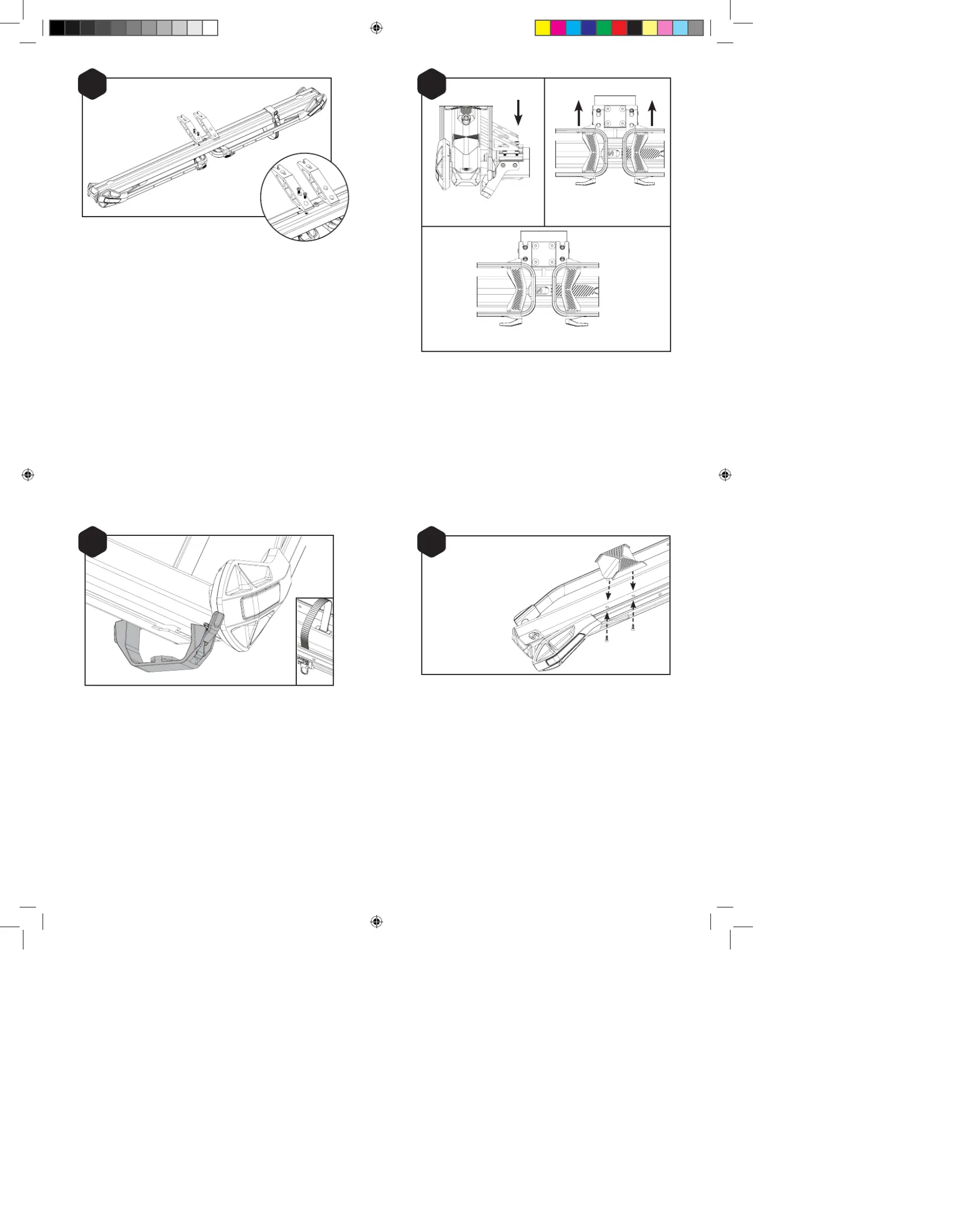

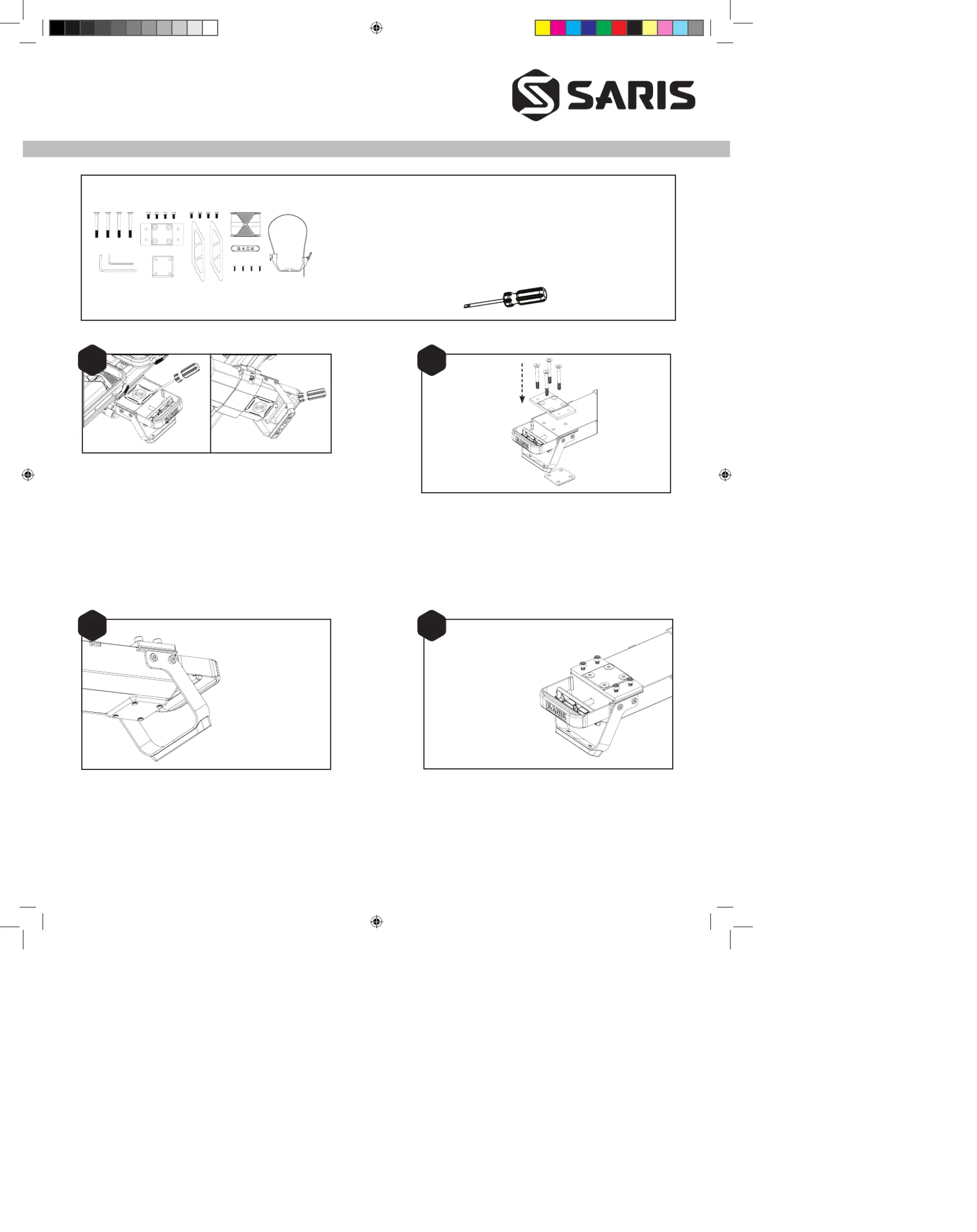

ADD-ON PLATE INSTALL PROCEDURE

Align lower add-on plate with the 4 bolts on the bottom side

of the spine. With a 6mm hex key, begin threading each bolt

into the lower add-on plate. Continue tightening in an X pattern

until all bolts are fully tightened (15ft-lb/20Nm).

Remove Top and bottom add-on plugs with a large flathead

screwdriver at each corner

Align add-on top plate with the holes on the top surface of the

rack spine. Feed all 4 long bolts through the 4 central holes in

the top plate, and through the main spine.

Hand thread the 4 security bolts only slightly into the top plate, do not

tighten at this point.

12

34

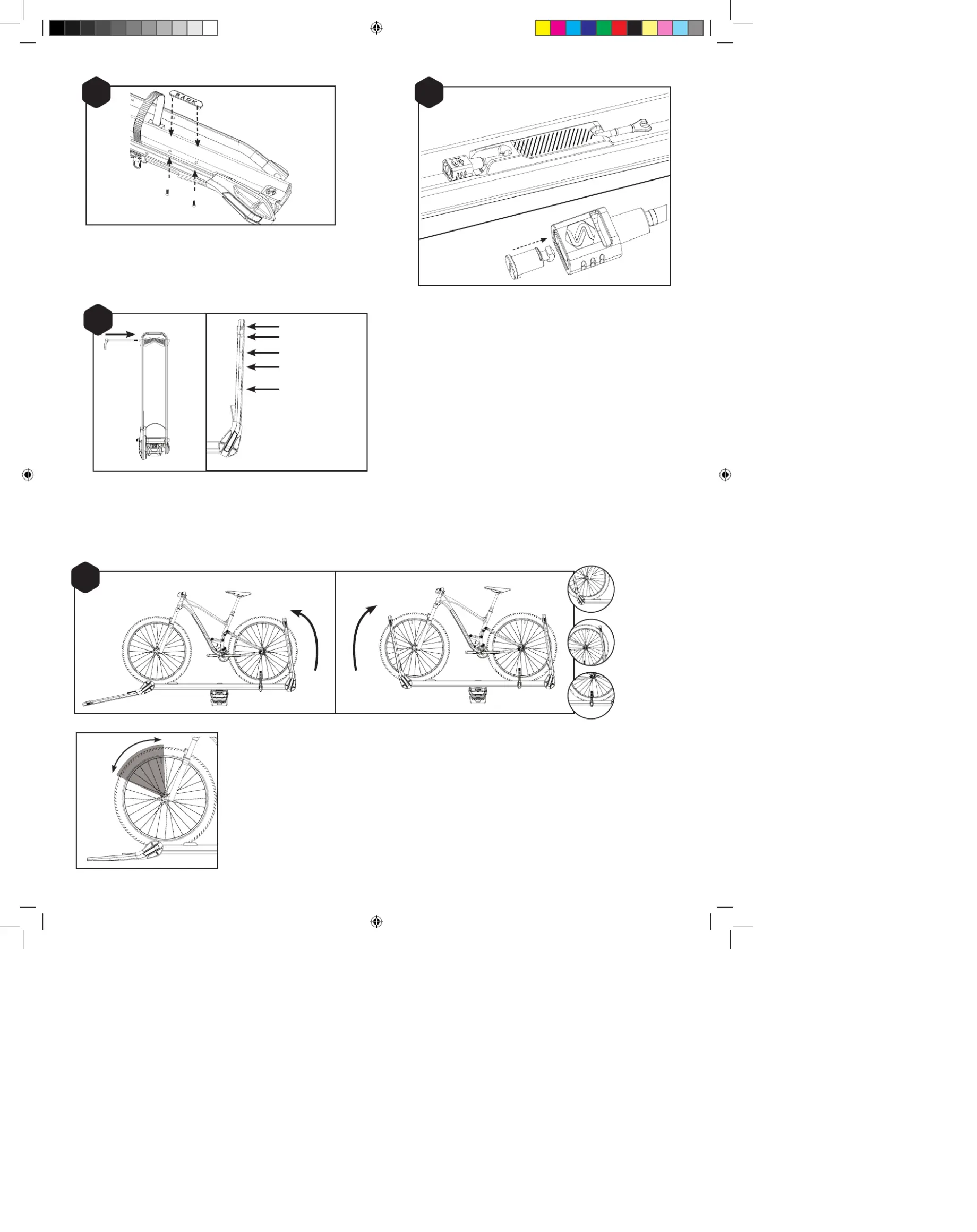

MHS DUO Add-On #4650

Assembly Instructions | Instrucciones de montaje | Instructions d’assemblage

Truss extrusion x 2

Top plate x 1

Bottom threaded plate x 1

Assembly bolt x 4

Security bolt key

5mm hex key

Flathead Screwdriver
