Pagina 1/4
LOT CODE
Saris Tailgate Pad #TGP100, TGP200
Assembly Instructions | Instrucciones de montaje | Instructions d’assemblage
LOT CODE
REGISTER YOUR PRODUCT
https://saris.com/pages/product-registration
ASSEMBLY/INSTALLATION VIDEO
https://saris.com/pages/videos
WHAT’S IN THE BOX
LETTER QTY PART DESCRIPTION
A 1 Tailgate Pad
B 1 Installation Tool
C 2 Down Tube Protective Film Bottom
D 2 Down Tube Protective Film Top
E 4 Tailgate Lower Protective Film
FOLLOW INSTRUCTIONS
SPECIFICATIONS
TGP100 Small
5 bike max (51-1/8” minimum required inner
truck bed clearance)
TGP200 Large
6 bike max (59” minimum required inner truck
bed clearance)
TGP100 Small TGP200 Large
A
C
B
D E

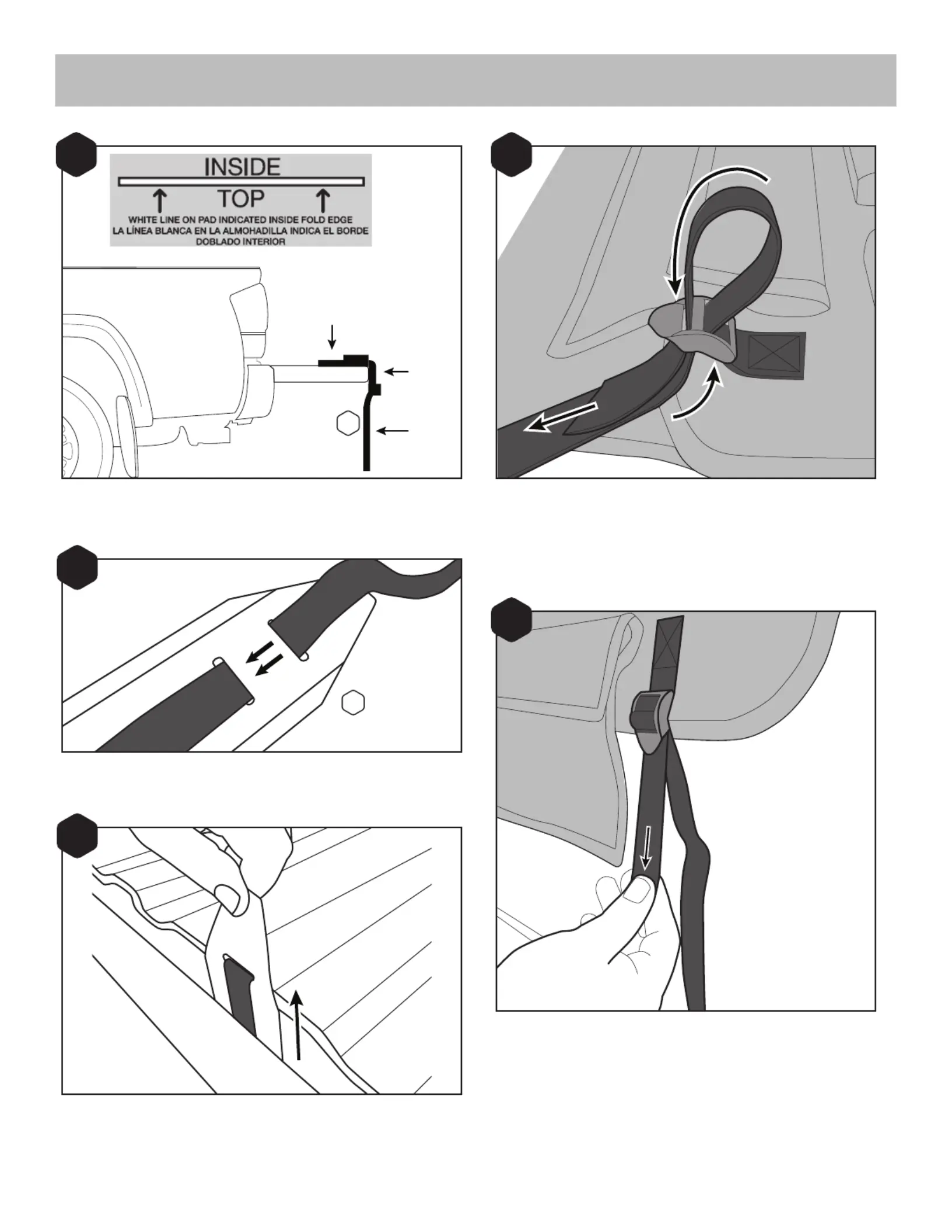

INSTALL TAILGATE PAD:
Open tailgate. Place tailgate pad (A) on tailgate, with the white line on the pad
positioned on the inner edge of the tailgate, as shown.
1
Place attachment straps into the installation tool (B), as shown.
Feed the tool with the strap under your tailgate.
Note: Tailgate may need to be adjusted to partially open in order to feed tool and
strap through.
2
3
Pull the strap from the installation tool and thread it through the corresponding
buckle on the inner side of the tailgate pad. Then, thread the strap over the top
buckle ladder and leave the strap loose.
Repeat steps 2–4 with the remaining 3 straps.
Evenly tighten all four straps.
4
5
Outside
Inside
Top
A
B
LOAD BIKES: BACKUP CAMERA ACCESS:
INSTALL PROTECTION FILM (OPTIONAL) :
Disengage the lower hook at the center of the pad and ip the window up.
Secure the strap hook to loop on inner side of the pad.
Optional -Take note of lower strap tailgate contact points and install protective
lm (E) as shown. Apply to a clean tailgate.
The Saris Tailgate pad features a large ap for convenient access to your tailgate’s
handle and backup camera.
Take note of bike’s down tube position on tailgate pad and install protective
lm (C and D) on bike’s down tube as shown. Apply to a clean down tube.
Position your bike’s down tube between the blocks and hook the strap through
the loop. Tightly cinch the strap.
Repeat steps 1-3 for additional bikes, matching the wheel/handlebar direction
on additional bikes.
Load bikes smallest to largest.
1
1
2
2 3
Place the front wheel of your bicycle over the tailgate pad, and turn handlebars
as shown.
1
C
D
E
