RF RECEIVER (868 MHz)
Model: SSR868
www.saluscontrols.com
UK: tech@salus-tech.com
DE / NL: info@salus-controls.de
FR: technicalsupport@saluscontrols.fr
RO: tehnic@saluscontrols.ro
DK: Support@salus-controls.dk
INPUT: 230V AC, +/- 10%, 50Hz
SWITCHING CAPACITY: 16(5)A
SALUS Controls GmbH,
Dieselstrasse 34,
63165 Mühlheim am Main,
Germany
V01
XII/2024

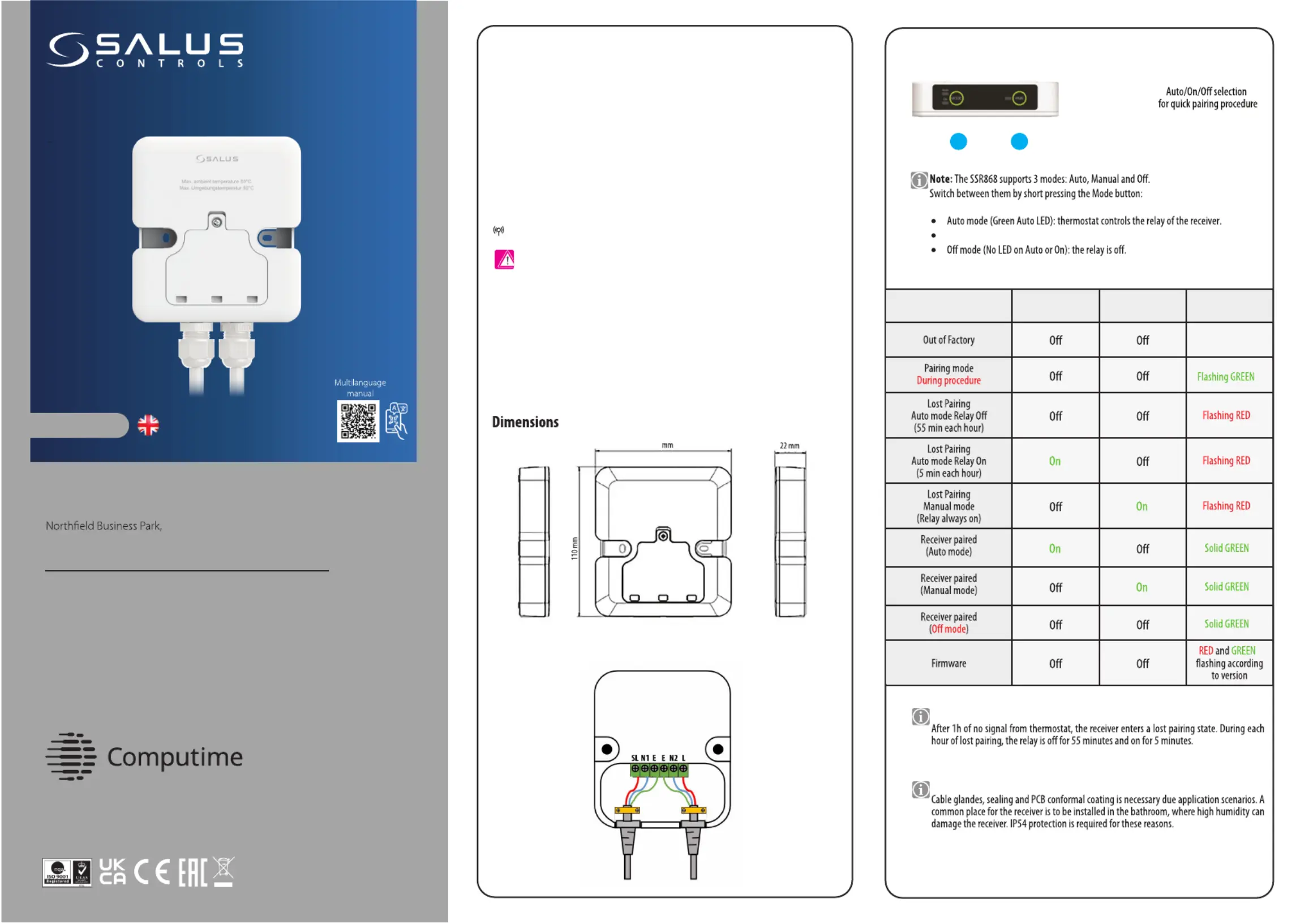

Quick Guide
Safety Information
Wiring diagram
LED Operation
Auto LED ON LED Pair LED
1. MODE button:
2. PAIR button
2
1
Button functions
HEAD OFFICE
SALUS ont C rols, Un ,its 8-10
For Wayge , Parkgate
Ro rham, Dthe S60 1S
Fail safe protection
Waterproof protection
Introduction
The SALUS SSR868 is a super slim receiver (only 22 mm) that is designed to control electrical
infrared panels. The receiver has a 10A relay and is compatible with most IR panels on the
market. It includes a 3M cable and has IP54 rating protection. It can be installed in bathrooms
or rooms with high humidity levels. The SSR868 receiver is compatible with our 868MHz
range of thermostats: RT310TX, RT510TX, RT520TX, 091FLRERT20TX, ST325TX and F(TX).
Product Compliance
This product complies with the essential requirements and other relevant provisions of
Directives 014/53/EU and 201 / /EU. The full text of the EU Declaration of Conformity is 2 5 863
available at the following internet address: www.saluslegal.com.
To ensure both safety and optimal performance, the SSR868 receiver should be used in
accordance with all relevant regulations. This device is designed exclusively for indoor use and
must not be installed in environments exposed to extreme temperatures or other harsh
conditions. Keep the receiver completely dry; any inadequate installation may cause damage
or malfunction. Always disconnect the power before cleaning and use a dry cloth only.
For safe operation, install the SSR868 receiver at a convenient height to allow easy access. The
device's maximum operating temperature is 50°C, so avoid placing them in locations that
may exceed this limit to prevent overheating. Adhering to these guidelines will ensure the
long-term reliability and safety of the receiver.
Power supply
Infrared panel
100
Flashing YELLOW
SALUS Controls is a member of the Computime Group.
M
aintaining a policy of continuous product development SALUS Controls plc
reserve the right to change specification, design and materials of products listed
in this brochure without prior notice.
Manual mode (Green ON LED): the relay is always activated.
868.0 MHz -
868.6 ; <13dBmMHz
ERT20TX
RT520TX
RT510TX
RT310TX

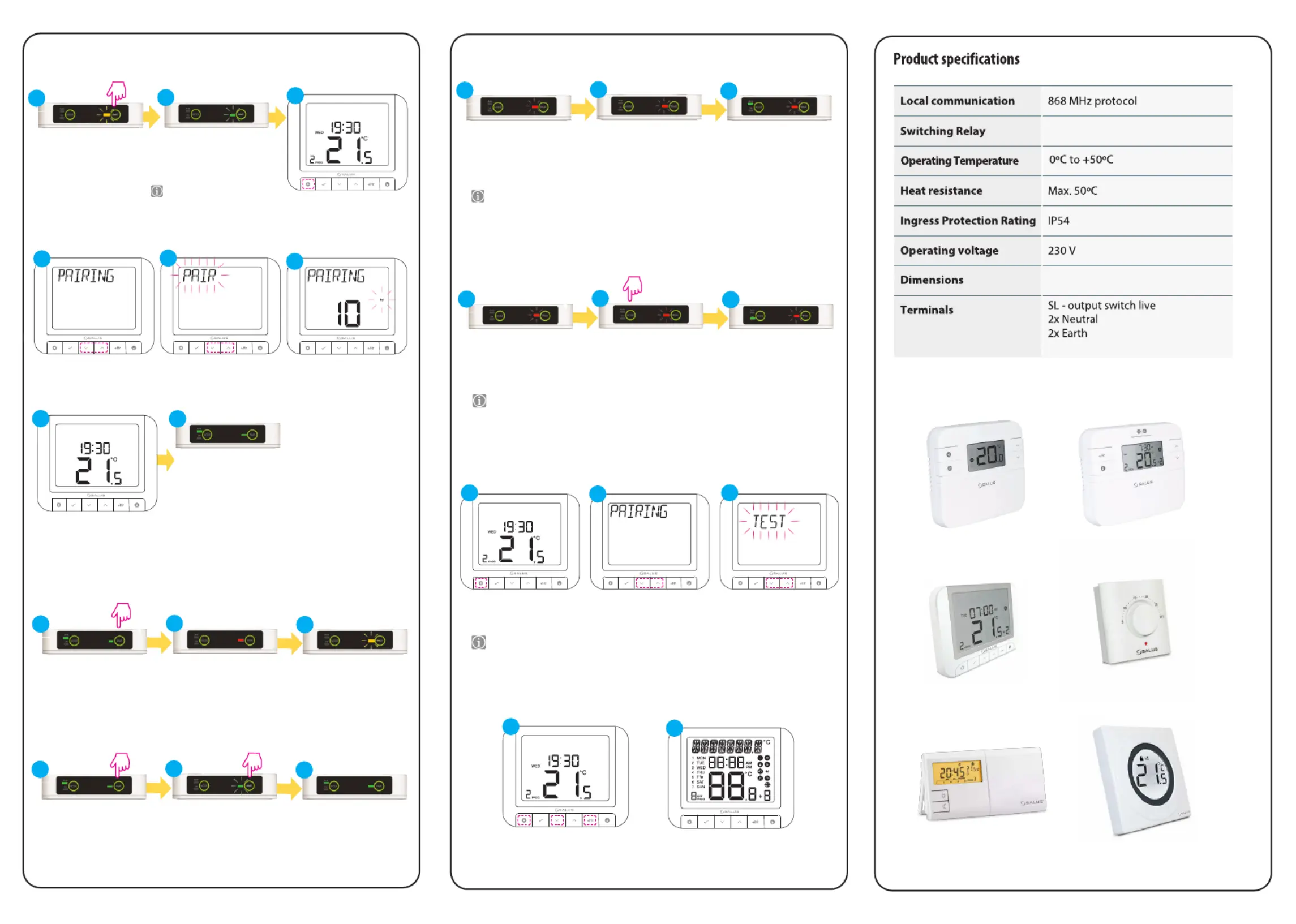

The pairing process
takes up to 10 minutes.
After all, thermostat will go
back to the main screen.
Using UP or DOWN, select
PAIR and press SELECT.
Press MENU.
Using UP or DOWN, navigate to
Pairing submenu and press
SELECT.
3
5
6
Pairing process
5 s
Pair LED – Flashing Green –
Receiver in Pairing mode
Note:
1
0 minutes in this mode.
After 10 minutes, if no pairing is
successful, revert to solid RED.
Pairing process needs to start again.
Pair LED – Solid Green –
Receiver is linked with a
thermostat
Auto LED – Solid Green –
Default mode for a paired
receiver
2
1
8
Factory reset
10s long press the Pair
button to factory reset the
receiver.
Solid Red LED then it resets.
Flashing yellow after reset.
Relay is inactive.
2
11
3
10 s
10(5)A
The device will be reset and will
start up automatically.
To reset the thermostat, press MENU,
DOWN and BOOST simultaneously
for 5 seconds.
Thermostat f
actory r
eset
Using UP or DOWN, select
TEST and press SELECT.
Press MENU. Using UP or DOWN, navigate to
Pairing submenu and press SELECT.
Test pairing
1
2
3
7
1
2
If pairing started by mistake
5 s
Pair LED – Solid Green –
Thermostat linked with a
thermostat. Press 5 sec to put
the receiver in Pairing mode.
Pair LED – Flashing Green –
Receiver in Pairing mode
Press 5s the Pair button to
exit pairing mode.
Keep the previous pairing code.
2
11
3
5 s
Note: The testing process can take approximately 10 minutes.
If pairing is lost (change mode)
Pair LED – Flashing Red –
Receiver lost link with
thermostat
Relay is 55 minutes out of one
hour inactive.
Relay is active the remaining
5 minutes of the hour. Then
the cycle restarts. When
connection is reestablished,
receiver is checking the
thermostat demand and
acts accordingly.
2
11
3
Note: Lost link appears
after 1h of failed
communication.
If pairing is lost
Pair LED – Flashing Red –
Receiver lost link with
thermostat
Relay is 55 minutes out of one
hour inactive.
By short pressing the Mode
button we can put the
receiver into On (relay is
always on) mode.
Thermostat in On mode -
Relay is always on. Pair LED
is flashing to state the lost
connection. When
connection is reestablished,
Pair LED becomes solid red.
2
11
3
Note: Lost link appears
after 1h of failed
communication.
short press
PAIR LED - - flashing yellow
Default position out of
factory. Receiver is not
paired. Press for 5 sec to put
the receiver in Pairing mode.
4
Compatibility with other SALUS 868 MHz thermostats
110/ /22 in mm (L/W/H)100
ERT20TX
ST325TX
091FLRF(TX)
L - live of supply power
