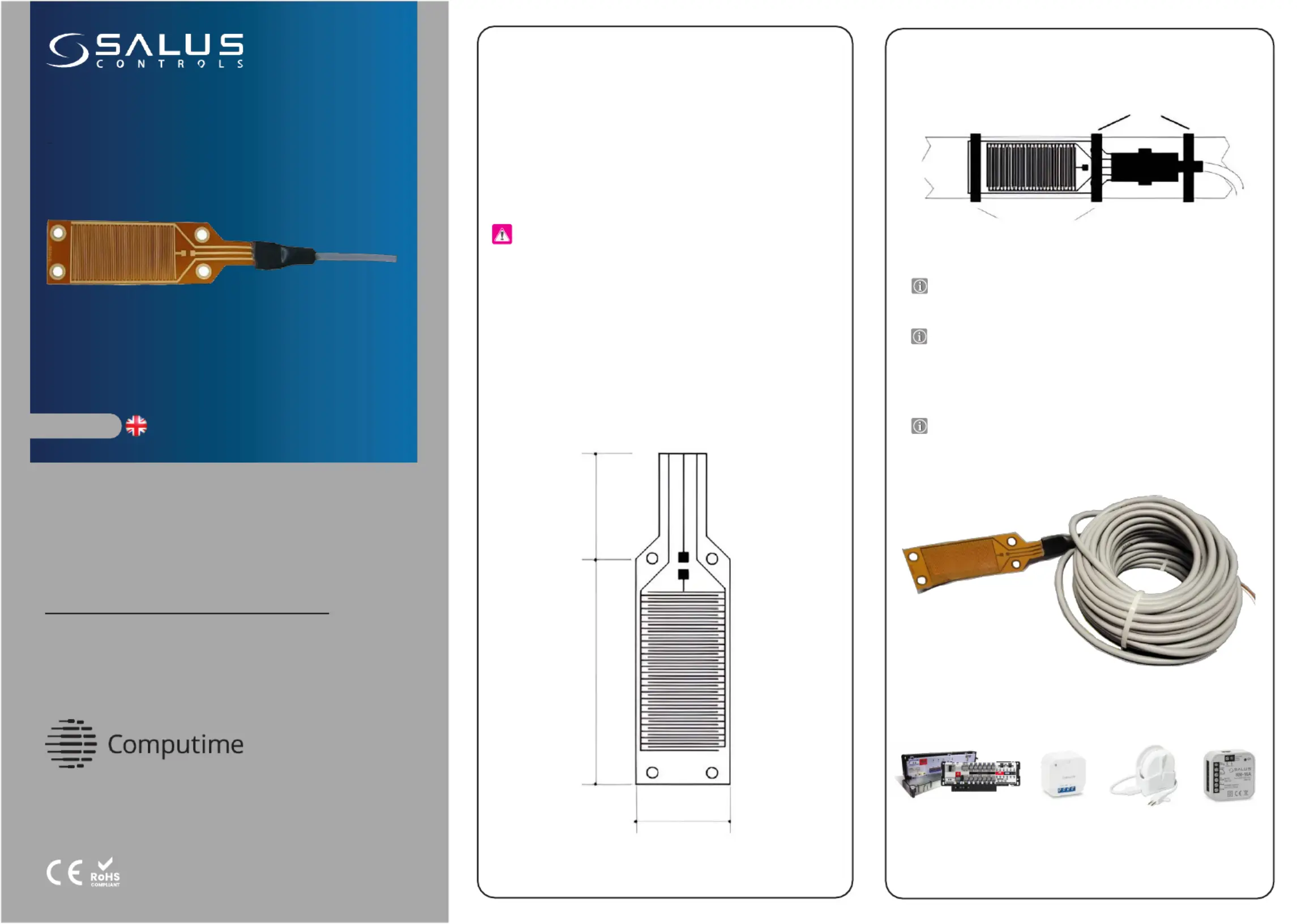

DEW POINT SENSOR
Model: TPS10
Quick guide
www.saluscontrols.com
SALUS Controls is a member of Computime Group
In order to maintain a policy of continuous product development, SALUS Controls plc
reserves the right to change the specification, design and materials of the products listed
in this brochure without prior notice.
V01
III/2025
Installation
First secure the
connection cable with
plastic clamps
Tour pipe
cooling
Plastic flange
Note: For mounting, the sensor must be placed with the smooth side of the sensor on
the back, with the entire sensor surface, on the cooling media lap and secured with
the plastic clamps included in the package.
Fix the power cable first and then the sensor (see installation example in the adjacent
sketch).
Electrical connection
TPS10 is supplied with a high quality connection cable (LiYY) 2x0.14 mm with a
length of 10 m, which can be extended up to 20 m.
Compatibility with other Salus products
Introduction
The TPS10 is based on the conductivity measurement principle and is used to detect t h e risk of
condensation when conditions are favourable for dew point formation. By means of a special, highly
flexible, high-tech foil with special thermal properties an excellent response sensitivity is achieved.
The sensor is mounted on the lap pipe of the cooling circuit. As the temperature difference between
the cooling medium and the surrounding air increases even at low air humidity there is a risk of
condensation.
The TPS10 can be used in conjunction with our products such as the RM-16A power relay; (utilising
the COM - NO potential free input), the SR600 intelligent relay (S1 - S2 input) or the WLS600 flood
sensor. Together they form a sensitive measuring device that reacts to this condensation long before the
human eye can detect this moisture in droplet form.
Information on product safety and functionality
When mounting the sensor to a pipe, DO NOT pass the mounting clamps through the openings in the
sensor foil. The front of the sensor with the comb conductor pattern is required for moisture sensing
and must be exposed. It must not be covered by insulation or come into contact with other electrical
elements or other electrically conductive parts.
Dimensions
32 mm
66 mm
25 mm
SALUS Controls, Units 8-10,
Nor eld Business Park,thfi
Forge Way Parkgate,
Rotherham, S60 1SD
SALUS Controls GmbH,
Dieselstrasse 34,
63165 Mühlheim am Main,
Germany
SR600
WLS600 RM-16A
KL08RF/CB12RF
