ASSEMBLY INSTRUCTIONS FOR YOUR

CALLIOPE SCONCE

ASSEMBLY INSTRUCTIONS:

1. SHUT OFF MAIN ELECTRICAL SUPPLY FROM THE MAIN FUSE BOX/CIRCUIT BREAKER. IT IS RECOMMENDED

THAT A LICENSED ELECTRICIAN INSTALL THIS FIXTURE.

2. Remove mounting plate (A) from backplate (B) by removing screws (C). Set screws (C) aside.

3. Carefully pull the wiring from wall outlet box. Thread the wires through the center hole in mounting plate (A).

4. Afx mounting plate (A) to wall outlet box with mounting screws (D) provided.

5. Make proper electrical connections described in steps 6 - 8. A LICENSED ELECTRICIAN IS RECOMMENDED.

6. Connect ground (green or silver in color) wire from xture to ground wire in the outlet box. Fasten wires together with wire nut

(J) and tightly wrap the connection with electrical tape.

7. Attach hot wire from xture (black in color or smooth side of wire) to hot wire from outlet box. Fasten wires together with wire

nut (J) and tightly wrap connection with electrical tape.

8. Attach neutral wire from xture (white in color or ribbed side of wire) to neutral wire from outlet box. Fasten wires together with

wire nut (J) and tightly wrap connection with electrical tape.

9. Slide backplate (B) over mounting plate (A). Thread screws (C) into vacant holes at the top and bottom of backplate (B) to

secure the xture to the mounting surface.

10. Insert one (1) 60W MAX. B10 Candelabra base bulb into socket (F).

11. Carefully open clip inside shade (E). Place clip over bulb to secure shade to xture.

12. Reconnect main electrical supply at the fuse box/circuit breaker and test the xture.

** To clean, use a soft dry cloth. Do not use any chemical or abrasive cleaners as they may damage the nish. **

IMPORTANT SAFETY INSTRUCTIONS:

* These instructions are provided for your safety. It’s important that all safety instructions are read before beginning installation

of xture.

* We STRONGLY recommend installation by a licensed electrician.

* Turn off power at switch before replacing bulbs, making sure xture has had sufcient time to cool down.

* Do not connect the electricity until lamp is fully assembled.

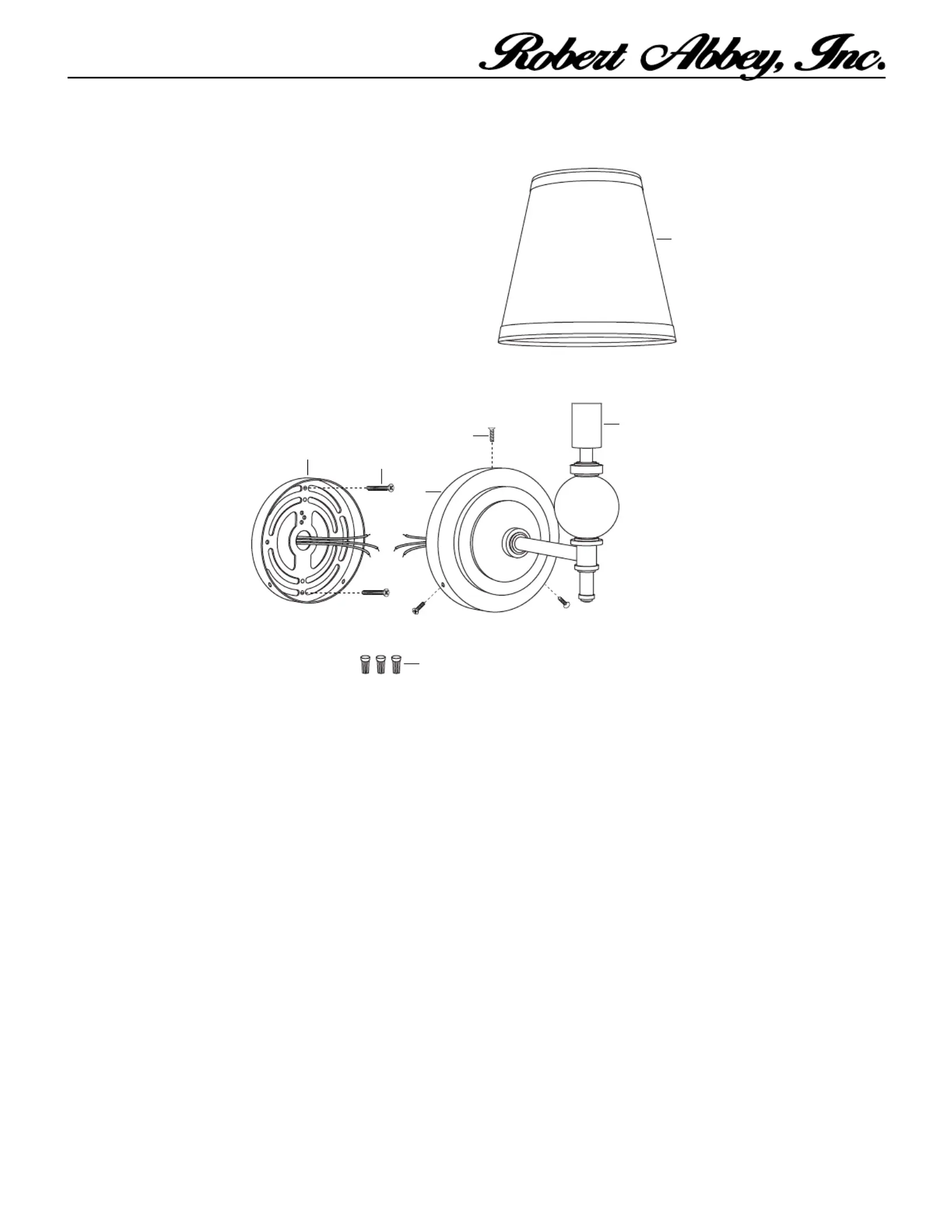

3314

(B)

(C)

(D)

(A)

(G)

(E)

(F)
