ASSEMBLY INSTRUCTIONS FOR YOUR

“KINETIC” WALL SWINGER

1504

1. SHUT OFF THE MAIN ELECTRICAL SUPPLY AT CIRCUIT BREAKER.

2. Follow steps 1 - 3 from cord cover assembly instructions above.

3. Disconnect wiring between socket and cord with polarized plug (K) by removing

wire nuts from connections behind backplate (A).

4. Pull wiring from polarized plug (K) away from backplate (A), exiting through nipple

(J). Carefully unscrew nipple (J) from backplate (A).

5. Thread plug (M) into hole in backplate (A) vacated by electrical cord and nipple (J).

6. Lift backplate (A) to outlet box and make proper electrical connection. A licensed

electrician is recommended.

7. Attach ground wire from xture (green or copper in color) to ground wire from outlet

box.

8. Attach hot wire from xture (black in color or smooth side of wire) to hot wire from

outlet box. Fasten wires together with wire nut and tightly wrap connection with

electrical tape.

9. Attach neutral wire from xture (white in color or ribbed side of wire) to neutral wire

from outlet box. Fasten wires together with wire nut (E) and tightly wrap connection

with electrical tape.

10. Follow steps 6 - 9 from cord cover assembly instructions above to complete assembly.

* To clean use a soft, dry cloth ONLY. Do not use chemical or abrasive cleaners as they

can damamge the nish. *

1. Remove all parts from carton. Do not throw away any parts.

2. Remove mounting plate (C) from backplate (A) by removing

backplate screws (B).

3. Afx mounting plate (C) to the wall using mounting plate screws

(D), provided.

4. Slide backplate (A) over mounting plate (C). Align holes in

backplate (A) with holes in mounting plate (C). Thread backplate

screws (B) into backplate (A) and mounting plate (C) to secure

xture to wall.

5. Thread top cord cover (E) into the threaded opening of nipple

(J). Thread bottom cord cover (F) into threaded opening of top

cord cover (E).

6. Remove nial (I) from harp (G). Squeeze harp (G) inward and

place into the opening of harp saddle.

7. Install one (1) 150W max. Type A, medium base bulb into

socket.

8. Slide center ring of shade spider (located inside shade (H)) over

threaded nipple on harp (G).

9. Screw nial (I) onto threaded nipple on harp (G) to secure shade

to lamp.

10. Remove protective plastic (L) from polarized plug (K). Insert

polarized plug (K) into wall outlet.

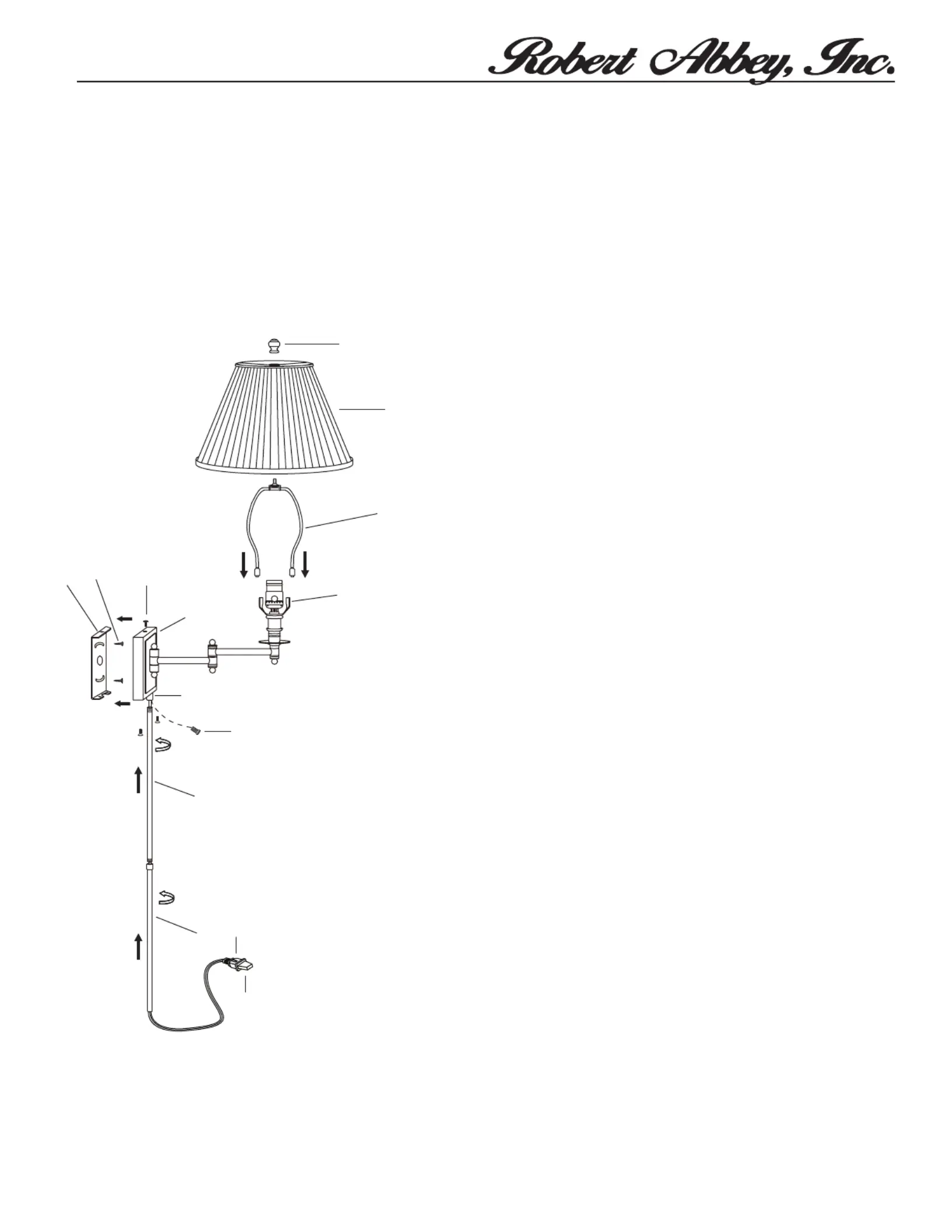

DIRECT WIRE ASSEMBLY INSTRUCTIONS

CORD COVER ASSEMBLY INSTRUCTIONS

(C)

(D)

(B)

(A)

(E)

(F)

(G)

(H)

(I)

HARP SADDLE

(J)

(K)

(L)

(M)

*These instructions are provided for your safety. It is important that they are read completely before beginning installation of xture.

*WE STRONGLY RECOMMEND INSTALLATION BY A LICENSED ELECTRICIAN.

*Turn off power at switch before replacing bulbs, making sure xture has had sufcient time to cool down.

*This portable lamp has a polarized plug (one blade is wider than the other) as a feature to reduce risk of electric shock, this plug will

t in a polarized outlet only one way. If it does not t fully in the outlet, reverse the plug. If it still does not t, contact a qualied

electrician. Never use with an extension cord unless the plug can be fully inserted. DO NOT ALTER THE PLUG.
