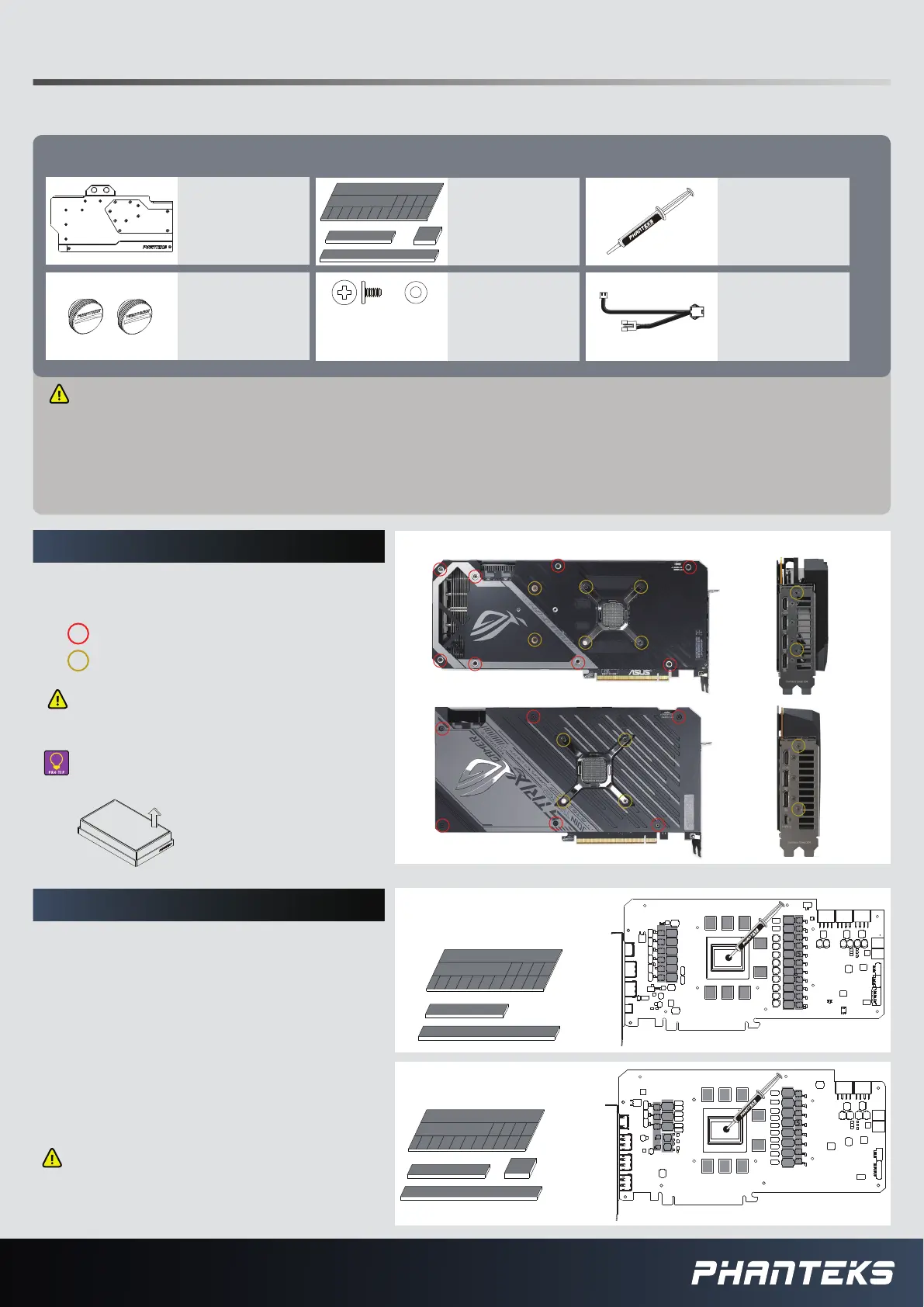

INSTALLATION GUIDE V1.0

GLACIER G6000 STRIX RX 6900/6800

PH-GB6900ASSRX_BK01/CR01

PACKAGE CONTENTS

WARNING -This product is intended for advanced users. Improper installation may result in damage to your equipment. While all eorts have

been made to provide the most comprehensive information possible, Phanteks assumes no liability expressed or implied for any damage(s) occurring to your

components as a result of using Phanteks cooling products, either due to mistake or omission on our part in the below instructions, or due to failure or defect in

the Phanteks cooling products. Do not disassemble the water block. Warranty will be voided.

Turn o the power to your system and discharge your body’s static electric charge before proceeding with the installation procedure. If you do not feel comfortable

with performing the installation procedure, consult a qualied computer technician.

For latest version check www.Phanteks.com

Clean o the original thermal compound.

We recommend using isopropanol alcohol.

Apply a drop of the Phanteks Thermal

Compound to the center of the GPU chip

3

111

2

1111111

1111

5

4

6

backplate screws

stock cooler screws

STEP 1. REMOVING STOCK COOLER

GLACIER GB6900ASSRX

QTY: 1

GLACIER Stop Fitting

QTY: 2

Thermal Pads

QTY: 4

M2.5x5 Screws/Washers

QTY: 15/15

Thermal Compound

PH-NDC-01

QTY: 1

Phanteks D-RGB Cable

QTY: 1

Unscrew all highlighted screws to remove

the stock cooler.

STEP 2. APPLYING THERMAL PASTE & PADS

Remove the protective lm and place the

the thermal pads on correct position on

the PCB.

Make sure to unplug the LED and Fan

cables when you remove the stock cooler.

Make sure to remove the protective lm on

both sides of the thermal pads.

Take the EVA-Foam from the box to use

as a base for your installation process.

STRIX / TUF RX6800

STRIX RX 6900XT / 6800XT

TUF RX 6900XT / 6800XT

STRIX RX 6800 / TUF RX 6800 / 6800XT / 6900XT

STRIX RX 6800XT / 6900XT

1

3

11

5

2

111

1

1

4

3

111

2

1111111

1111

5

4

3

111

2

1111111

1111

5

4

6

6

2

3

111

111

5

1

1

4
