DP4300HD-QSG-EN

Rev.: 06-25-2024

© Panduit Corp. 2024

Slot for SD card

2 USB-A ports

USB-B port

Ethernet 10/100 Base-T

Serial RS-232 port

Power switch

Power connection jack

USB-A port

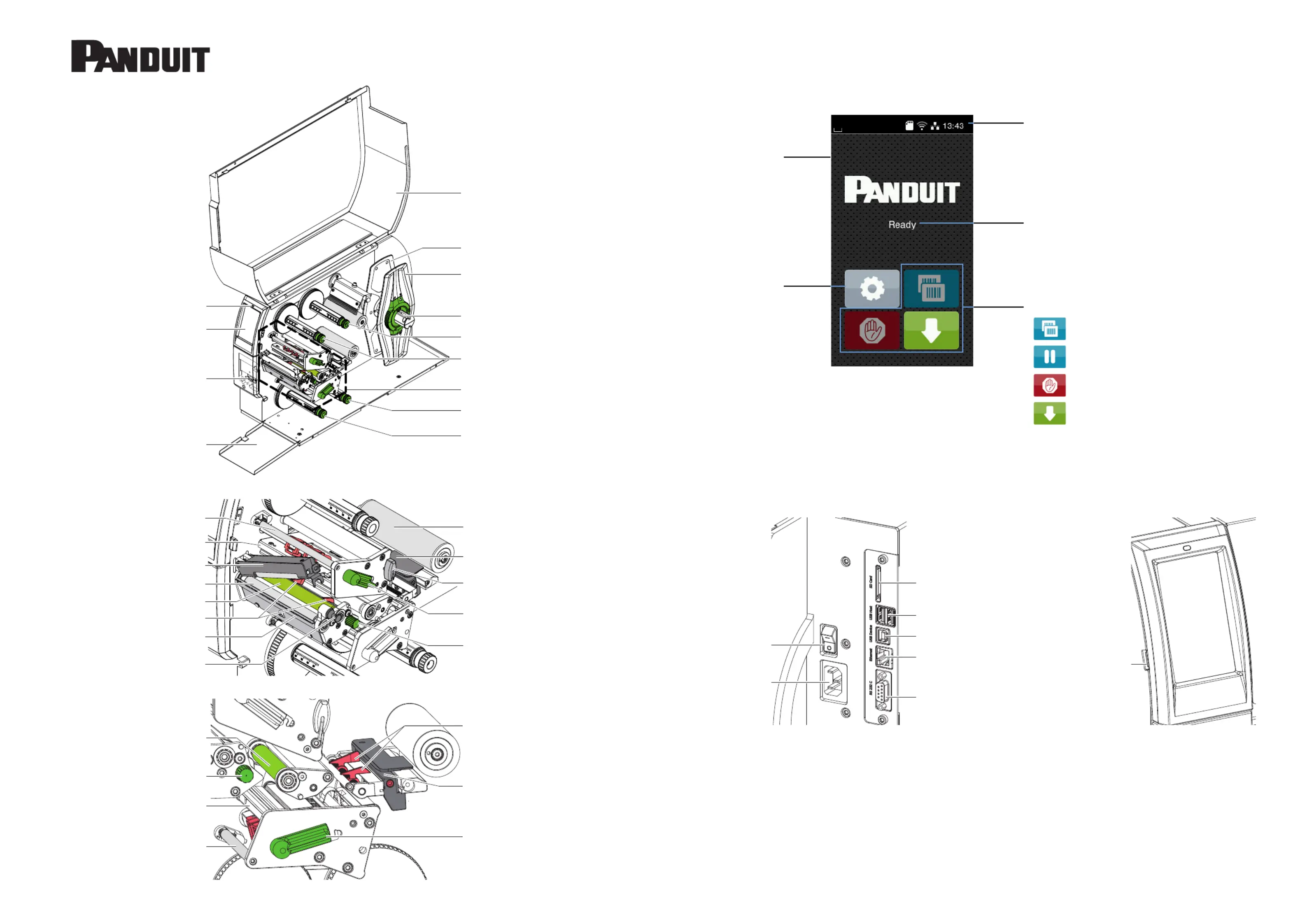

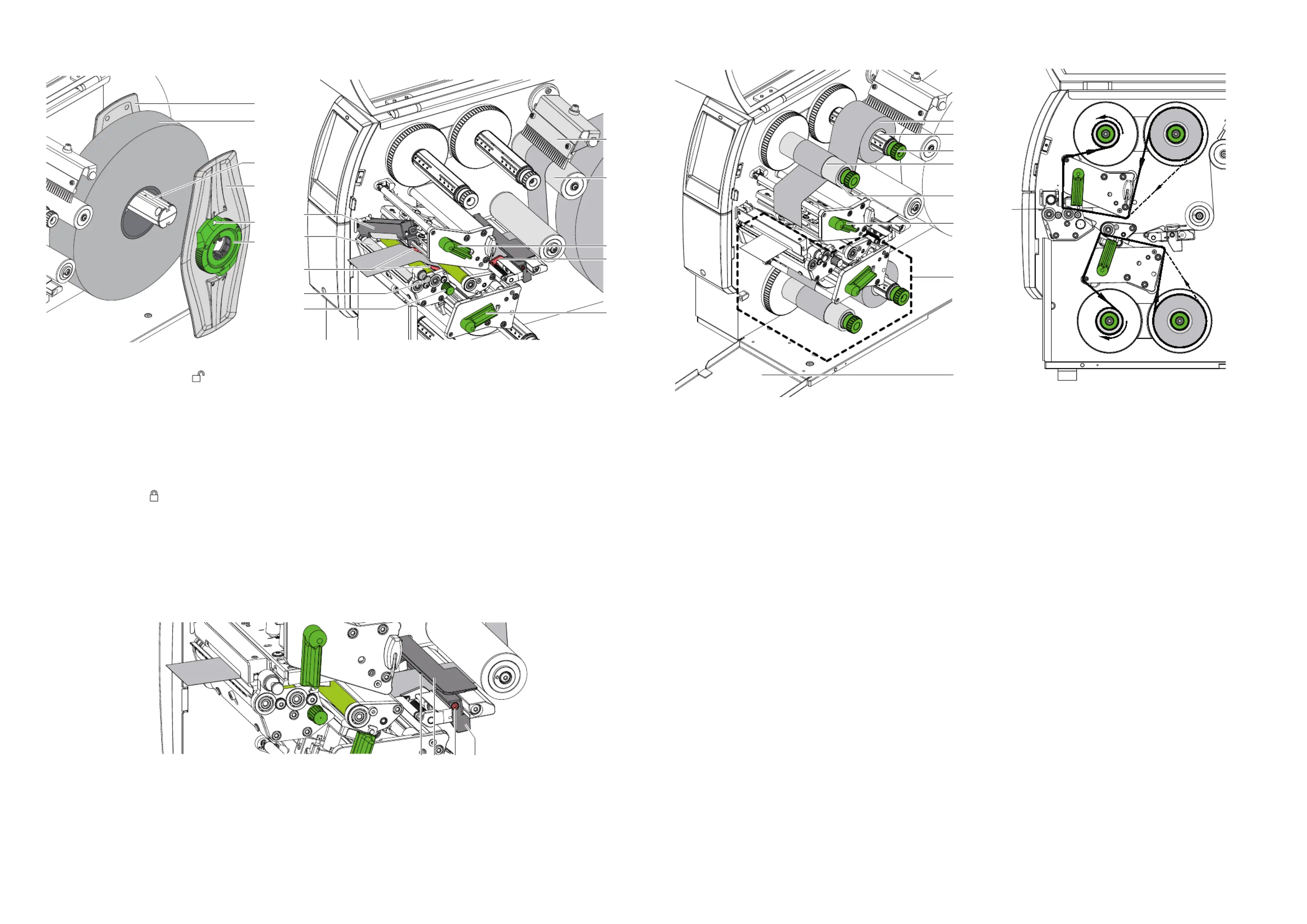

Printer Overview

Cover

Margin stop, outside

Margin stop, inside

Roll retainer

Upper ribbon supply hub

Upper ribbon take-up hub

Print mechanism

Lower ribbon supply hub

Lower ribbon take-up hub

LED „Power on“

Touchscreen display

Accessory Connector

Flap

Guide roller

Label sensor

Allen key

Upper printhead locking lever

Knob for adjusting label guides

Upper ribbon deection

Upper printhead assembly

Pressing roller system

Pinch roller

Upper print roller

Upper label guides

Tear-o󰀨 plate

Detent pin

Upper Print Mechanism

Lower label guides

Label sensor

Lower printhead locking lever

Lower print roller

Knob for adjusting label guides

Lower printhead assembly

Lower ribbon deection

Lower Print Mechanism

Function Buttons:

Repeat the last printed label

Interrupt / Continue the print job

Short touch: Cancel the current print job

Long touch: Cancel all print jobs

Feed a blank label

Menu Button

Printer status

Widgets:

•Connections

•Memory media

•Time

•Active apps

Touch screen

Display when starting

USB-A ports can be used for:

•Keyboard

•Scanner

•USB memory stick

•USB WiFi stick

•Service key

DP4300HD

DP4300HD/E
