INSTRUCTIONS FOR USE
IMPORTANT: Read completely before charging

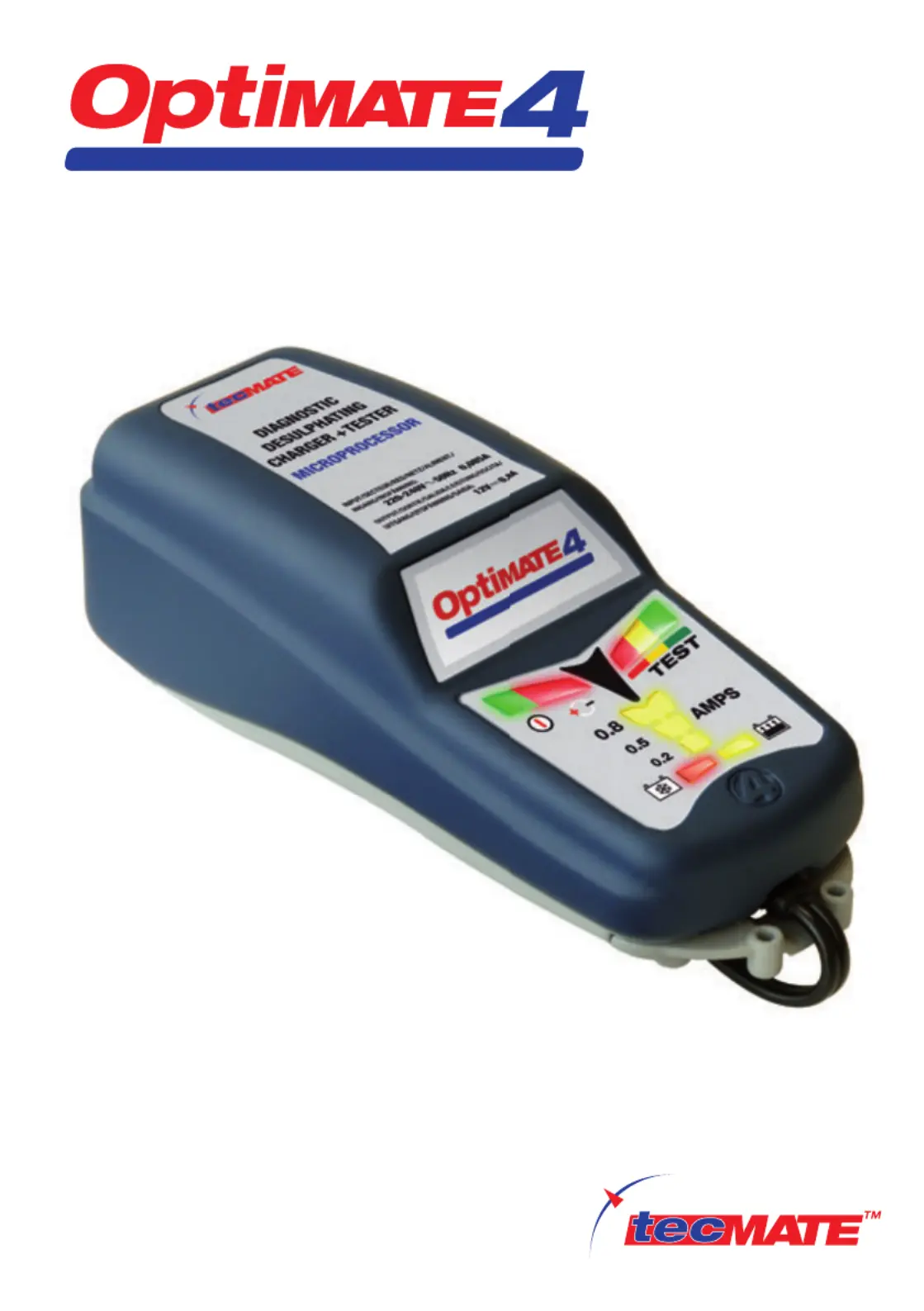

Automatic charger for 12V lead/acid batteries
™

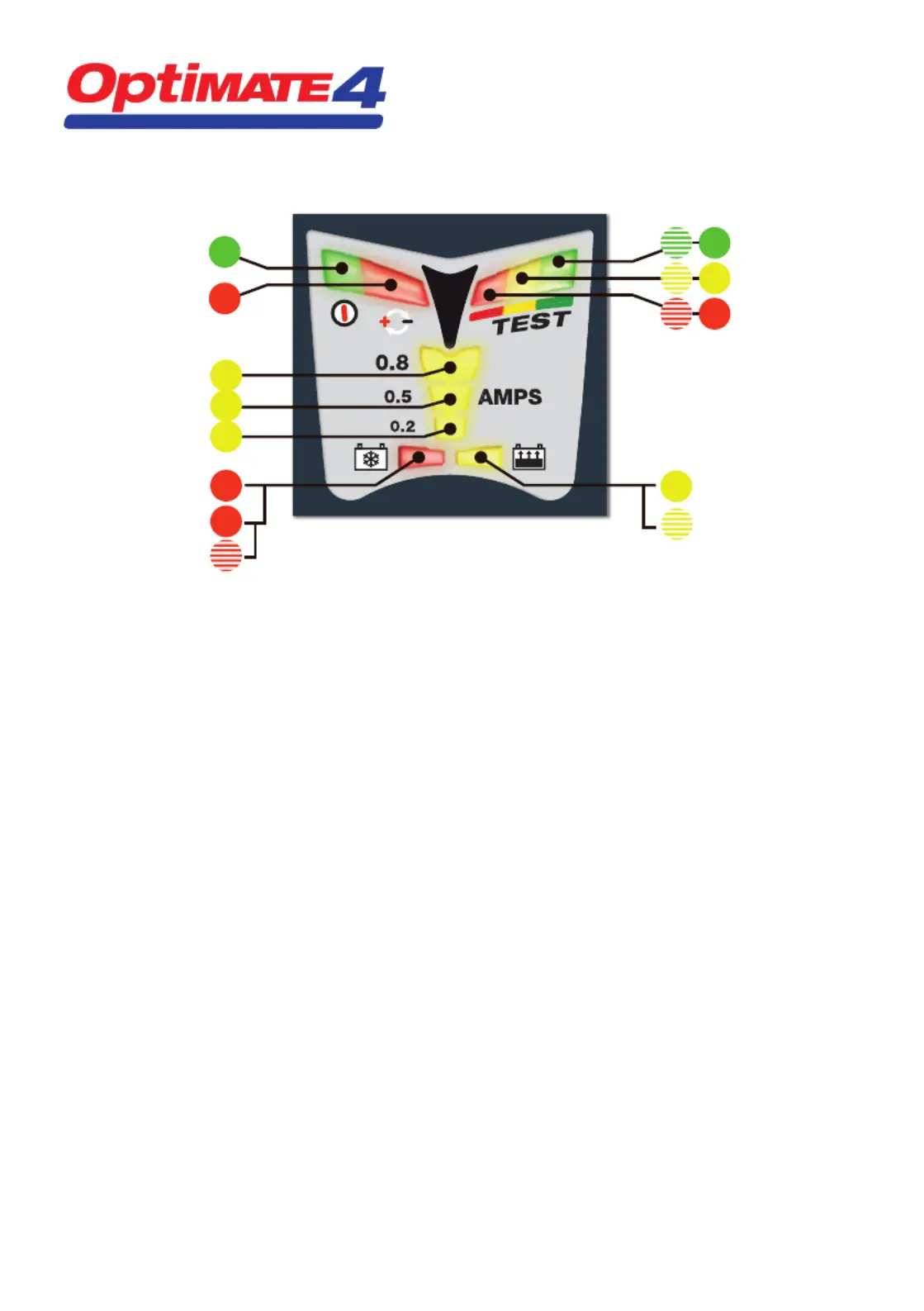

QUICK GUIDE – LED INFORMATION PANEL
Full details on any LED or step can be found in the manual under the same #
1. LED #1 - Power on. This LED confi rms AC power supply to the charger.
All charge and test LEDs light briefl y to confi rm microprocessor health.
2. LED #2 indicates inverse polarity - wrong output connections. Swap around to activate output.
3. Circuit activation and recovery of deep-discharged, neglected batteries
3.1 ACTIVATION - If the battery voltage is above 2V, LED #3 lights briefl y to confi rm circuit activation.
For most batteries LED #3 goes out immediately and charge LED #4 comes on.
3.2 RECOVERY - For neglected or very fl at batteries, LED #3 remains on and indicates steadily.
3.3 TURBO RECOVERY - For a badly neglected battery TURBO RECOVERY engages and LED #3 fl ashes.
If step 3 has not concluded after 2 hours, step 4 engages automatically.
4. Charge and charge verifi cation
4.1 CHARGE: A steady LED #4 indicates the bulk charge stage.
4.2 VERIFICATION: LED #4 fl ashes while the circuit verifi es battery charge level.
If the battery requires further charging the programme reverts to CHARGE. Multiple reversions may occur.
These reversions will cause LED #4 to alternate between steady and fl ashing, irregularly.
When LED #4 has fl ashed continuously for 30 minutes (or if steps 3 + 4 have not concluded within 48 hours) step 5
engages and a voltage retention test starts.
5. 6. 7. Voltage retention tests alternating half-hourly with battery maintenance
5 For a good battery LED #5 fl ashes throughout the 30 minute test. NO CHARGE CURRENT.
6/7 Flashing #6 / #7 may replace #5 if the battery voltage falls during the test, or vice versa.
Read § 6 and 7 in the main manual if either or both LEDs #6 and #7 indicate in this period.
Maintenance - fl oat charge at a safe voltage limit to counter self-discharge.
During the 30 minute maintenance charge periods, whichever LED(s) #5 / 6 / 7 was/were fl ashing at the end
of the TEST now indicate steadily. The battery can draw current as required to support small loads and counter
selfdischarge.
Maintenance and voltage retention test periods continue alternating half-hourly until the battery is disconnected.
The test result is updated during each subsequent test.
8. 9. 10. CHARGE CURRENT LEDs
8 LED #8 (0,2A) could indicate if LED #3 (DESULFATE) is on or if LED #4 (CHARGE) is fl ashing.
9 LED #9 (0,5A) is normally on during the early part of the charge verifi cation with LED #4 fl ashing.
10 LED #10 (0,8A) should indicate together with a steady LED #4 (CHARGE) during bulk charge.
If any LEDs #8/9/10 are on and any LEDs #5/6/7 are also on, read “note” in manual after §10.
On battery disconnection, all CHARGE and TEST LEDs light just briefl y to confi rm microprocessor reset.
7 7
10
9
8
3.1
3.2
4.1
4.2
6 6
5 5
2
1
TEST MAINTAIN
CHARGE
VERIFY
DESULFATE
ACTIVATE
CURRENT
3.3
