1

WARNING: Risk of Fire or Electric Shock

• Only authorized, qualied personnel should install this xture

and should follow the owner’s manual. Any improper installation

might cause failure, electric shock, re or other injury, damage

or hazard.

• Disconnect power before installation or any maintenance

of the xture.

• Do not make or alter any open holes in an enclosure of wiring

or electrical components during installation.

• Suitable for indoor installation to avoid false triggering due

to external factors such as rain, wind or tree swing.

• Rated for 120–277V use with min. 75˚ C supply wire.

IMPORTANT: This product must be installed in accordance with

the applicable installation code by a person familiar with the

construction and operation of the product and the hazards involved.

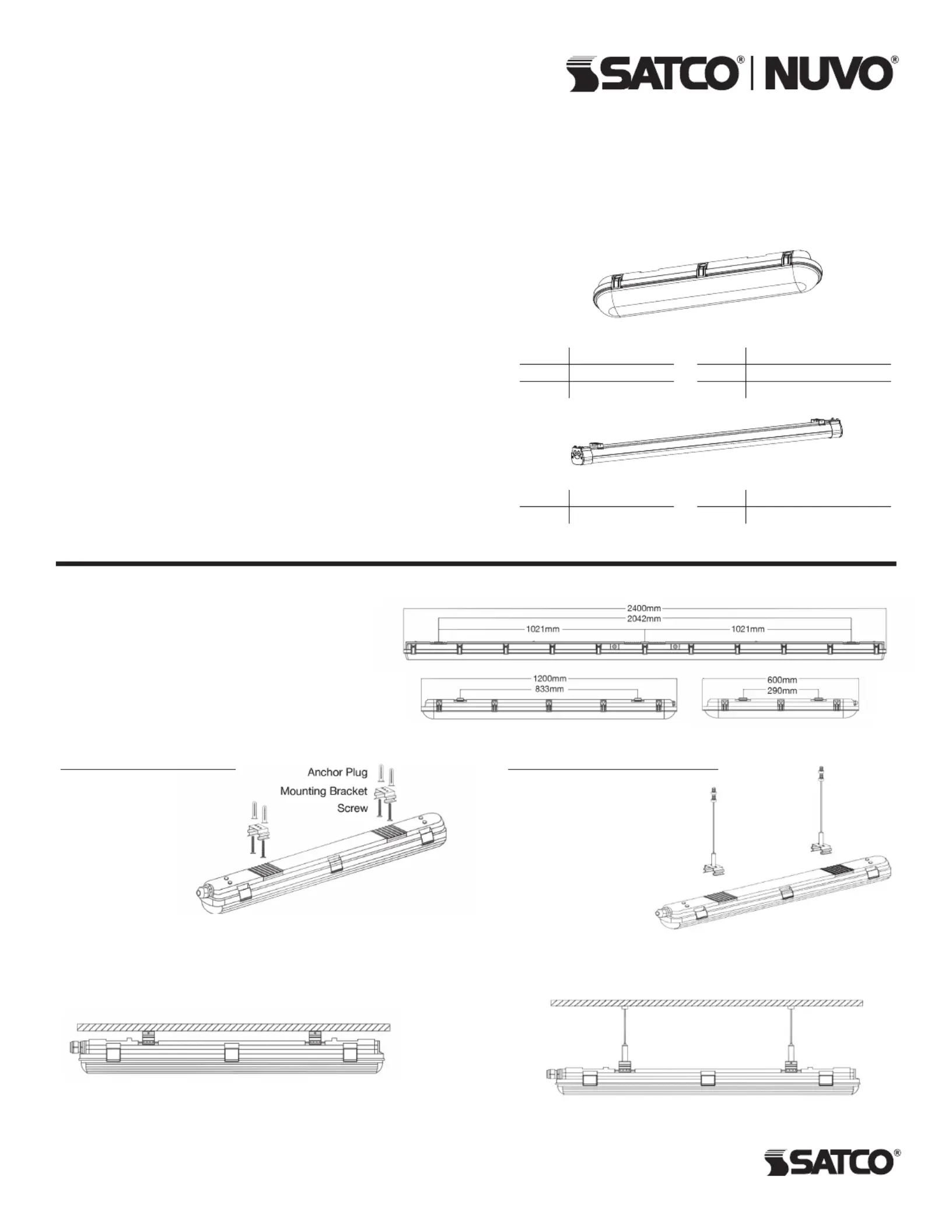

LED VAPOR TIGHT &

TRI-PROOF LINEAR FIXTURES

Models: 65-820, 65-821, 65-822, 65-823, 65-824, 65-825,

65-830, 65-831, 65-832, 65-833

Satco Products, Inc.

Brentwood, NY 11717

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing xture. Retain for future reference.

© Copyright 2021 Satco Products, Inc. 4/21

• Use appropriate hardware (supplied) to secure

the xture for surface or suspension installation.

• Recommended mounting bracket distances

for 2ft = 290mm, 4ft = 833mmm, 8ft = 2042mm,

with a tolerance of +/–10mm.

• Use size M6 to drill installation holes.

VAPOR TIGHT FIXTURE INSTRUCTIONS

Surface Installation

65-8202, 20W'

65-8214, 40W/50W/60W'

65-8228, 50W/60W/72W'

65-8232, 20W, w/Sensor'

65-8244, 40W/50W/60W, w/Senor'

65-8258, 50W/60W/72W, w/Sensor'

65-8302, 20W'

65-8314, 40W/50W/60W'

65-8322, 20W, w/Sensor'

65-8334, 40W/50W/60W, w/Sensor'

VAPOR TIGHT FIXTURES

TRI-PROOF FIXTURES

STEP 1: Mark the surface

using the recommended

mounting bracket distance.

Drill the holes and secure

mounting brackets with

screws provided.

Suspension Installation

(Suspension kit not included)

STEP 1: Mark the surface

using the recommended

mounting bracket distance.

Drill the holes and secure

the cables and mounting

brackets with screws

provided.

STEP 2: Attach xture to surface with the mounting

brackets.

STEP 2: Attach xture to suspension cables with the

mounting brackets.
