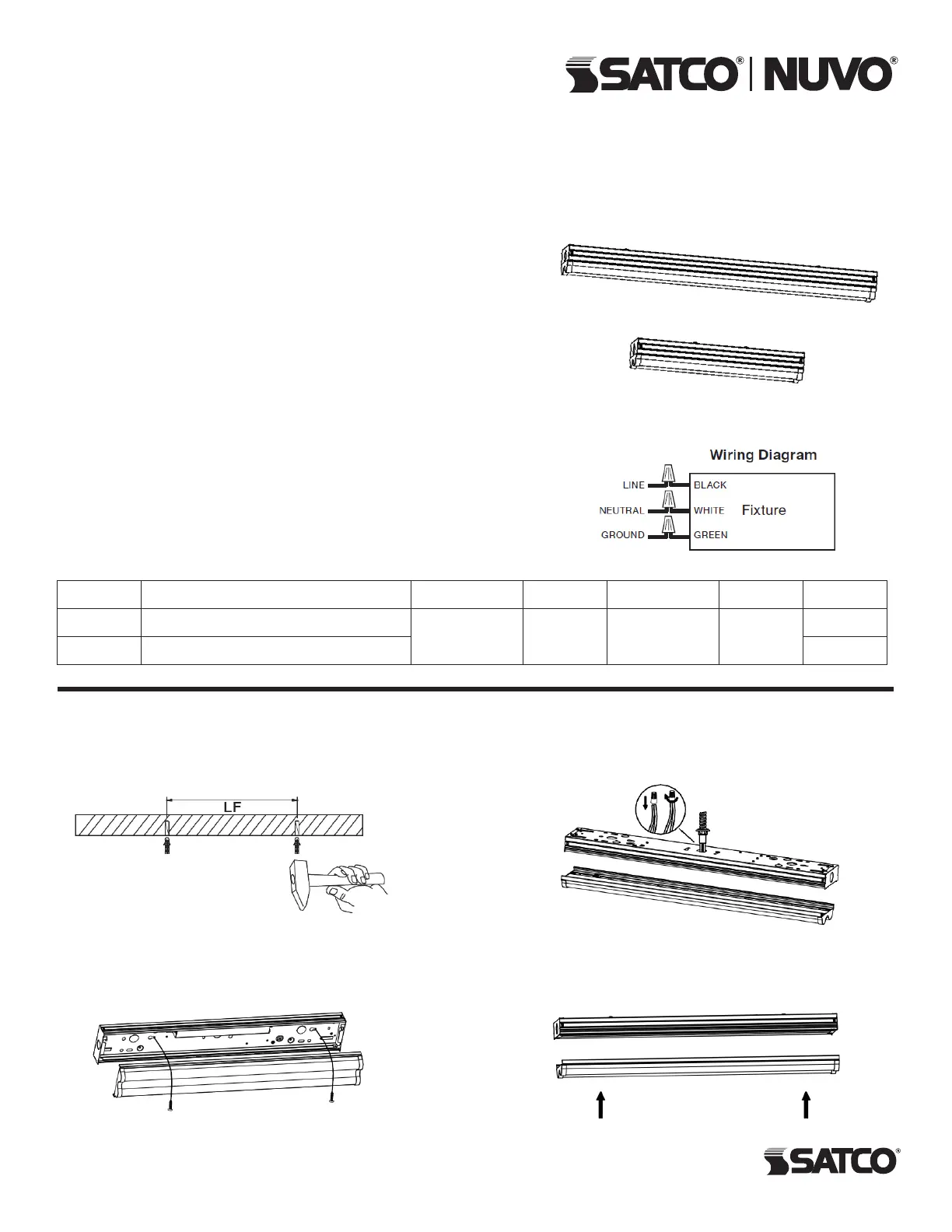

LED 2', 4'DOUBLE STRIP LIGHTS
Models: 65/1070, 65/1071
Satco Products, Inc.
Brentwood, NY 11717
INSTALLATION AND SAFETY INSTRUCTIONS
IMPORTANT: Read before installing xture. Retain for future reference.
© Copyright 2022 Satco Products, Inc. 2/22 v1.2
INSTALLATION – Surface Mount
STEP 1: Install appropriate anchors into the ceiling
or wall.
STEP 3: Secure xture backplate on to the wall
or ceiling using appropriate hardware.
STEP 2: Turn OFF the power and connect
wires by using wire nuts. See wiring diagram.
Item #DescriptionFinish/DetailsVoltsTemperatureCCTWatts
65/10702' DOUBLE STRIP WHITE 120-277V
WHITE120~277V-20°C to 40°C4000K
20W
65/10714' DOUBLE STRIP WHITE 120-277V43W
WARNING: Risk of Fire or Electric Shock
• To reduce the risk of re, electrical shock or injury to persons; read
and follow all warnings and installation instructions before installing.
• All installation should be performed by a qualied electrician.
• To avoid electric shock, ensure power is turned OFF before installation.
• All wiring must be installed in accordance with all Electrical Codes.
• To prevent product malfunction and/or electrical shock, this product
must be properly grounded.
• Please wear gloves before installation.
• Suitable for damp locations.
• Suitable for non-insulated surface and frame. DO NOT cover xture
with insulation liner or similar material.
• DO NOT install xture on unstable or easily breakable surface.
• DO NOT exert force on the surface of the xture.
65/1070 2' (610mm) W
2' LF= 16"
4' LF = 32"
1
)*+,-..(-991091/-,6(-*3:01+(/*,0(,:6(36/./*;(01(4-..5
1
<21*(=>>(,:6(90461(-*7(30**63,(4/16+(?@(2+/*;(4/16(*2,+5(
A66(4/1/*;(7/-;1-8(-?0B65
1
A63216(C/D,216(?-3E9.-,60*(,0(,:6(4-..(01(36/./*;(2+/*;(
-991091/-,6(:-174-165
1
F16++(,:6(30B61(294-17(-*7(.03E(/,(4/,:(C/D,216(+91/*;+5(
)*+,-..-,/0*(0C(C/D,216(/+(30896,65
65/1071 4' (1220mm) W
1
)*+,-..(-991091/-,6(-*3:01+(/*,0(,:6(36/./*;(01(4-..5
1
<21*(=>>(,:6(90461(-*7(30**63,(4/16+(?@(2+/*;(4/16(*2,+5(
A66(4/1/*;(7/-;1-8(-?0B65
1
A63216(C/D,216(?-3E9.-,60*(,0(,:6(4-..(01(36/./*;(2+/*;(
-991091/-,6(:-174-165
1
F16++(,:6(30B61(294-17(-*7(.03E(/,(4/,:(C/D,216(+91/*;+5(
)*+,-..-,/0*(0C(C/D,216(/+(30896,65
STEP 4: Press the cover upward and lock it with
xture springs. Installation of xture is compete.
