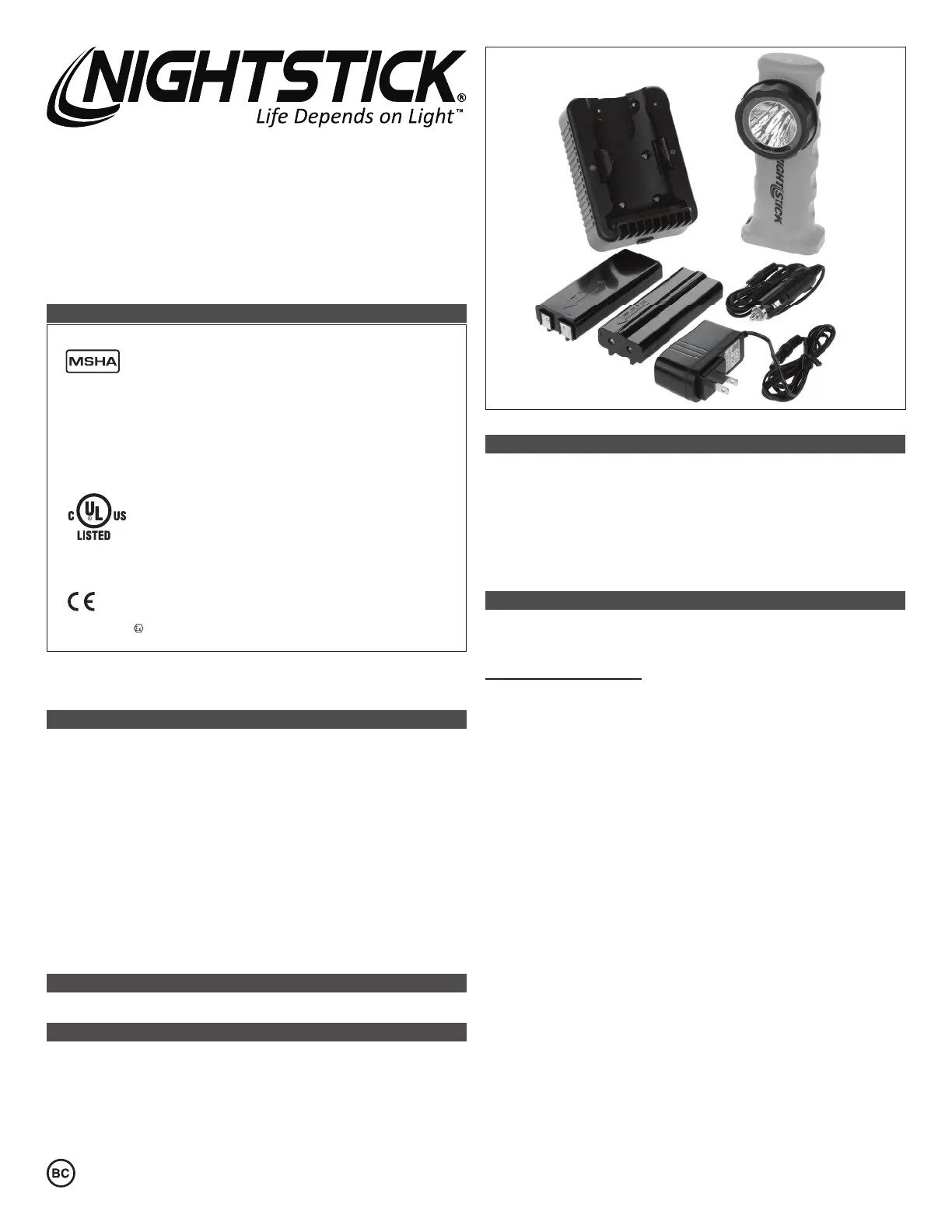

Instruction Manual

XPR-5572

US PATENT 9,713,217

Please read these instructions before using your Nightstick XPR-5572 Intrinsically

Safe Permissible Rechargeable Angle Light. They include important safety information

and operating instructions.

THE XPR-5572 IS APPROVED FOR USE

0359

E 467756

Ex ia FLASHLIGHT FOR USE IN HAZARDOUS LOCATIONS

UL listed for use with Bayco Li-ion Battery Pack

5572-BATT or Primary 5570-BATT Battery Pack

containing 6 AA Energizer Type EN91 or E91 batteries.

CLASS I DIV 1 GRPS A-D T4

CLASS II & III DIV 1 GRPS E-G

CLASS I ZONE 1 AEx ia IIC T4 Gb

CLASS II ZONE 20 IIIC

Ex ia IIC T4 Gb

Ex ia IIC T4 Gb

DEMKO 16ATEX1773

IECEx UL 16.0115

-20ºC ≤ Tamb ≤ +40ºC

3.7V/Cell

U

m

= 4.75V

II 2 G Ex ia IIC T4 Gb

Permissible Nightstick XPR-5572 Flashlight/Floodlight

APPROVAL No. 20-A150005-0

TESTED FOR INTRINSIC SAFETY IN METHANE-AIR MIXTURES ONLY

WARNINGS: Do not charge in hazardous location. MSHA approved for use with Bayco

Li-ion Battery Pack 5572-BATT or Primary 5570-BATT Battery Pack containing 6 AA

Energizer Type EN91 or E91 batteries. Replace the Battery Pack in fresh air only. Do not

mix batteries from different manufacturers or different types. Battery Pack to be replaced by

a qualified technician only. The Model Nightstick 5572 must not be opened in areas where

permissibility is required. Substitution of components may impair Intrinsic Safety.

ID 4001184

This product complies with Standards IEC 60079-0, 6th edition, EN 60079-0:2012 +

A11:2013, UL 60079-0 6th ed, CAN/CSA C22.2 No. 60079-0: 2015, IEC 60079-11, 6th

edition EN 60079-11:2012, UL 60079-11 6th ed, CAN/CSA C22.2 No. 60079-11:2014,

UL 913 5th edtion, and CAN/CSA C22.2 No. 157-92.

WARNINGS - INTRINSICALLY SAFE

yWARNING: Use only the approved Nightstick 5572-BATT Lithium-ion rechargeable

battery pack or the approved non-rechargeable batteries listed below.

yWARNING: To prevent ignition of a hazardous atmosphere, do not open the battery

compartment or attempt to exchange any of the supplied battery packs while in the

hazardous environment. This task must ONLY be performed in an area known to be

non-hazardous.

yWARNING: To prevent ignition of a hazardous atmosphere, the approved Nightstick

5572-BATT Lithium-ion rechargeable battery pack must only be charged in an area

known to be non-hazardous.

yWARNING: When using non-rechargeable batteries in the Nightstick 5570-BATT,

use only Energizer EN91 or Energizer E91 batteries.

yWARNING: To prevent ignition of a hazardous atmosphere, non-rechargeable AA

batteries must only be changed in an area known to be non-hazardous.

yWARNING: To reduce the risk of explosion, do not mix new non-rechargeable

batteries with used non-rechargeable batteries, or mix non-rechargeable batteries

from different manufacturers.

yWARNING: Substitution of components may impair intrinsic safety.

SPECIAL INSTRUCTIONS FOR INTRINSIC SAFETY

For personal safety, always con rm the rating of any known hazardous or potentially

hazardous location where the Angle Light is to be used.

STROBE WARNING

Exposure to strobing lights may cause dizziness, disorientation, and nausea. A very

small percentage of people suffer from photosensitive epilepsy and may experience

seizures or blackouts triggered by strobing lights. For more information from the

EPILEPSY FOUNDATION about photosensitivity and seizures, please visit

www.

epilepsy.com. Anyone who has had symptoms linked to this condition should consult a

doctor before using this product.

CAUTION

yRechargeable Lithium-ion batteries must be used and charged properly. Improper

use can result in serious injury,  re, or death.

yDo not leave the battery in direct sunlight or use or store the battery inside cars in

hot weather.

yDo not expose the battery to water or salt water, or allow the battery to get wet.

yDo not store the battery with metallic objects that may cause a short circuit.

yImmediately discontinue use of the battery if the battery emits an unusual smell,

feels hot, changes color, changes shape or appears abnormal in any way.

yKeep out of the reach of children.

MOUNTING THE CHARGER

WARNING: While the XPR-5572 Angle Light is certi ed as an Intrinsically Safe

Permissible product, the charger is NOT Intrinsically Safe. The charger MUST be

installed in a location far enough outside of the hazardous environment to ensure

that it can never come in contact with any potentially explosive materials.

Tools required for installation:

yA small level

yA hammer

yA small center punch or nail

yAn electric drill and drill bits to suit the wall material and anchoring method

yA #2 Phillips Head Screwdriver

yTorx Wrench (included)

The Nightstick 5572-CHGR1 wall/vehicle charger is designed to mount to any  at,

dry surface. The design of the charger will secure the Angle Light into the charger at

virtually any angle. As such, the charger can be mounted at any angle. For purposes of

these instructions, we will be mounting the charger vertically.

Included with the wall/vehicle charger are 4 - #8 x 32 x 1 ½” Pan Head Screws that

can be used to install the charger to virtually any surface however special mounting

requirements may require different hardware.

yTo install the charger, use the full-size DRILLING DIAGRAM TEMPLATE located

here in the instructions.

ySelect a location to install the charger making sure to check what is on the other side

of the mounting surface…no electrical wires, water lines, etc.

yThe other consideration for determining the mounting location of the charger is the

distance to the AC wall outlet or the 12v DC power outlet. Please check to make sure

that the appropriate Nightstick AC or DC Power Supply will reach the charger when it is

plugged in. Otherwise, relocate the charger’s installation location as needed.

yOnce the appropriate location has been selected, tape the template in place using blue

painter’s tape (or other non-marring tape) ensuring that the template is level.

yUse a hammer and a small center punch or nail to mark all 4 of the hole locations

through the template and then remove the tape and template.

yIf the charger is being installed onto drywall, you will need to install 4 - #8 Drywall

Anchors (included). Using a 1/4” drill bit, drill 4 holes through the drywall in the

locations of the nail marks. Using a #2 Phillips Head Screwdriver, install all 4 Drywall

Anchors into the drywall until they are each  ush with the surface.

NOTE: If the charger is being installed onto a metal surface, drill 4 appropriately

sized holes. The diameter of the drill bit required will be determined by the type of

metal and the thickness of the material.
