Bayco Products, Inc. • 640 South Sanden Blvd. • Wylie, TX 75098 • 1-800-233-2155 • 1-469-326-9400 • www.nightstick.com

INS-TWM-354-20

WARNING: IT IS IMPERATIVE THAT SAFETY MEASURES BE EMPLOYED AT

ALL TIMES WHILE HANDLING A FIREARM.

WATCH COMPLETE INSTALLATION VIDEO AT: HTTPS://YOUTU.BE/

JR8RP194DSG

INSTALL BATTERIES

Image 1

Image 2

Image 3

yOpen the Battery Door Screw using a Phillips head screwdriver. (Image 1)

yInsert the

included CR123 Batteries using the battery orientation markings on

the side of the light. (Image 2)

yRe-install the Battery Door Screw until fully tightened. (Image 3)

INSTALLING RPS CABLE ONTO THE TWM

Image 4

Image 5

Image 6

yInsert the connector of the RPS Cable into the mating connector on the Battery

Door of the TWM until it is fully inserted. (Image 4)

yScrew the Threaded Coupling Ring on the end of the RPS Cable onto the

external threads on the TWM Battery Door in a clockwise direction by hand until

it is fully tightened. CAUTION: Do not cross-thread, do not use any tools to

tighten ( nger tight only) or strip the screw threads. (Image 5)

INSTALLING THE TWM ON TO YOUR FIREARM

Your TWM comes with both cross rail inserts pre-installed in cross rail slots 1 & 4.

yIf the location of one or both of these is not correct for your speci c installation,

remove either or both of the inserts and then proceed to step 1.

yIf the location of the pre-installed inserts is correct for your  rearm, proceed

to step 3.

WARNING: DO NOT INSTALL THE TWM ONTO A FIREARM WITHOUT

USING THE CROSS RAIL INSERT. FAILURE TO USE A CROSS RAIL

INSERT COULD RESULT IN THE TWM COMING LOOSE FROM THE

FIREARM UNDER EVEN NORMAL RECOIL.

STEP 1: DETERMINE WHICH CROSS RAIL INSERT SLOT TO USE

Image 7

Image 8

Image 9

yHold the TWM alongside the Picatinny rail on your  rearm and determine which

of the 4 Cross Rail Insert Slots milled into the top of the TWM is best suited for

your  rearm. (Image 6)

yA single Cross Rail Insert can be installed in any of the 4 Cross Rail Insert Slots

milled into the top of the TWM.

ySlots 1, 3 & 4 (Image 7) are set up at a standard 1913 spacing, meaning that

all 3 will line up with a Mil-STD-1913 Picatinny Rail. If the desired installation

location on your  rearm will allow it, both of the 2 included Cross Rail Inserts may

be installed in any combination of slots 1, 3 or 4. Using both of the Cross Rail

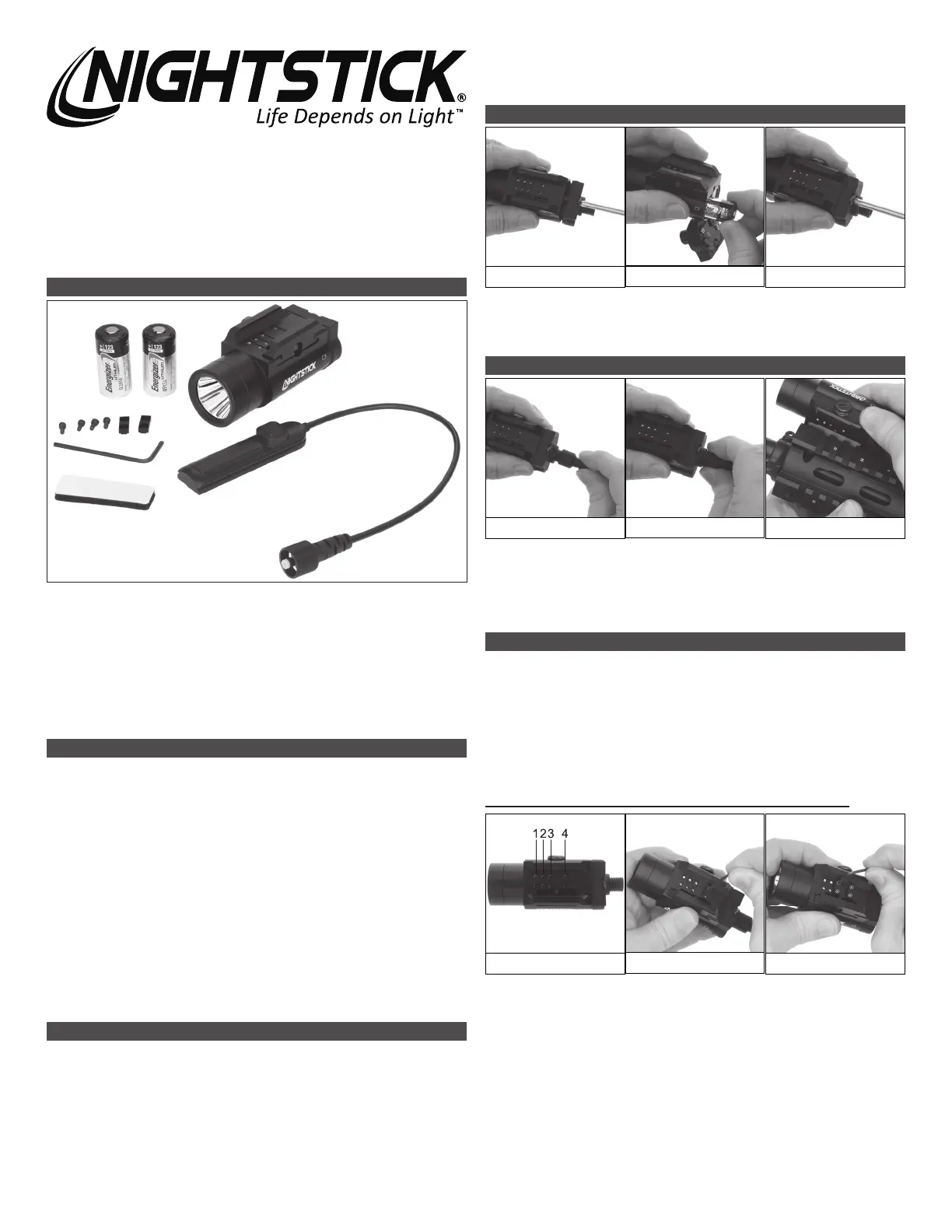

Instruction Manual

TWM-354

Please read these instructions before using your Nightstick TWM-354.

They include important assembly and operating instructions.

PACKAGE CONTENTS

y1 - TWM Weapon Mounted Light – Long Gun

y1 – TWM-RPS Remote Pressure Switch Cable

y1 – NS-PIC1 Picatinny Rail Mount for RPS Switch

y1 – 2-Part Velcro Pads w/ Pressure Sensitive Adhesive Strips

y1 – Alcohol Prep Pad

y2 - CR123 Lithium Batteries

y1 - Set of Cross Rail Inserts (pre-installed)

y4 - Cross Rail Mounting Cap Head Screws (pre-installed)

y1 - Allen Wrench

WEAPON SAFETY

PLEASE BE SURE TO READ, UNDERSTAND AND FOLLOW THESE SAFETY

AND OPERATING INSTRUCTIONS WHEN HANDLING A FIREARM OR THE

NIGHTSTICK TWM WHEN MOUNTED ON A FIREARM. FAILURE TO DO SO

CAN BE DANGEROUS AND COULD RESULT IN SERIOUS INJURY, DAMAGE

TO PROPERTY, OR DEATH.

Use of a  rearm under any circumstance is inherently dangerous. SERIOUS

INJURY OR EVEN DEATH may result without proper training in the safe handling

of  rearms. Proper training should be obtained from an accredited  rearms safety

program conducted by a quali ed instructor.

Read, understand and follow all of the safety instructions that came with your

 rearm before attaching your new TWM.

yAlways assume every  rearm is loaded and treat that  rearm as such.

yNever point a  rearm at anything that you are not willing to destroy.

yNever service your  rearm or your TWM when mounted on a  rearm without

 rst activating the weapon’s safety (if applicable), removing the magazine,

opening the action and physically and visually inspecting to make sure that no

ammunition is installed in the  rearm.

BEFORE ATTACHING, INSPECTING OR SERVICING THE TWM

yEngage the safety on the  rearm (if applicable).

yRemove the magazine from the  rearm (if applicable).

yOpen the action and visually and physically inspect the chamber to be sure it

is empty.

yKeep the barrel pointed in a safe direction at all times and never place your

hand in front of the muzzle.
