Unpacking

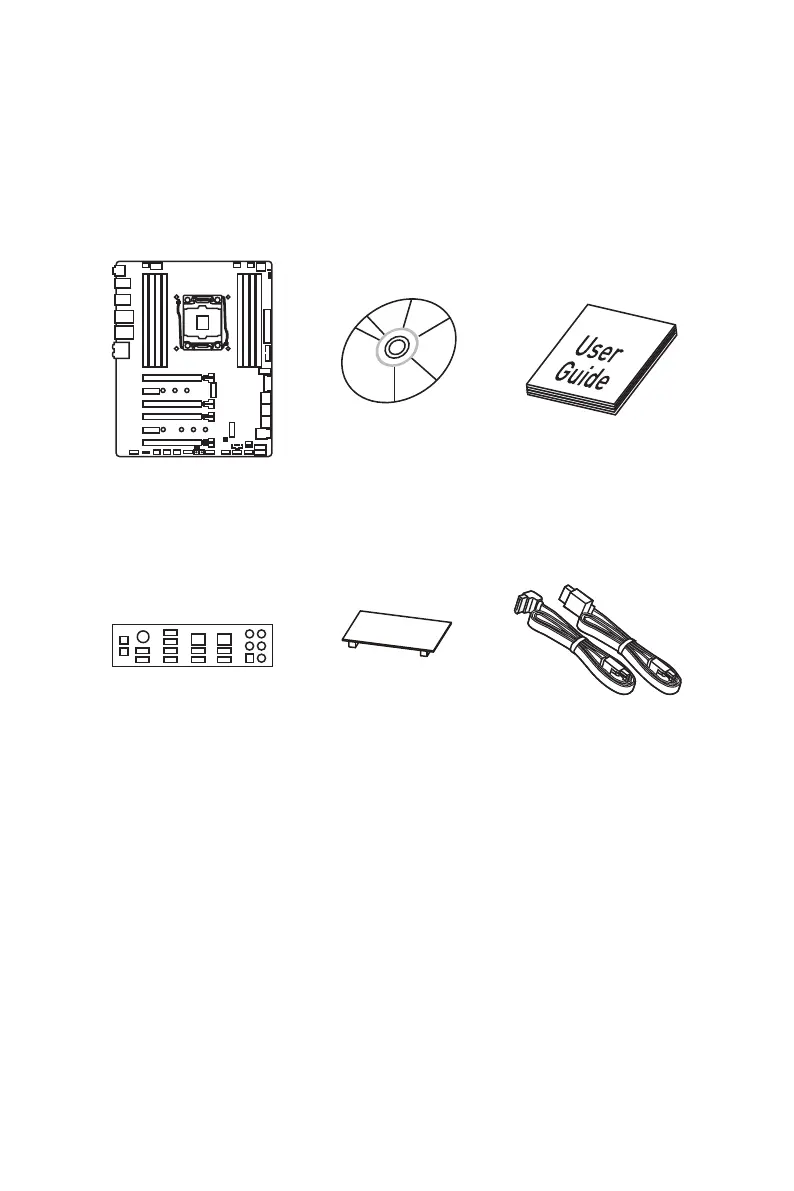

Thank you for buying the MSI

X299 SLI PLUS motherboard. Check to make sure your

motherboard box contains the following items. If something is missing, contact your

dealer as soon as possible.

SATA Cable x2

SLI Bridge

Connector

Drivers & Utilities

Disc

Motherboard User

Guide

I/O Shield

Motherboard

Safety Information

y The components included in this package are prone to damage from electrostatic

discharge (ESD). Please adhere to the following instructions to ensure successful

computer assembly.

y Ensure that all components are securely connected. Loose connections may cause

the computer to not recognize a component or fail to start.

y Hold the motherboard by the edges to avoid touching sensitive components.

y It is recommended to wear an electrostatic discharge (ESD) wrist strap when

handling the motherboard to prevent electrostatic damage. If an ESD wrist strap is

not available, discharge yourself of static electricity by touching another metal object

before handling the motherboard.

y Store the motherboard in an electrostatic shielding container or on an anti-static pad

whenever the motherboard is not installed.

y Before turning on the computer, ensure that there are no loose screws or metal

components on the motherboard or anywhere within the computer case.

y Do not boot the computer before installation is completed. This could cause

permanent damage to the components as well as injury to the user.

y If you need help during any installation step, please consult a certified computer

technician.

y Always turn off the power supply and unplug the power cord from the power outlet

before installing or removing any computer component.

y Keep this user guide for future reference.

y Keep this motherboard away from humidity.

y Make sure that your electrical outlet provides the same voltage as is indicated on the

PSU, before connecting the PSU to the electrical outlet.

y Place the power cord such a way that people can not step on it. Do not place anything

over the power cord.

y All cautions and warnings on the motherboard should be noted.

y If any of the following situations arises, get the motherboard checked by service

personnel:

 Liquid has penetrated into the computer.

 The motherboard has been exposed to moisture.

 The motherboard does not work well or you can not get it work according to user

guide.

 The motherboard has been dropped and damaged.

 The motherboard has obvious sign of breakage.

y Do not leave this motherboard in an environment above 60°C (140°F), it may damage

the motherboard.

Product specificaties

Merk:	MSI
Categorie:	Stopcontact
Model:	X299 SLI PLUS
Breedte:	305 mm
Diepte:	243 mm
Ethernet LAN:	Ja
Type stroombron:	ATX
Meegeleverde kabels:	SATA
Aantal USB 2.0-poorten:	4
Aantal Ethernet LAN (RJ-45)-poorten:	2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A:	4
Processor socket:	LGA 2066 (Socket R4)
Processorfabrikant:	Intel
Maximum intern geheugen:	128 GB
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C:	1
Audio-uitgangskanalen:	7.1 kanalen
Snelle installatiehandleiding:	Ja
Ethernet interface type:	Gigabit Ethernet
Chipset moederbord:	Intel® X299
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A:	1
Geheugen slots type:	DIMM
Audiochip:	Realtek ALC1220
Meegeleverde drivers:	Ja
S/PDIF-uitgang:	Ja
Geheugen kanaal:	Vierkanaals
PCI Express x16 (Gen 3.x) slots:	4
PCI Express x1 (Gen 3.x) slots:	2
PS/2 poort(en):	1
Component voor:	PC
LAN controller:	Intel I211, Intel I219V
Soorten RAID:	0, 1,5, 10
Aantal SATA III connectors:	8
Compatibele processors:	Intel Core i7, Intel Core i7 Extreme Edition
Ondersteunde geheugen types:	DDR4-SDRAM
Max. aantal SMP-processoren:	1
Moederbord chipset familie:	Intel
Moederbord form factor:	ATX
Aantal geheugenslots:	8
Supported memory clock speeds:	2133,2400,2667,2800,2933,3000,3200,3333,3400,3466,3600,3733,3800,3866,4000,4133,4200,4266,4400,4500 MHz
BIOS type:	UEFI AMI
Grootte BIOS-geheugen:	256 Mbit
ACPI version:	6.0
Ondersteuning voor parallel processing:	2-Way SLI, CrossFire
Aansluiting voor CPU koeler:	Ja
Aansluitingen voor behuizingsventilatoren:	4
ATX Power connector (24-pin):	Ja
Voorpaneel-connector:	Ja
USB 2.0 aansluitingen:	2
Aansluiting voor audiopaneel aan voorzijde:	Ja
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen:	2
TPM connector:	Ja
Chassis intrusion aansluiting:	Ja
EPS power connector (8-pin):	Ja
Clear CMOS knop:	Ja
Intel® Core i3/i5/i7/i9 series:	i7-3xxx, i7-4xxx, i7-5xxx, i7-6xxx, i7-7xxx
Clear CMOS jumper:	Ja
Intel® Extreme Memory Profile (XMP):	Ja
Aantal M.2 (M) slots:	2
Aantal montagegaten:	9
Thunderbolt-headers:	1
USB 3.2-connectoren (3.1 Gen 2):	1
