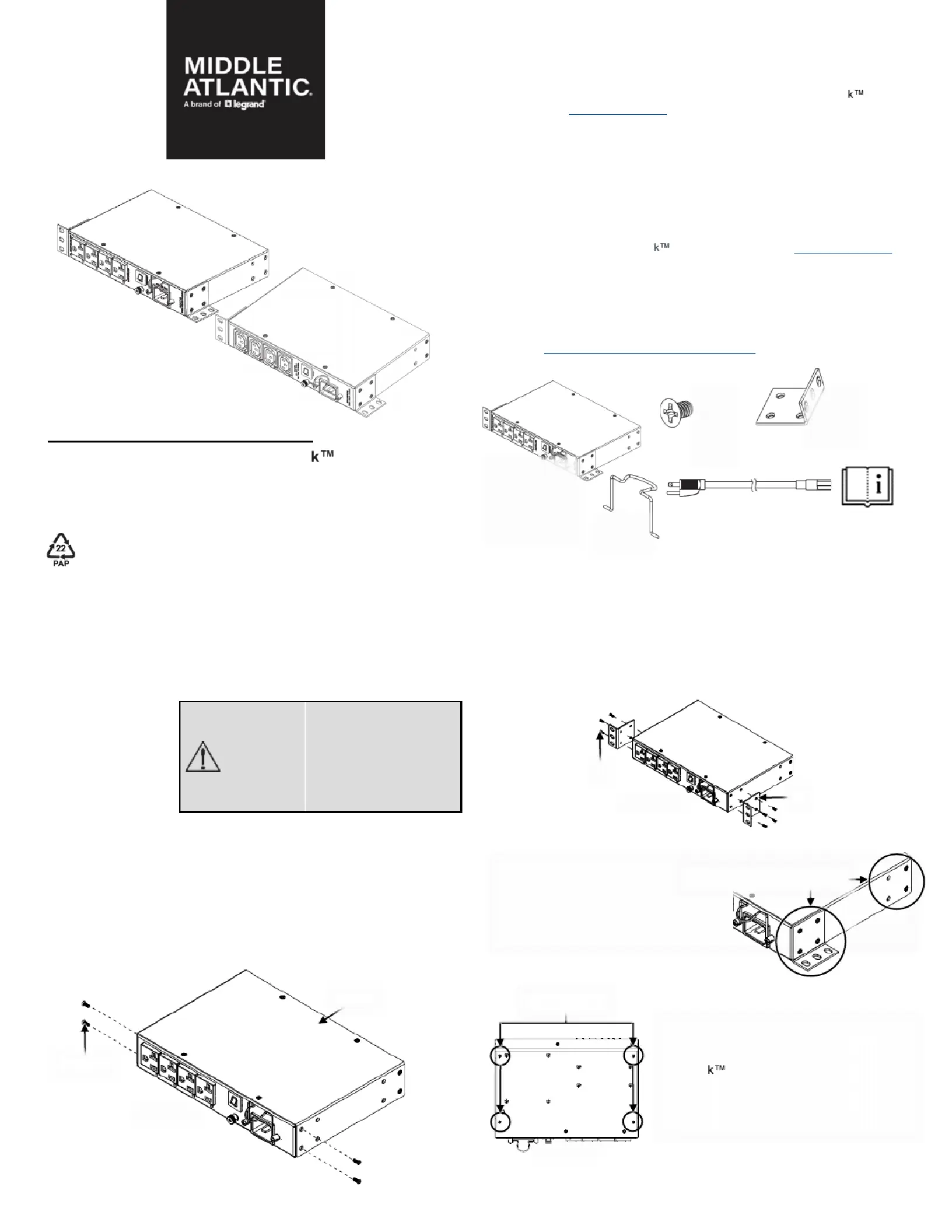

Setting Up Your RackLink Device

-2 -

-3 -

-4 -

IMPORTANT SAFETY INSTRUCTIONS—EN

SAVE THESE INSTRUCTIONS - This manual contains important instructions that should

be followed during installation and maintenance of the power distribution unit (PDU).

For complete safety instructions, refer to the Premium+ PDU with RackLinkUser Man-

ual (I-00826) at www.legrandav.com.

• Only use attachments and accessories specified by the manufacturer.

• Read all instructions before using the product.

INSTRUCTIONS IMPORTANTES SUR LA SÉCURITÉ–FR

CONSERVER CES INSTRUCTIONS - Ce manuel contient des instructions importantes

qui doivent être suivies lors de l’installation et de la maintenance de unité de distribution

d'énergie (PDU).

Pour obtenir des instructions de sécurité complètes, reportez-vous aux manuel d’utilisa-

tion Premium+ PDU with RackLinkUser Manual (I-00826) à www.legrandav.com.

• Utiliser uniquement les accessoires spécifiés par le fabricant.

• Lisez toutes les instructions avant d’utiliser le produit.

Supplied Components and Hardware

After carefully opening all product packaging, identify the supplied components and hard-

ware shown. If pieces are missing or damaged, please report it immediately to Technical

Support at av.middleatlantic.techsuppo[email protected] or (866) 977-3901.

Keep the original packaging in a safe place for future use.

NOTE:

• To order more hardware, contact support at av.support@legrand.com or (866) 977-

3901.

• Additional hardware is included that may not be required for your installation.

• #1 Phillips Screwdriver

Required Tools

WARNING

Use tools with caution and

follow all safety protocols.

AVERTISSEMENT

Utiliser des outils avec pru-

dence et suivre tous les

protocoles de sécurité.

Supplied Components and Hardware (Continued)

NOTE: Prepare the installaon site. Make sure the installaon area is clean

and not exposed to extreme temperatures or humidity. Allow sucient

space around the device for cabling and outlet connecons.

1.Use #1 Phillips screwdriver and remove (2x) pre-installed 5/16”

screws from both sides of the PDU (A) as shown. (FIGURE A)

NOTE: Mounting brackets

may be attached in front

or back of the unit and in

different orientations

to suit your specific

mounting needs.

(FIGURE C)

Compact Unit

NOTE: Outlet type varies

based on model

purchased.

A

(2x)

Mounting

Bracket

C

(4x)

5/16”

Phillips

Screw

B

Power Cord

NOTE: Cord provided varies

based on model purchased.

E

Quick

Start

Guide

Cord

Retainer

D

2.Use screwdriver, (2x) removed screws, and additional (2x) 5/16” screws

(B) to attach a mounting bracket (C) to each side of the unit as needed

(4x screws pre bracket). (FIGURE B)

A

Pre-Installed

Screws

FIGURE A

Setting Up Your RackLink Device (Continued)

C

B

FIGURE B

NOTE: You can even attach the PDU to

LeverLockplates using (4x) 6-32 screws

(not provided) in the threaded holes on the

bottom of the unit. (FIGURE D)

FIGURE C

Attach brackets in front or back

location and in desired orientation.

Threaded Holes

(PDU Bottom)

FIGURE D

Premium+ Series PDU with RackLink

Quick Start Guide

I-00864 Rev D
