INSTALLATION INSTRUCTIONS

99-5852CH

Metra. The World’s Best Kits.

®

MetraOnline.com © COPYRIGHT 2021 METRA ELECTRONICS CORPORATION REV. 6/22/21 INST99-5852CH

Attention!Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

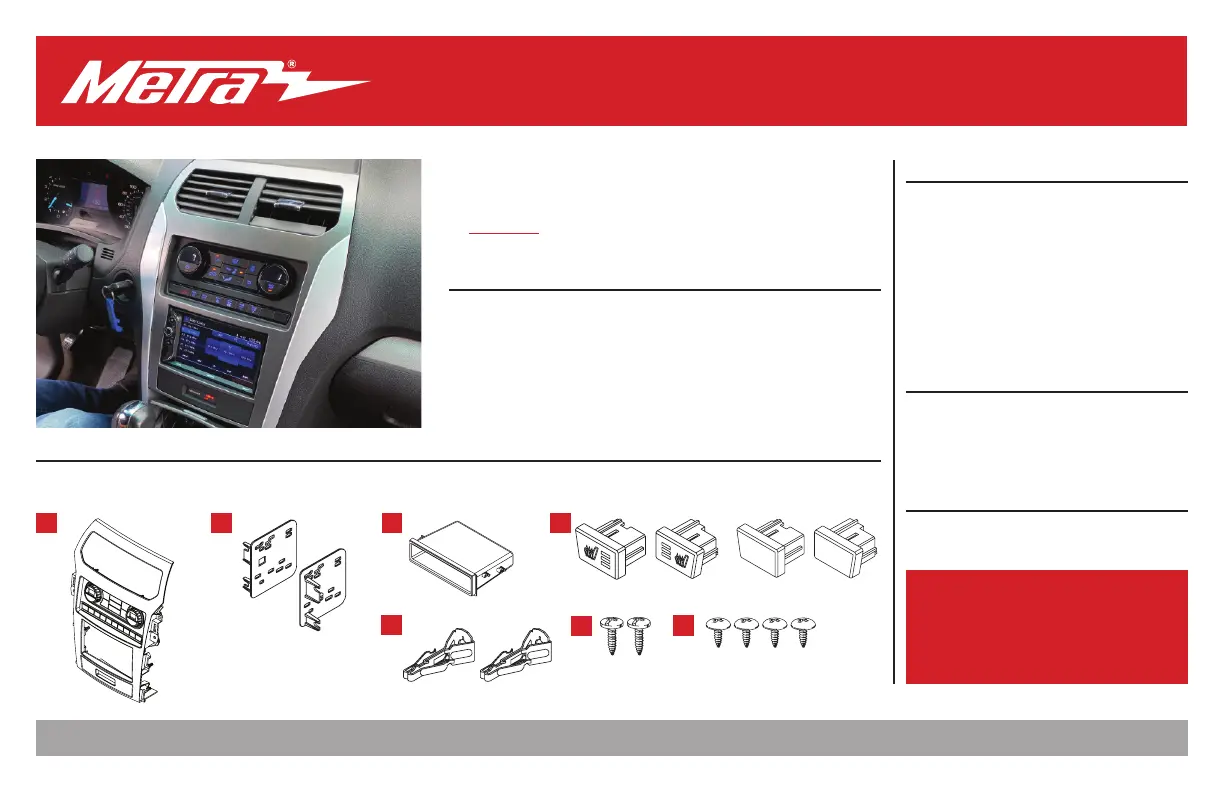

KIT FEATURES

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Included interface for climate and steering wheel functions

• Retains factory USB and back-up camera (if equipped)

• Painted charcoal with a matte black center

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets

• C) Pocket •

D) Heated seat buttons (L & R) Blank panels

• E) (2) Panel clips • F) (2) #4 x 1/2” Phillips

pan-head screws • G) (4) #8 x 3/8” Phillips truss-head screws • H) Wiring harness (not shown) • I) Antenna adapter (not shown)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32” socket wrench • Torx screwdriver

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Preparation .......................................................3

Kit Assembly

–ISO DIN radio provision with pocket ..................4

–ISO DDIN radio provision .....................................4

Axxess Interface Installation .............................5-11

Final Assembly .......................................................9

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Axxess interface built into kit

Antenna Adapter: Included with kit

Steering wheel control interface: Included with kit

ABC

E

Ford Explorer (

†

)2011-2015

†

With single zone, manual climate control

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle specific

applications

F

G

D
