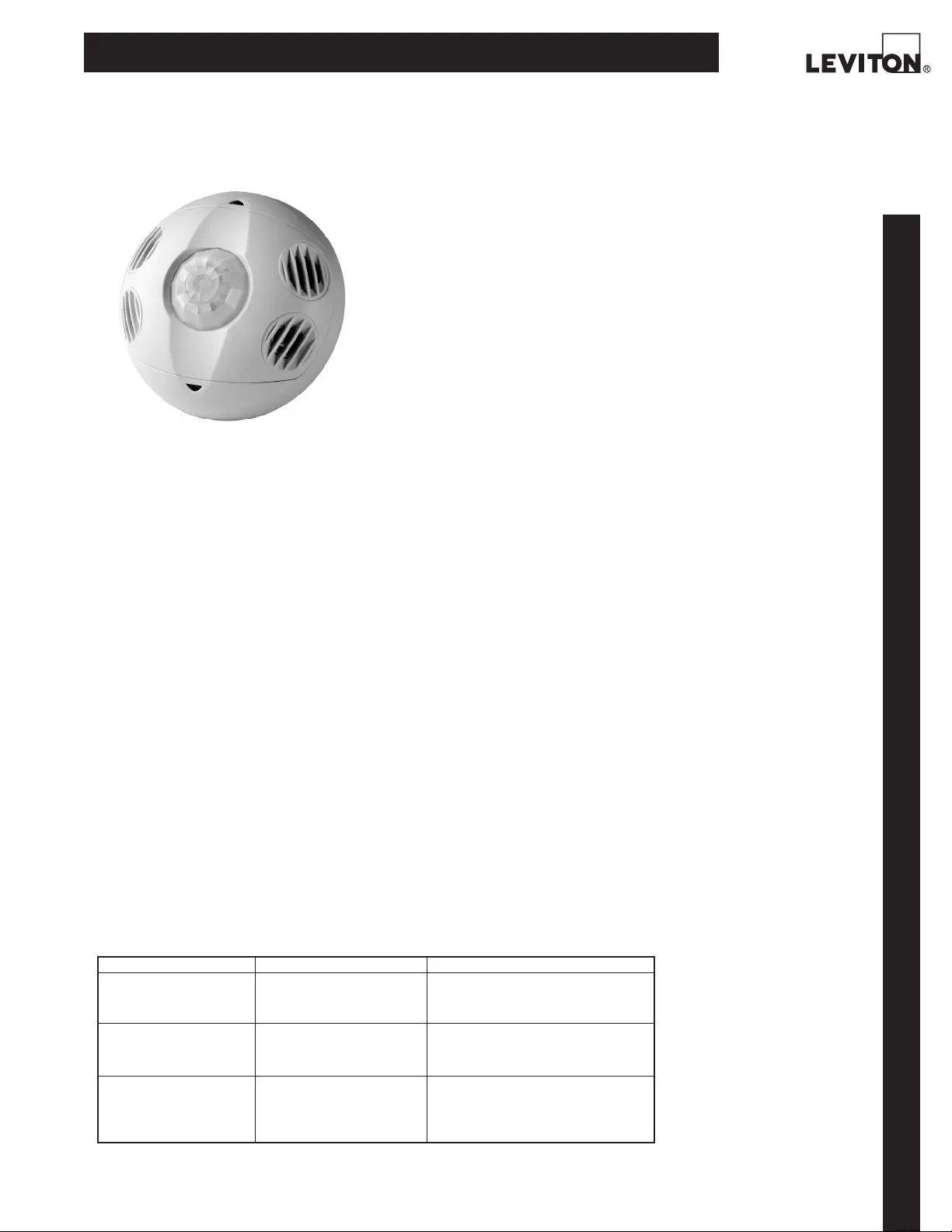

PRODUCT DATA

OSCxx-M0W

Multi-Technology Ceiling

Occupancy Sensor

GENERAL OPERATION

Occupancy sensors have two tasks: 1) Keeping the

lights ON while the room is occupied, and 2) Saving

energy by keeping the lights OFF while the room is

unoccupied.

Passive Infrared (PIR) is an excellent and precise

technology for initially turning the lights ON, but

lacks sensitivity for minor motion at distances.

Ultrasonic (U/S) technology provides maximum

sensitivity with continuous reflective high frequency

waves. This is optimal for keeping the lights ON.

Leviton’s multi-technology sensor combines the

benefits of both PIR and U/S technologies for

unrivaled performance and reliability.

APPLICATIONS

• Cafeterias • Classrooms

• Computer rooms • Conference rooms

• Day care centers • Filing rooms

• Workspaces • Open warehouses

• Offices with cubicles • Open areas

• Restrooms • Stairwells

• Storage rooms • Executive, open

and private offices

Timer Left In Test Mode - The

sensorremains in an 6 sec.

test mode.

False-On - The sensor

incorrectly turns the lights on.

False-O - The sensor

incorrectly turns the lights o.

An installer accidentally leaves

the sensor in the 6 sec. timer

test mode and the lights may go

o or on every 6 sec.

The sensor detectsmovement

in the corridor or hallway and

the room lights turn on.

The sensor does not detect

movement because an

occupant sits virtually

motionless at a desk and the

lights turn o.

The sensor automaticallyresets the timer

to 10 min . after 15 min of test mode.

After an initial movement is sensed,

if another movement is not sensed within

the timer setting then the delayed o time

setting is automatically reduced.

ConditionExampleSelf-Adaptive Reaction

If motion is sensed within a short period after

the lights go o, then the current delayed

o-time setting is increased.

HOW THE OSCxx-M AUTOMATICALLY ADAPTS

FEATURES

• Self-adjusting: internal microprocessor con tin u al ly

analyzes, evaluates and adjusts the sensitivity and

Leviton Manufacturing Co., Inc. Global Headquarters

201 North Service Road, Melville, NY 11747-3138 tech line 800-824-3005 fax 800-832-9538

©2023 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.

time delay. Performance is kept at a maximum and user

complaints are eliminated.

• Custom off-white color matched for shaded ceilings

• Fast, simple in stal la tion: easy ceiling mount, three wire con-

nec tion (low voltage) and twist-lock sensor attachment for

360° rotation and flexibility

• Maximum reliability, low cost: digital circuitry uses a

minimum of components

• Small motion sensitivity: the ultrasonic

tech nol o gy provides excellent small motion sensitivity

• Timer setting feature: automatic—30sec–30min. Test

mode—6sec with auto exit programming.

• Non-volatile memory: learned and adjusted settings

saved

in protected memory are not lost during power outages

• Walk-through: provides increased energy savings by

decreasing the time delay to 2.5min when someone

momentarily walks through the monitored space

• Wide coverage: units from 500 to 2,000 sq. ft. available

• Power base (OPB15) available for line voltage applications

• Ambient light recognition: a light sensor prevents lights

from turning on when the room is adequately lit by natural

light

• Ultrasonic (U/S) components: one or two U/S transducers

and one or two narrow bandwidth receivers each 16mm in

diameter. Frequency—Crystal controlled to ±.005%.

• Device: rug ged, high-im pact, in jec tion molded plas tic, off

-white. Col or coded leads 6” (16.24 cm).
