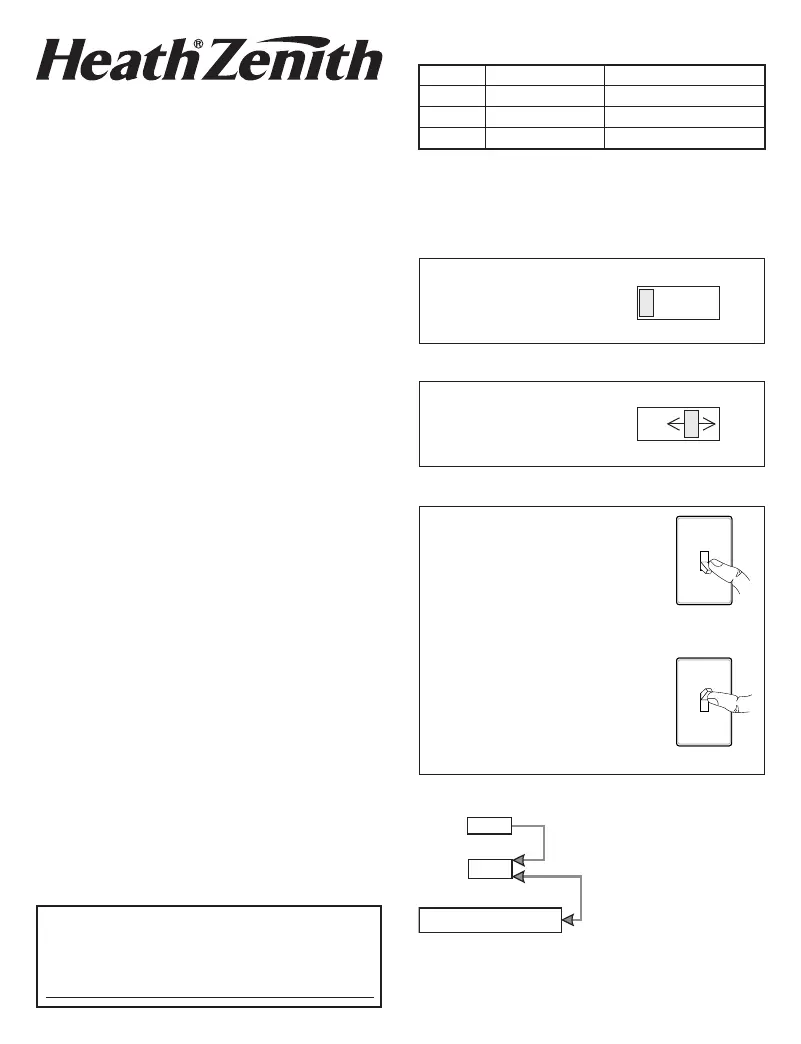

FEATURES

• Light comes on when motion is detected.

• Automatically turns light off.

• Photocell keeps the light off during daylight hours.

REQUIREMENTS

• The light control requires 120 volts AC.

• If you want to use Manual Mode, the control must

be wired through a switch.

• Some electrical codes require installation by

a qualified electrician.

Motion Sensing

Porch Light

This package includes:

• Porch Light

• Easy to use Universal Mounting Bracket

• Mounting Hardware

• Wire Nuts

• Lens Shield

Model 4305

© 2015 HeathCo LLC 204063-02A

OPERATION

Note:When first turned on wait about 1

1

/

2

minutes

for the circuitry to calibrate.

* resets to Auto Mode at dawn.

ON-TIME

Set the ON-TIME switch

on the sensor to TEST.

TEST1 5 10 MIN

TEST

Set ON-TIME switch to

1, 5, or 10 minutes.

AUTO

ON-TIME Switch at 1, 5, or

10 minutes

... back on.

1 Second

OFF then...

Manual mode only works at night

because daylight returns the sen-

sor to AUTO.

Flip the light switch off for one

second then back on to toggle

between AUTO and MANUAL

MODE.

Manual mode works only with

the ON-TIME switch in the 1, 5,

or 10 position.

MODE SWITCHING SUMMARY

Flip light switch off

for one second then

back on*

* If you get confused while switching modes, turn the

power off for one minute, then back on. After the cali-

bration time the control will be in the AUTO mode.

MANUAL MODE

AUTO

TEST

MANUAL MODE

ON-TIME

TEST 1 5 10 MIN

Before installation, record the model number

listed inside the fixture. Attach receipt in case

of possible warranty issues.

Model Number:

Mode:On-TimeWorks:DayNight

Test

5 Secondsxx

Auto

1, 5, or 10 Minx

Manual

To Dawn*x
