You have now completed the installation of your fixture,

enjoy.

You are now ready to mount the canopy to the (2a)

mounting plate connect all wires correctly G (1c). First

ground to ground, N neutral wire (white to white), L live

wire (black to black) with provided marettes from the (1b)

hardware package. Align the holes in the canopy (2a) to

the threaded holes in the mounting plate . Push the (1c)

canopy up towards the ceiling. Use the screws to (2b)

secure the canopy onto th mounting plate. Connect the

metal tube to the canopy by threading in clockwise.(2d)

Remove the fixture from its original packaging. Remove the

mounting plate from within the canopy by remov(1c)(2a)-

ing the metal tube and loosen the screws. Secure (2d) (2b)

the mounting plate to the junction box with the (1c)(1a)

screws (1d) provided in the hardware package.

INSTALLATION SHEET

CH10356

LED Chandelier

START FROM HERE

1.

3.

Please Note:

•All Kuzco LED fixtures come with pre-wired LED module(s).

• Unless instructed to do so, please do not touch any part of the LED module(s) as any

unnecessary contact with the module could cause permanent damage.

• For dimming, an ELV (Electronic Low Voltage) type of dimmer is required.

CAUN:TIO HEAVY FIXTURJUNCRCE, THE TIOOX EEE EIFON BNDBS TO RNED

BRNAANEFOE ISTLLTIO.

2.

Before you mount the canopy to the mounting plate (2a)

(1c)(2e) connect the rods together by threading clockwise

starting from the pendant up to the top. Attach the rods (3a)

(2e) (2c)with the fixture to the swivel connector by thread-

ing in clockwise.

4.

19054 28th Avenue Surrey, BC Canada V3Z 6M3

T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196

W: kuzcolighting.com

20181207

•

Make sure power is completely off at the fuse box.

•

Have your fixture installed by a qualified licensed electrician

•

Prepare everything in a clear area.

•

Wear gloves at all times during this installation.

•

Read instructions carefully before you start assembly.

•

Keep this instruction sheet for future reference.

Technical Support: 1-855-855-8926

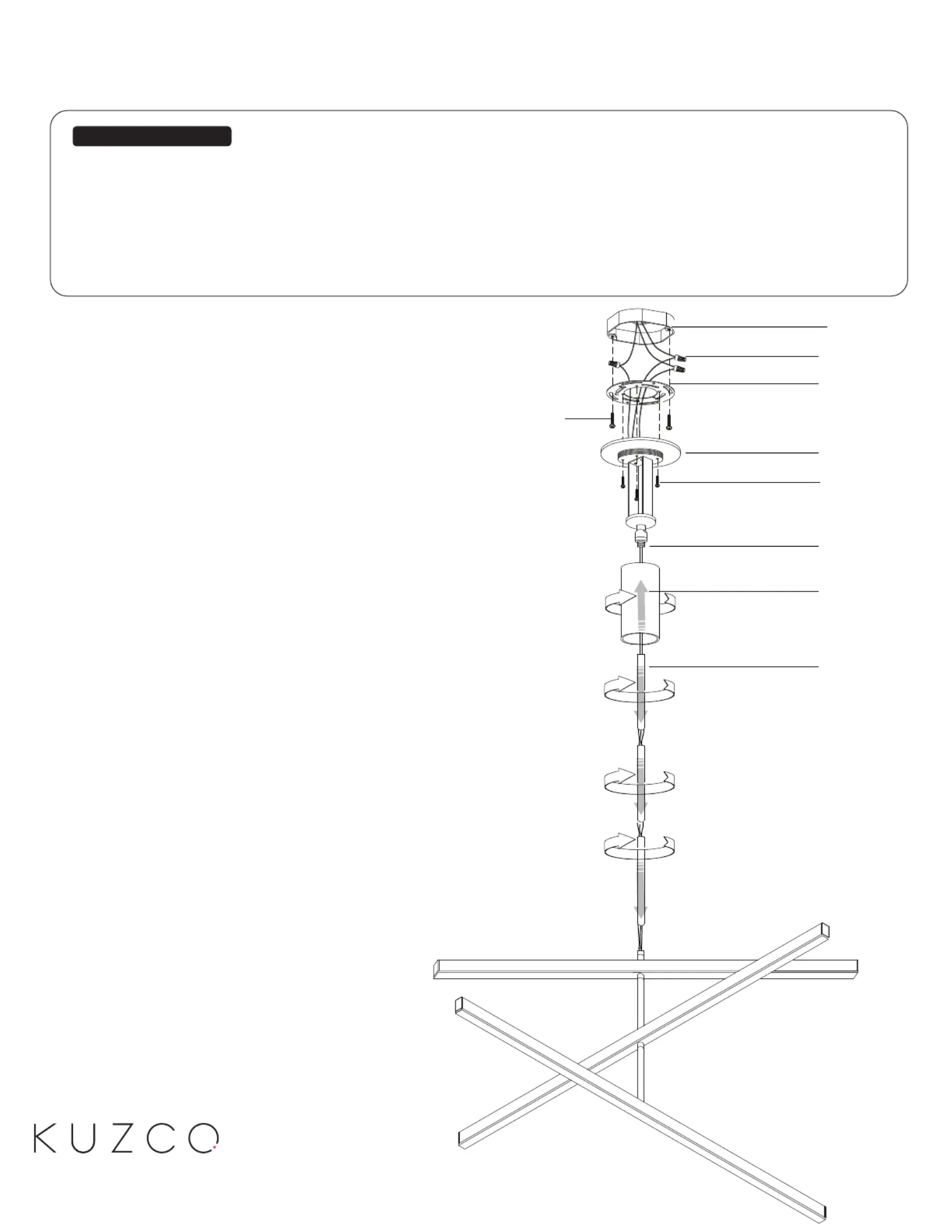

2d.

3a.

1a.

1b.

1c.

1d.

2a.

2c.

2e.

2b.
